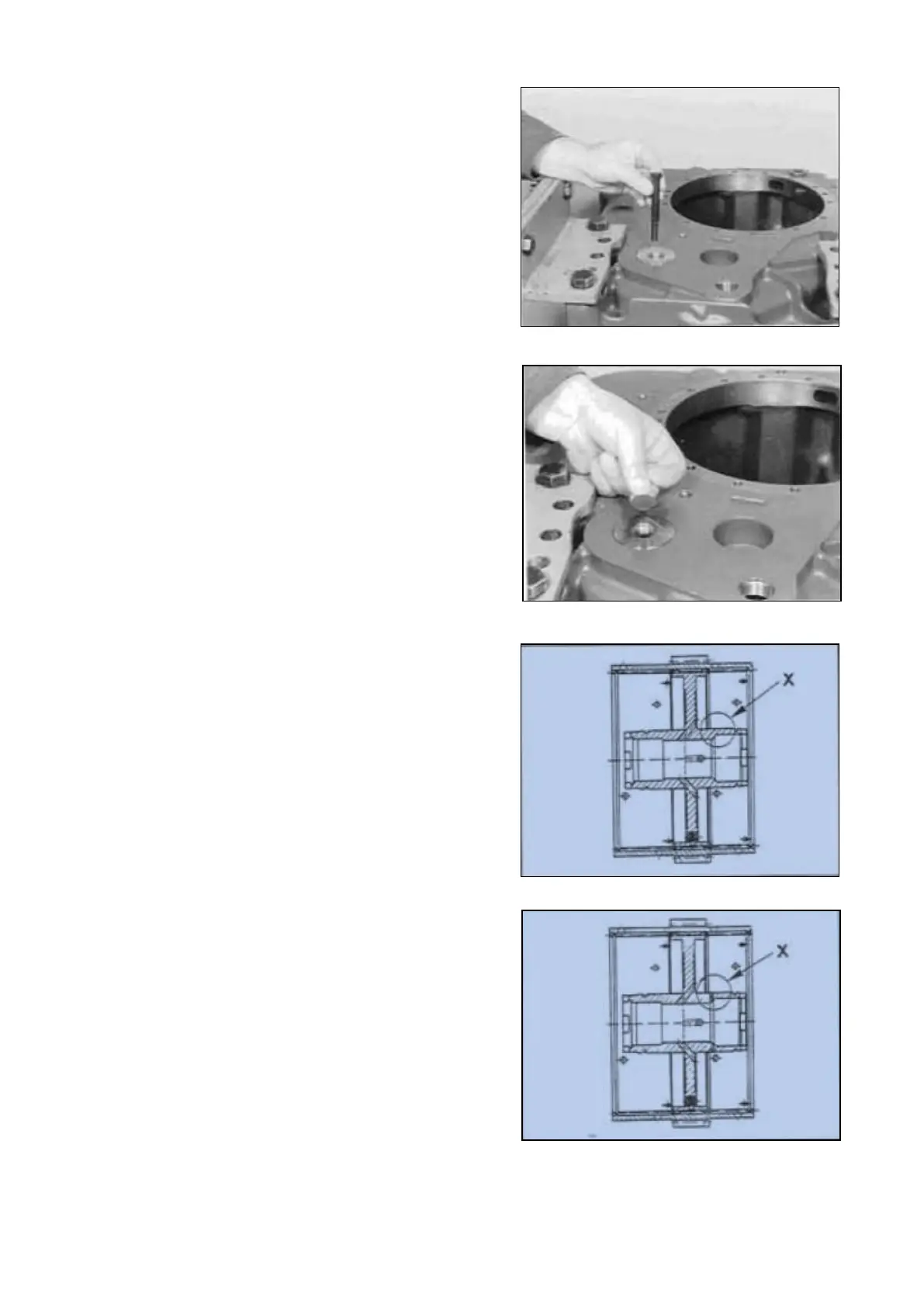

Fix the axle by means of socket head screw.
Torque limit (Ml2/10.9, DIN 7984) 80 Nm
NOTE :
Secure socket head screw with Loctite (Type-No.
242).
Install closing cover.
NOTE ;
Wet contact areas with Loctite (Type-No.270).
3.2.5 Clutch KR/K2
NOTE :
The pre-assembly of the plate carrier KR/K2 has to
be carried out accordingly like that of the plate
carrier K4/K3, see Page 116 and 117 .
ATTENTION :
Pay attention to the different plate carriers !
Plate carrier KR/K2 in the zone X without oil hole
(Figure 168).
Plate carrier KV/K1 in the zone X, with oil hole
(Figure 169).
Transmission and Torque Converter SPC000007
Page 131
