3.2.5.1 Plate pack KR

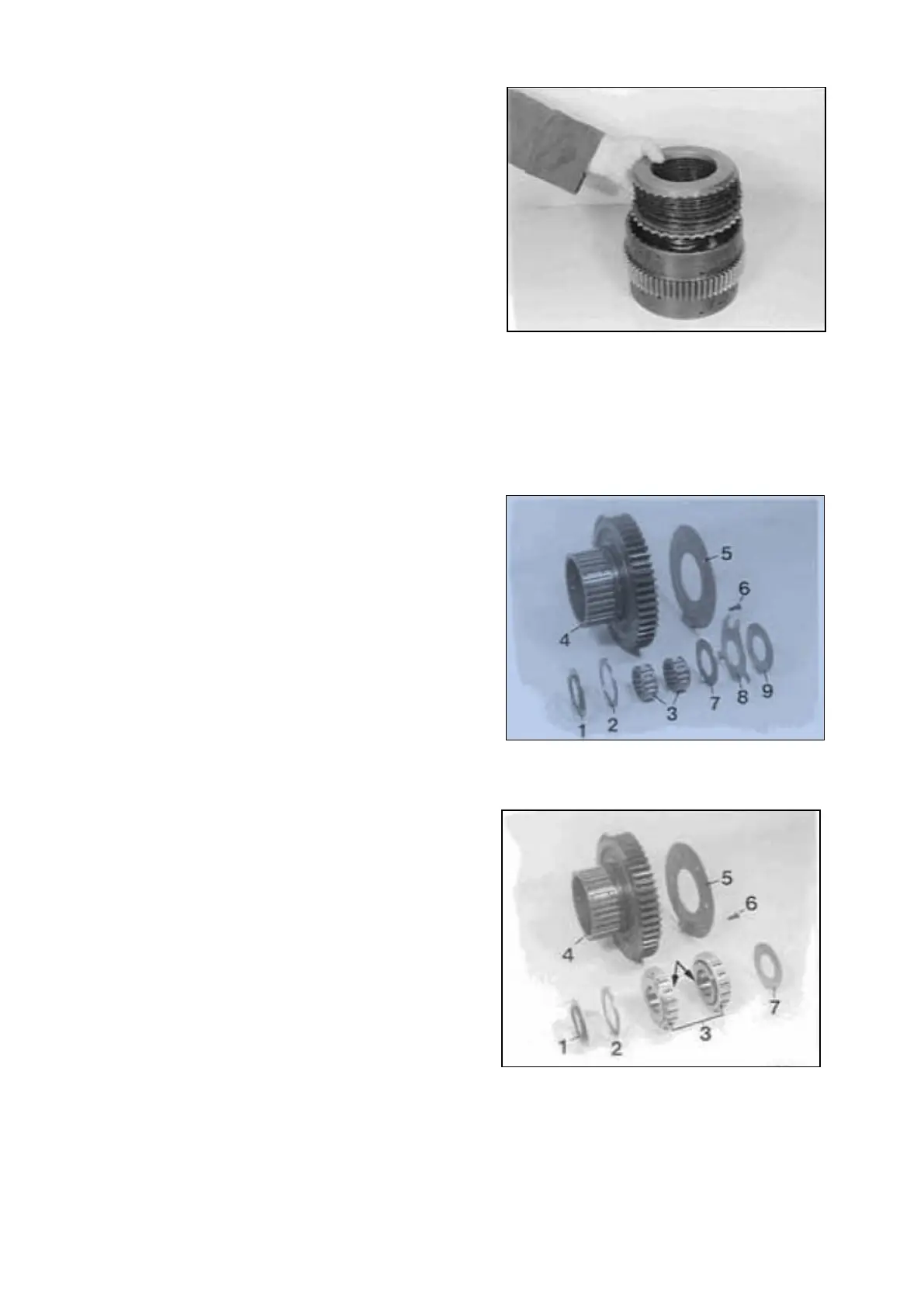

Install plate pack and check clearance.
NOTE :
Plate arrangement, see
Plate installation, Page 118 ... 122 !
3.2.5.2 Pre-assemble and install spur
gear KR
NOTE :
According to the Transmission Version, resp.
operating conditions, different spur gear bearings
arc possible, see corresponding
Spare Parts List, as well as Fig.171, 172a and 172b !
Spur gear bearing KR, Version "A" Fig. 171
1 = Thrust plate 7 = Thrust washer
2 = Thrust washer 8 = Forked washer
3 = Needle cage 9 = Shim (optional)
4 = Spur gear
5 = Plate
6 = Hex. head screws
NOTE :
Secure hex. head screws (M6/8.8 = 9,5 Nm)
with Loctite (Type-No. 270) !
Spur gear bearing KR, Version ―B" Fig. 172a
1 = Thrust plate
2 = Thrust washer
3 = Roller bearing (compl.)
4 = Spur gear
5 = Plate
6 = Hex. head screw
7 = Shim (optional)
NOTE :
Secure hex. head screws (M6/8.8 = 9,5 Nm)
with Loctite (Type-No. 270) !
Pay attention to the installation position of the
bearing inner races (oil grooves), see Arrows !
SPC000007 Transmission and Torque Converter
Page 132
