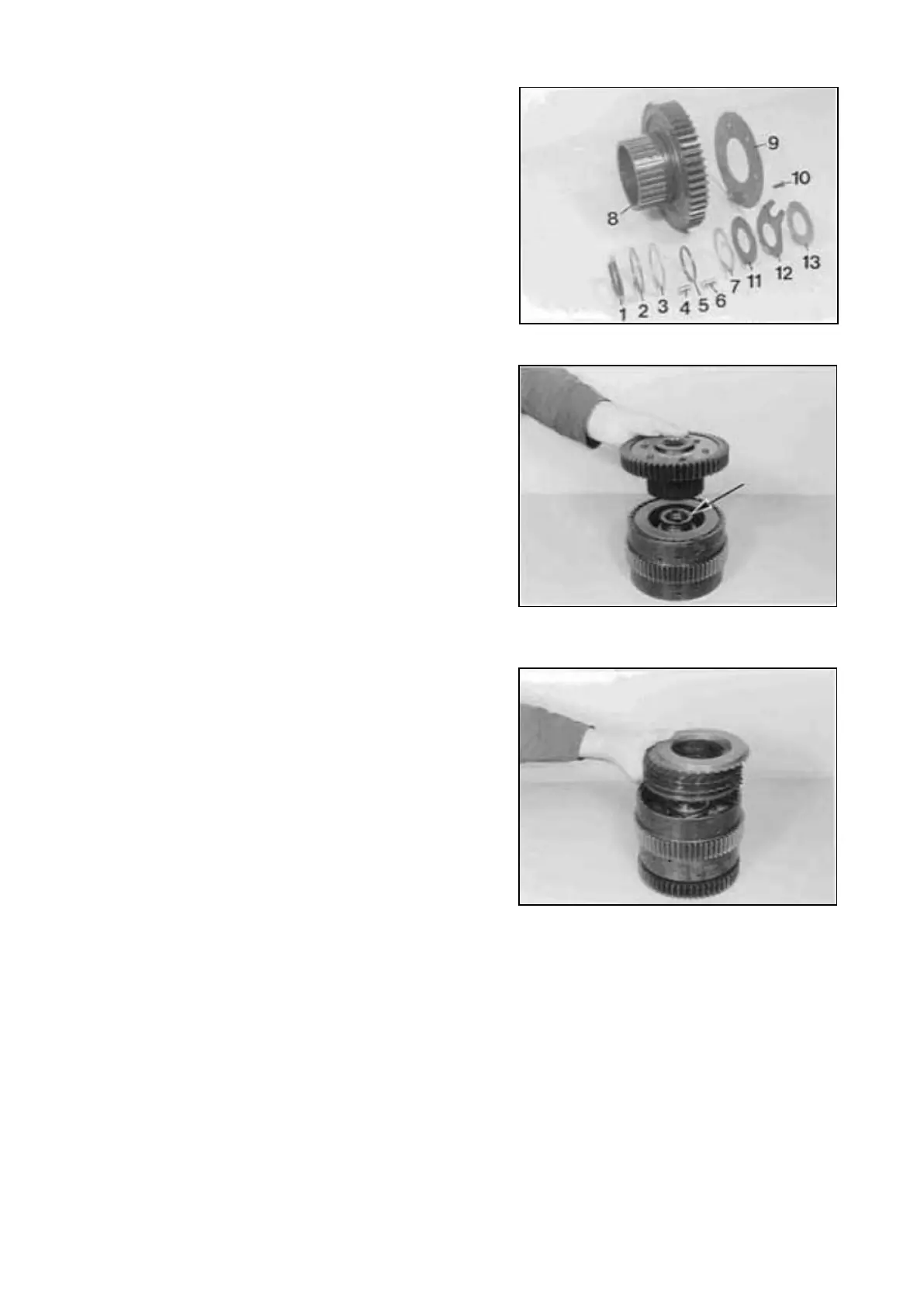

Spur gear bearing KR, Version ―C" Fig. 172 b)
1 = Thrust plate 8 = Spur gear
2 = Thrust washer 9 = Plate
3 = Thrust washer 10 = Hex. head scrcws
4 = Cylindrical rollers(short) 11 = Thrust washer
5 = Disk 12 = Forked washer
6 = Cylindrical rollers(long) 13 = Shim (optional)
7 = Thrust washer
NOTE :
Secure hex. head screws (M6/8.8 = 9,5 Nm)
with Loctite (Type-No. 270) !
Install components 2 ... 6 (Fig. 171 and 172 a)
resp. 2 ... 10 (Fig. 172 b).
Replace thrust plate 1 (Arrow) and thread up spur
gear until all inner plates are received.
NOTE ;
Make thrust washers and cylindrical rollers adhere
with grease !
3.2.5.3 Plate pack K2
Install plate pack and check clearance.
NOTE ;
Plate arrangement, see
Plate installation, Page 118 ... 122 !
3.2.5.4 Pre-assemble and install spur
gear K2
NOTE :
According to the Transmission Version, resp.
operating conditions, different spur gear bearings
are possible, see corresponding Spare
Parts List as well as the following Figures (175 and
176) !
Transmission and Torque Converter SPC000007
Page 133
To Next Page
