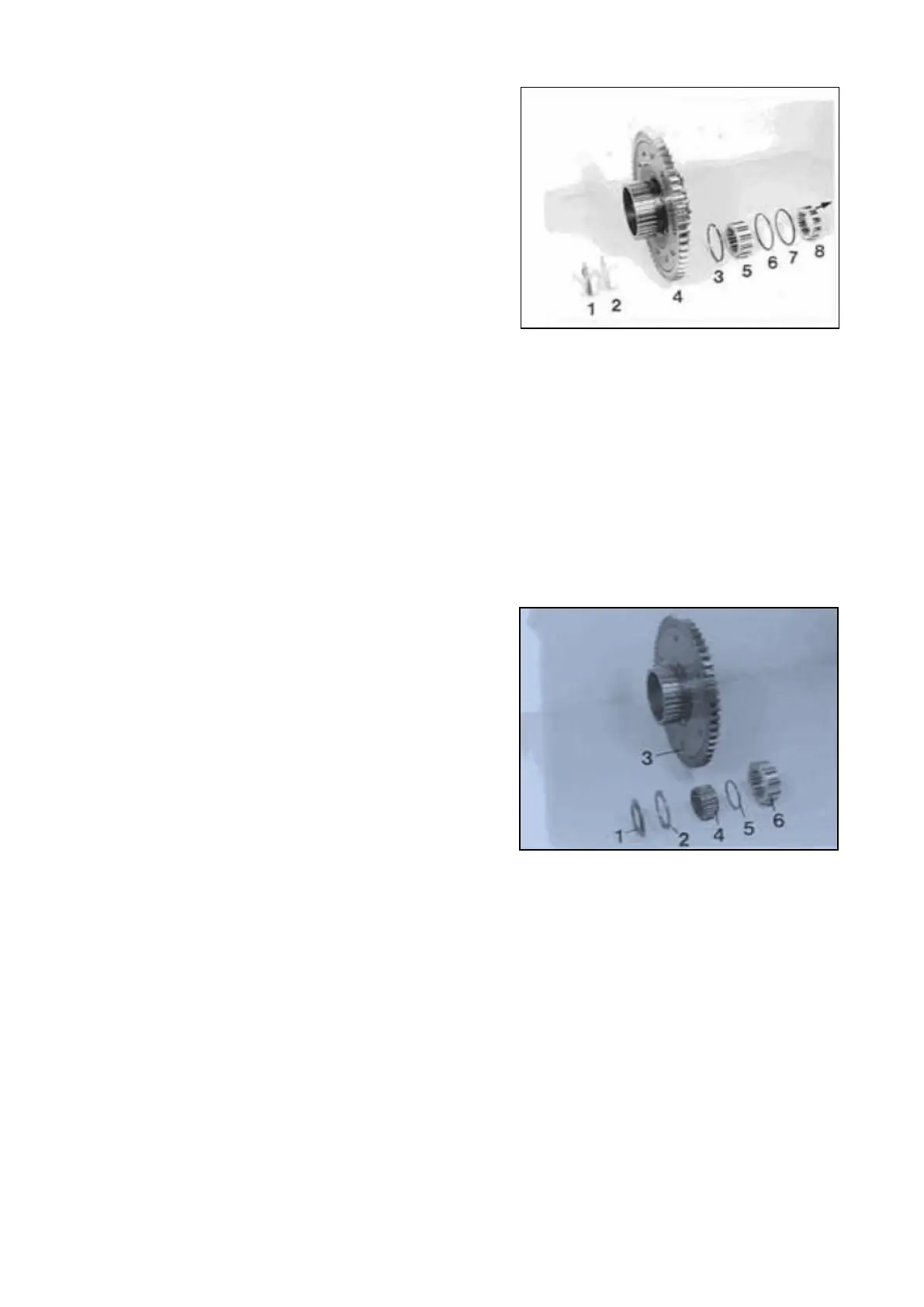

Spur gear bearing K2, Version "A" Fig. 175
1 = Thrust plate
2 = Thrust washer
3 = Angle ring
4 = Spur gear
5 = Roller cage (long)
6 = Angle ring
7 = Angle ring
8 = Roller cage (short)
NOTE :
Pay attention to the installation position of the roller
cage (8), the larger inner diameter of the brass cage
is showing outwards (Arrow) !
The broad butting faces of the angle rings are
always facing the bearing rollers !
Make thrust washer (2) adhere with grease !
Spur gear bearing K2, Version "B" Fig. 176
1 = Thrust plate
2 = Thrust washer
3 = Spur gear
4 = Needle cage
5 = Ring
6 = Roller cage
NOTE :
pay attention to the installation position of the roller
cage (5), the larger inner diameter of the brass cage
is showing outwards (Arrow) !
In case of an equal inner diameter, the installation
position is optional.
Make thrust washer adhere with grease !
SPC000007 Transmission and Torque Converter
Page 134
