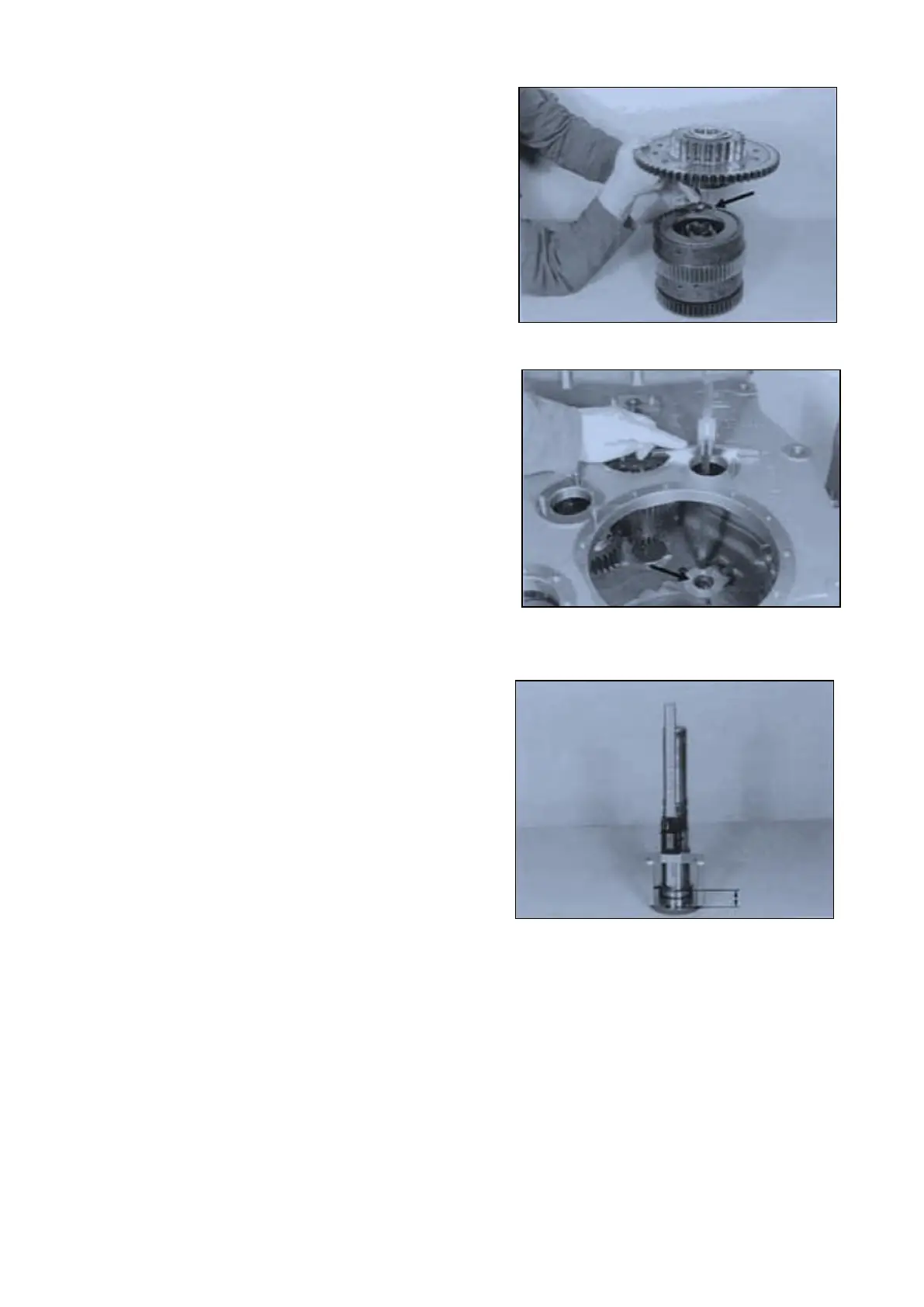

Install components 2 ... 8 (Figure 175), resp. 2 ... 6
(Figure 176).
Replace thrust plate 1 (Arrow) and thread up spur
gear until all inner plates arc received.
NOTE :
Make thrust washer adhere with grease !
3.2.5.5 Install clutch KR/K2
Adjust end play of the clutch 0,1 ... 0,3 mm
(Figure 178 ... Example ―H")
Insert forked washer and thrust washer (Arrow) and
measure Dimension from the flange mounted
surface to the thrust washer.
Dimension e.g. 252,20 mm
Now, remove forked washer and thrust washer
again.
NOTE :
In case of spur gear bearing KR, Version "B" (Figure
172 a), measure up to the plane surface/housing
(without forked washer and thrust washer) !
Measure Dimension II from the butting face/bearing
rollers to the flange-mounted surface.
Dimension e.g. 22,55 mm
Example ―F" for the determination of the housing
dimension
Dimension e.g. 252,20 mm
Dimension e.g. - 22,55 mm
Difference = Housing
dimension e.g. 229,65 mm
Transmission and Torque Converter SPC000007
Page 135
