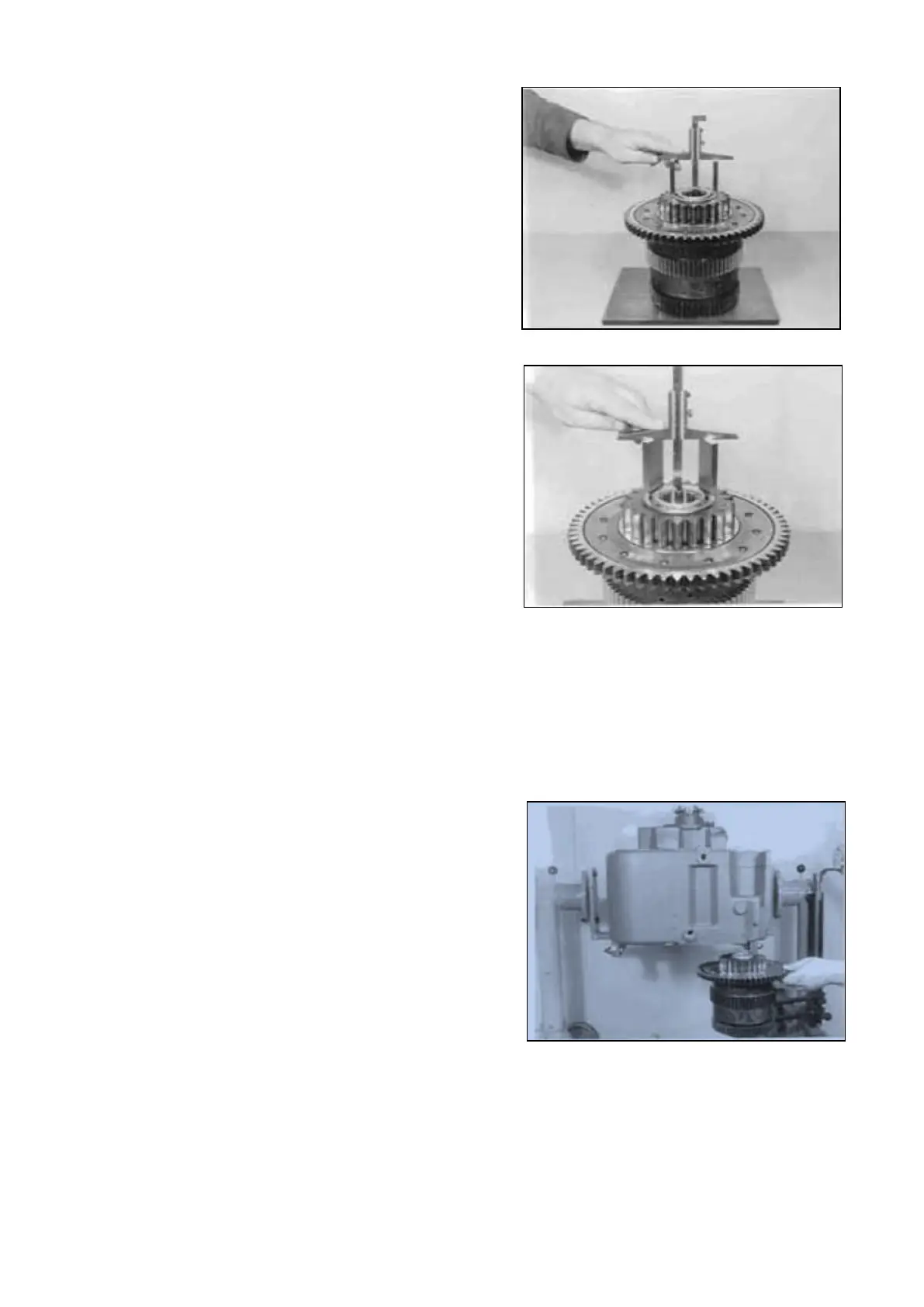

Put the clutch on a suitable surface plate and
determine Dimension III from the end
face/cylindrical rollers to the surface plate, see
Figures 180 and 181 !
Dimension e.g. 227,65 mm
Example "G" for the determination of the installation
dimension
Dimension e.g. 227,65 mm
End play e.g. + 0,20 mm
gives Installation Dimension
- Clutch e.g. 227,85 mm
Example "H" for the determination of the shim
Housing dimension e.g. 229,65 mm
Installation dimension
- Clutch e.g. – 227,85 mm
Difference = Shim e.g. s = 1,80 mm
Insert clutch KR/K2 in the housing, using lifting
device.
NOTE :
The installation of the shims and the fixing of the
clutch has to be done along with the clutch KV/K1 !
( S ) Lifting device 5870 350 041
SPC000007 Transmission and Torque Converter
Page 136
