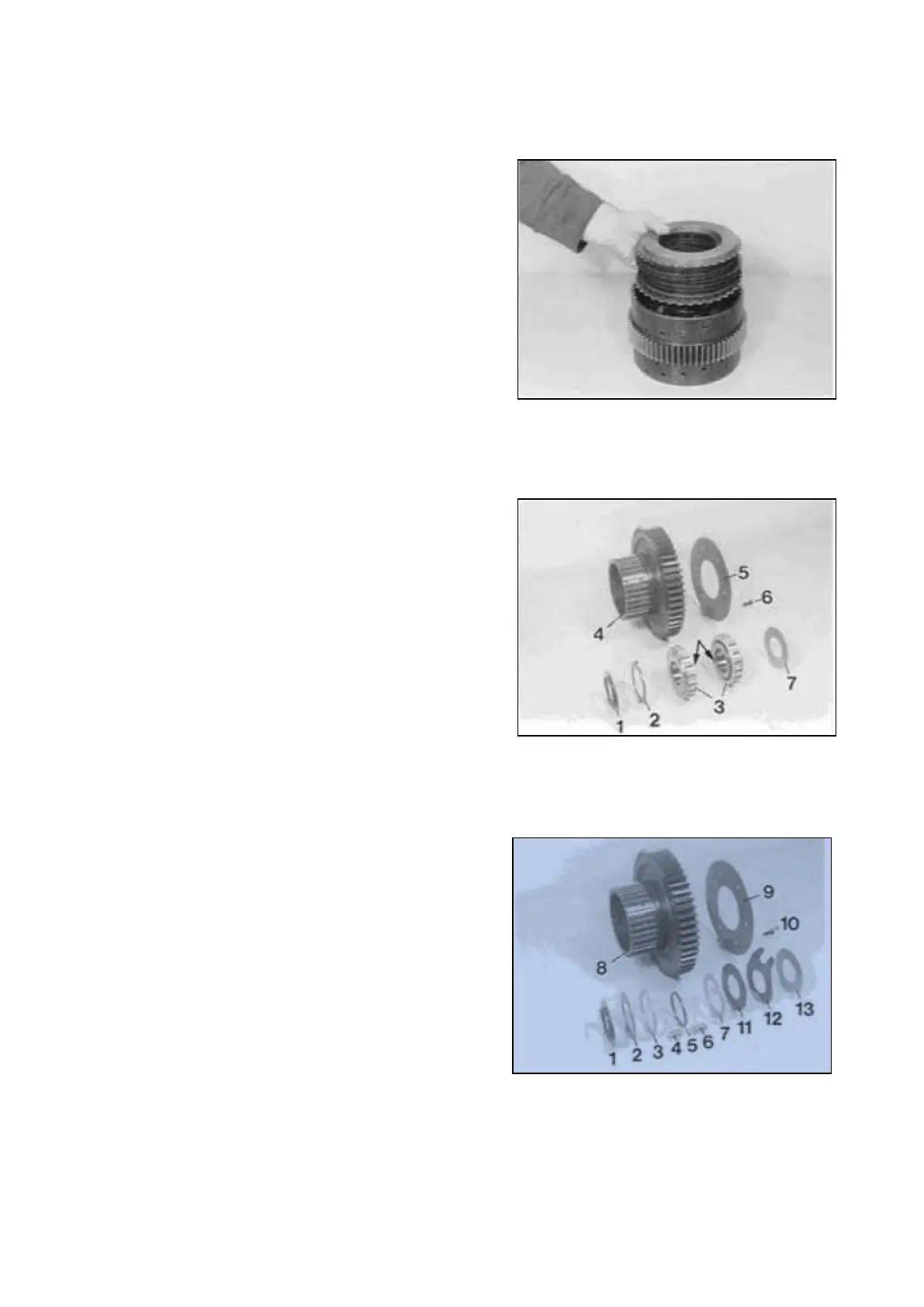

3.2.6 Clutch KV/K1
NOTE :
The pre-assembly of the plate carrier KV/K1 has to
be carried out accordingly like that of the plate
carrier K4/K3, see Page 116 and 117.
ATTENTION ;
Pay attention to the different plate carriers, see
Figure 148 and 169 !
3.2.6.1 Plate pack KV
Install plate pack and check clearance.
NOTE :
Plate arrangement, see
Plate installation. Page 118 ... 122 !
3.2.6.2 Pre-assemble and install spur
gear KV
NOTE ;
According to the Transmission Version, resp.
operating conditions, different spur gear bearings
are possible, see corresponding Spare Parts List as
well as Figures 184 and 185 !
Spur gear bearing KV, Version "A" (Fig. 184)
1 = Thrust plate
2 = Thrust washer
3 = Roller bearing
4 = Spur gear
5 = Plate
6 = Hex. head screws (M6/8.8 = 9,5 Nm)
7 = Shim (optional)
NOTE :
Secure hex. head screws (5) with Loctite (Type-No.
270) ! Pay attention to the installation position of the
bearing inner races (oil grooves), see Arrows !
Spur gear bearing KV, Version "B" (Fig. 185)
1 = Thrust plate 8 = Spur gear
2 = Disk 9 = Plate
3 = Thrust washer 10 = Hex.head screws
4 = Cylindrical rollers(short) (M6/8.8= 9,5 Nm)
5 = Disk 11 = Thrust washer
6 = Cylindrical rollers 12 = Forked washer
7 = Thrust washer
NOTE :
Secure hex. head screws (10) with Loctite (Type-No.
270) !
Install long cylindrical rollers (according to the
Version) on the converter side !
Transmission and Torque Converter SPC000007
Page 137
