Install components 2 ... 6 (Figure 180), resp. 2 ... 10
(Figure 185).
Replace thrust plate 1 and thread up spur gear until
all inner plates arc received.
NOTE :
Make thrust washers as well as cylindrical rollers
adhere with grease.
3.2.6.3 Plate pack K1
Install plate pack and check clearance.
NOTE :
Plate arrangement, see
Plate installation, Page 118 ... 122 !
3.2.6.4 Pre-assemble and install spur
gear K 1
NOTE :
According to the Transmission Version, resp.
operating conditions, different spur gear bearings
arc possible, see corresonding Spare Parts List as
well as the following Figures(188 … 190) !

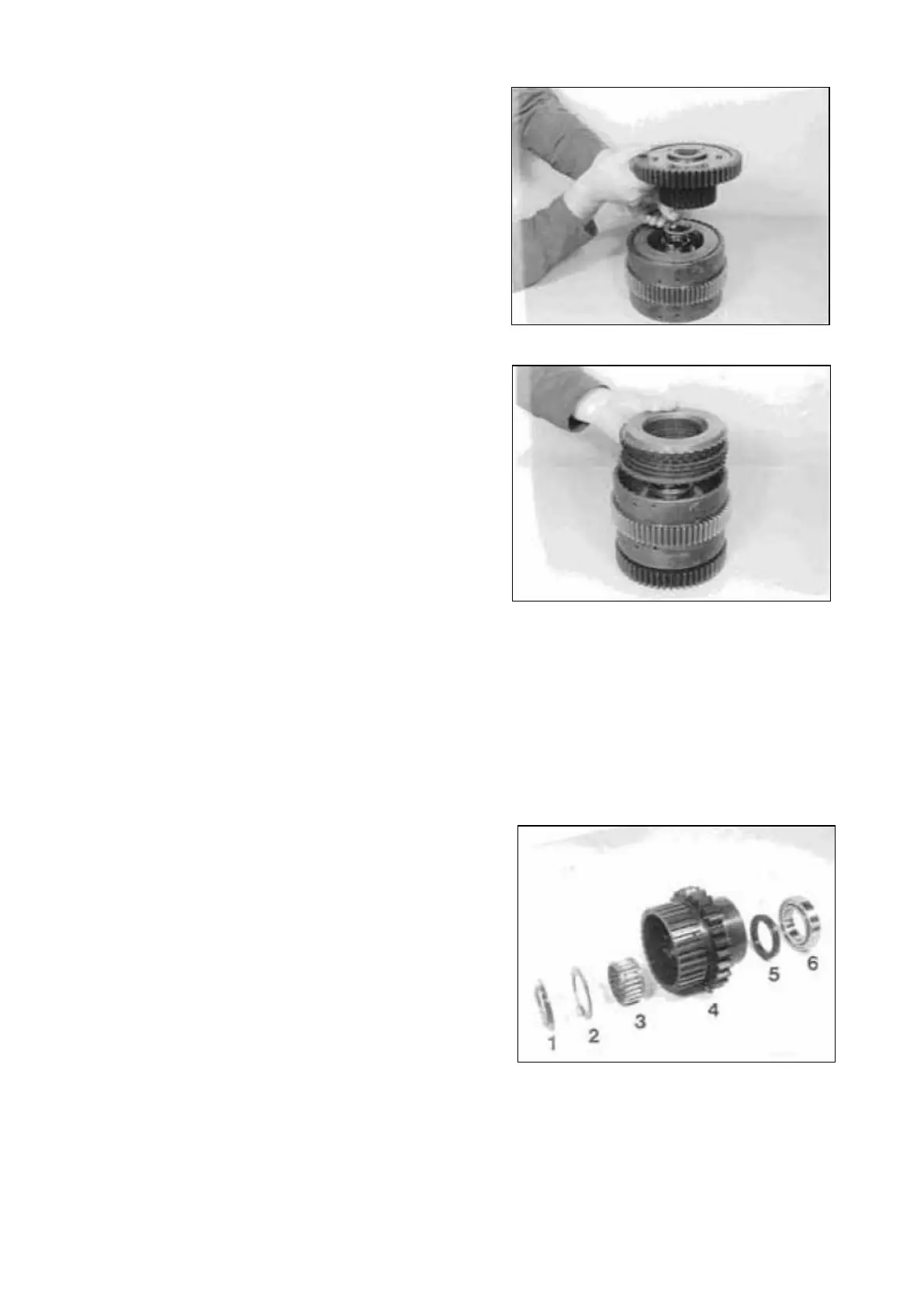

Spur gear bearing K1, Version "A" Fig. 188
1 = Thrust plate
2 = Thrust washer
3 = Needle cage
4 = Spur gear
5 = Sleeve
6 = Ball bearing
SPC000007 Transmission and Torque Converter
Page 138
