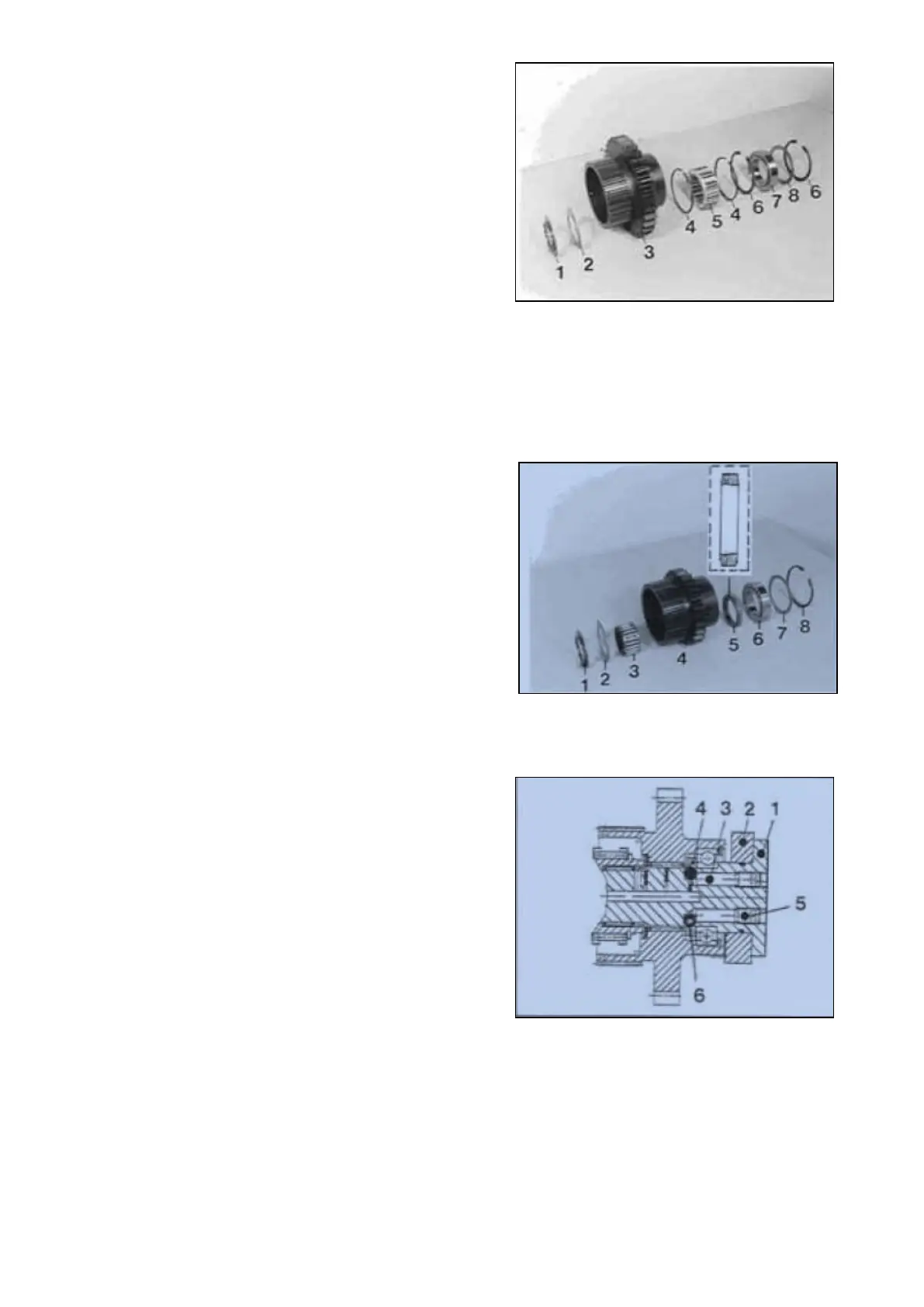

Spur gear bearing K1, Version "B" Fig. 189
1 = Thrust plate
2 = Thrust washer
3 = Spur gear
4 = Angle ring
5 = Roller cage
6 = Circlip (2x)
7 = Ball bearing
8 = Disk (optional)
NOTE :
Make thrust washer (2) adhere with grease.
Install broad butting faces of angle rings (4) always
facing the bearing rollers. Adjust ball bearing (7)
free of play by means of disk !
Spur gear bearing K1, Version "C" (K1-Fixing,
Figure 190 and 191)
1 = Thrust plate
2 = Thrust washer
3 = Needle cage
4 = Spur gear
5 = Sleeve
6 = Ball bearing
7 = Disk (optional)
8 = Circlip
NOTE ;
Make thrust washer adhere with grease. Pay
attention to :he installation position of the sleeve,
Figure 190 !
Adjust ball bearing (6) free of play by means of disk !
Figure 191 shows the fixing of the spur gear after
the installation of the clutch.
1 = Clutch shaft
2 = Housing
3 = Cylindrical roller
4 = Sleeve
5 = Set screw
6 = Ball
Transmission and Torque Converter SPC000007
Page 139
