Install components according to Figure 188, 189,
resp. 190.

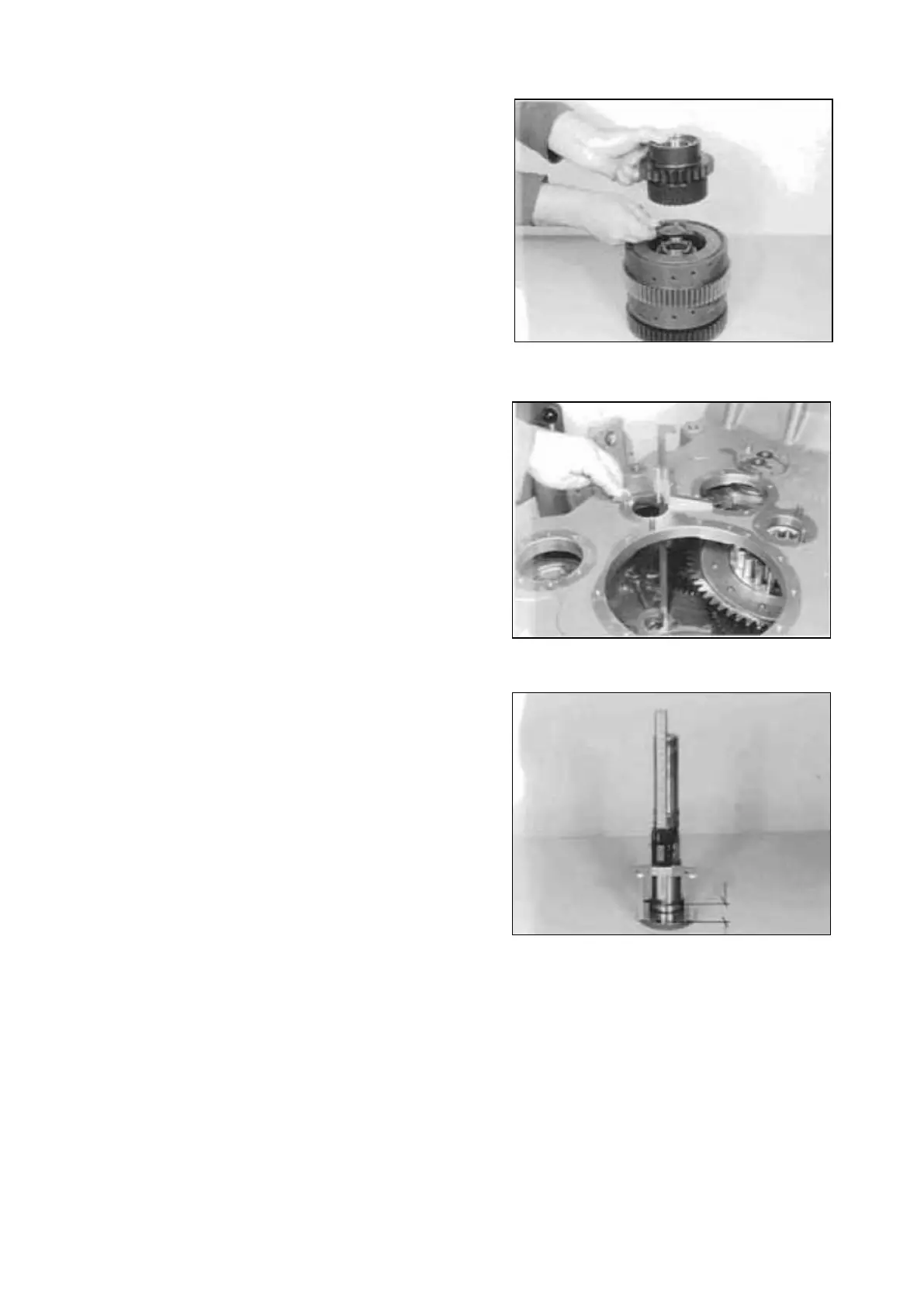

Replace thrust plate (1) and thread up spur gear
until all inner plates are received.
3.2.6.5 Install clutch KV/K1
Adjust end play of clutch 0,1 ... 0,3 mm
Determine Dimension from the flange-mounted
surface/axle to the plane surface/housing.
Dimension 1 e.g. 254,40 mm
NOTE:
In case of spur gear bearing KV, Version "B‖ (Figure
185), lay forked washer and thrust washer upon the
plane surface of the housing and measure up to the
thrust washer.
Measure Dimension II from the butting face/bearing
rollers to the flange-mounted surface.
Dimension e.g. 27,00 mm
Example ―J ‖ , for the determination of the housing
dimension .
Dimension e.g. 254,40 mm
Dimension e.g. - 27,00 mm
Difference = Housing
dimension e.g. 227,40 mm
SPC000007 Transmission and Torque Converter
Page 140
