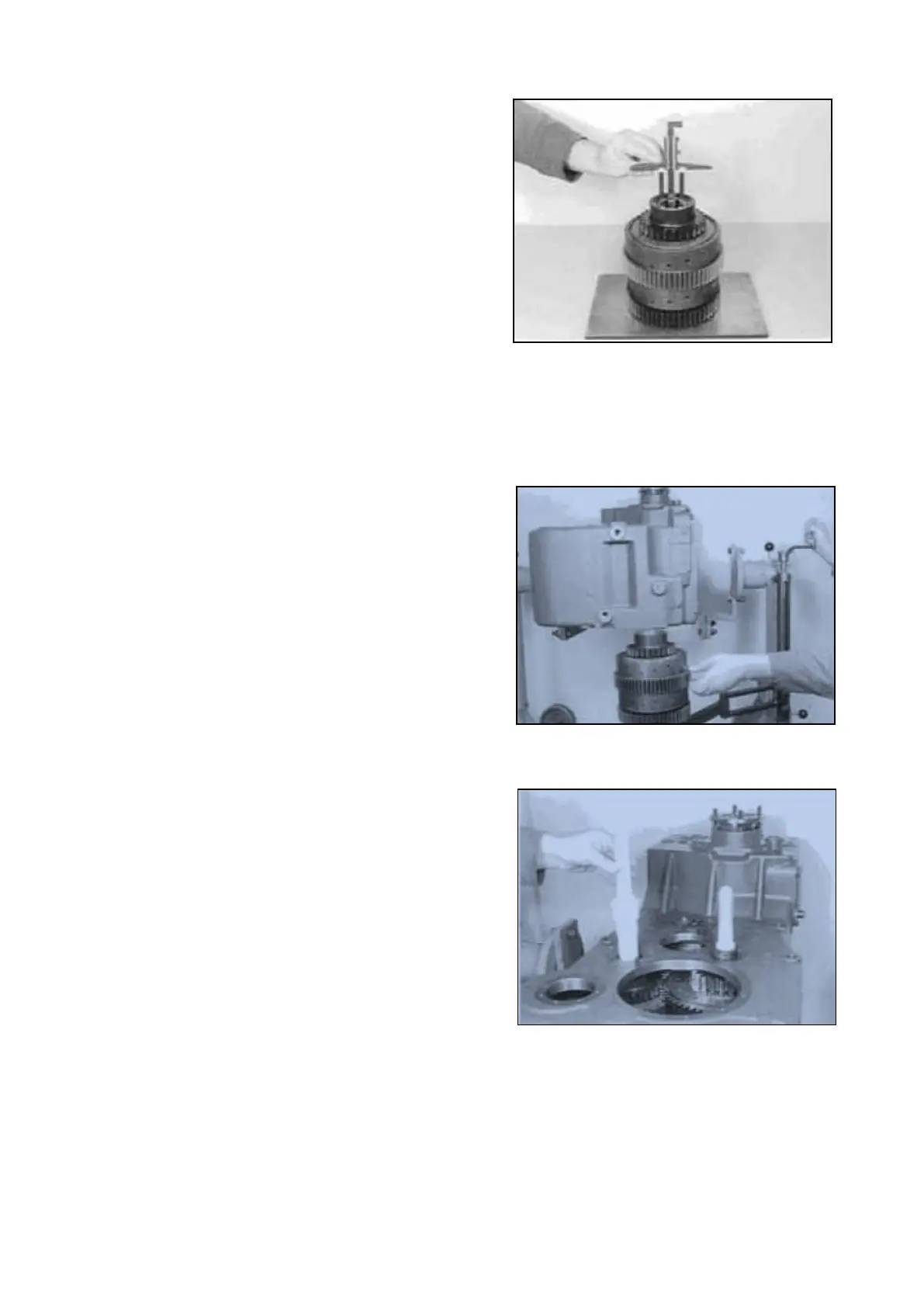

Place clutch on a suitable surface plate and
determine Dimension III from the end face of the
bearing inner race to the surface plate.
Dimension e.g. 223,80 mm
Example ―K‖, for the determination of the installation
housing dimension .
Dimension e.g. 223,80 mm
End play e.g. + 0,20 mm
gives Installation dimension
- Clutch 224,00 mm
Example "L‖ for the determination of the shim
Housing dimension e.g. 227,40 mm
Installation dimension
- Clutch e.g. - 224,00 mm
Difference = Shim e.g. s = 3,40 mm
Insert clutch KV/K1 by means of lifting device in the
housing and position it.
ATTENTION :
For different Transmission variants, the output gear
of the lateral power take-off must be installed prior
to the installation of the clutch axles KV/K1 and
KR/K2 (narrow installation space).
If necessary, handle steps of Figure 216 ... 219 first.
Align the two clutches (KV/K1 and KR/K2) by means
of drift and fix them provisionally.
(S) Montagedorn 5870 345 025
