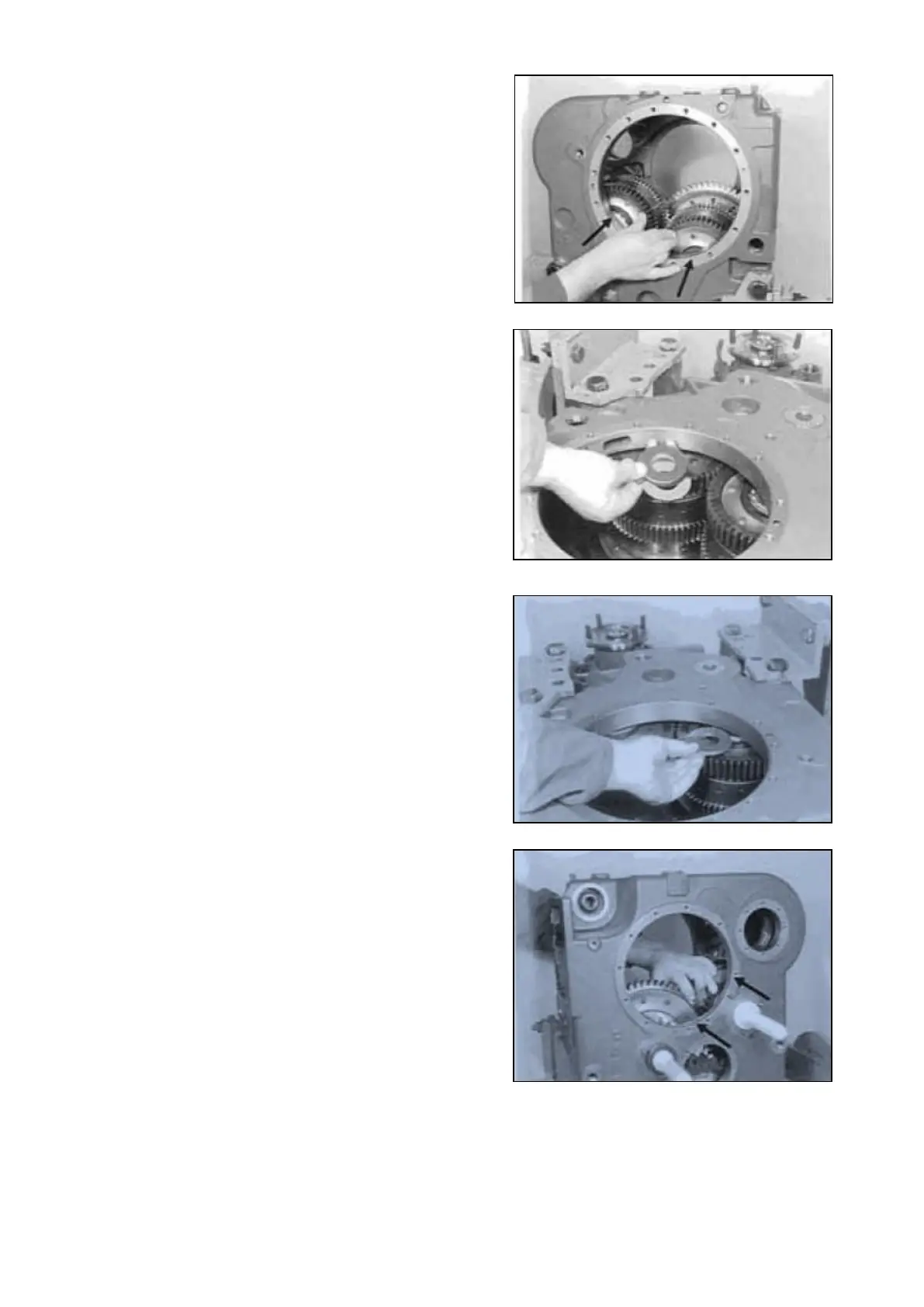

Install thrust washer, locked washer and shim, resp.
shim (according to the Version)(Figure 198 ... 201)
For the moment, tilt housing 90and place the
complete clutches in direction of Arrow against
shoulder.
Now, tilt gear case forward in the horizontal position.
Pull drift downwards until the thrust washer, forked
washer and shim (Figure 199), resp. the shim
(Figure 200) can be installed.
Now, align the complete clutch as well as the shims
again, using drift, and fix them.
NOTE :
Shim thickness for KV/KI and KR/K2, see
corresponding Examples 1
Install thrust washer (plastic) facing the spur gear !
Pay attention to a correct fixing of the forked
washer !
Tilt gear case in a vertical position (90°) and place
the complete clutches in direction of Arrow against
shoulder.
Now, tilt forward in the original position (Figure 197).
SPC000007 Transmission and Torque Converter
Page 142
