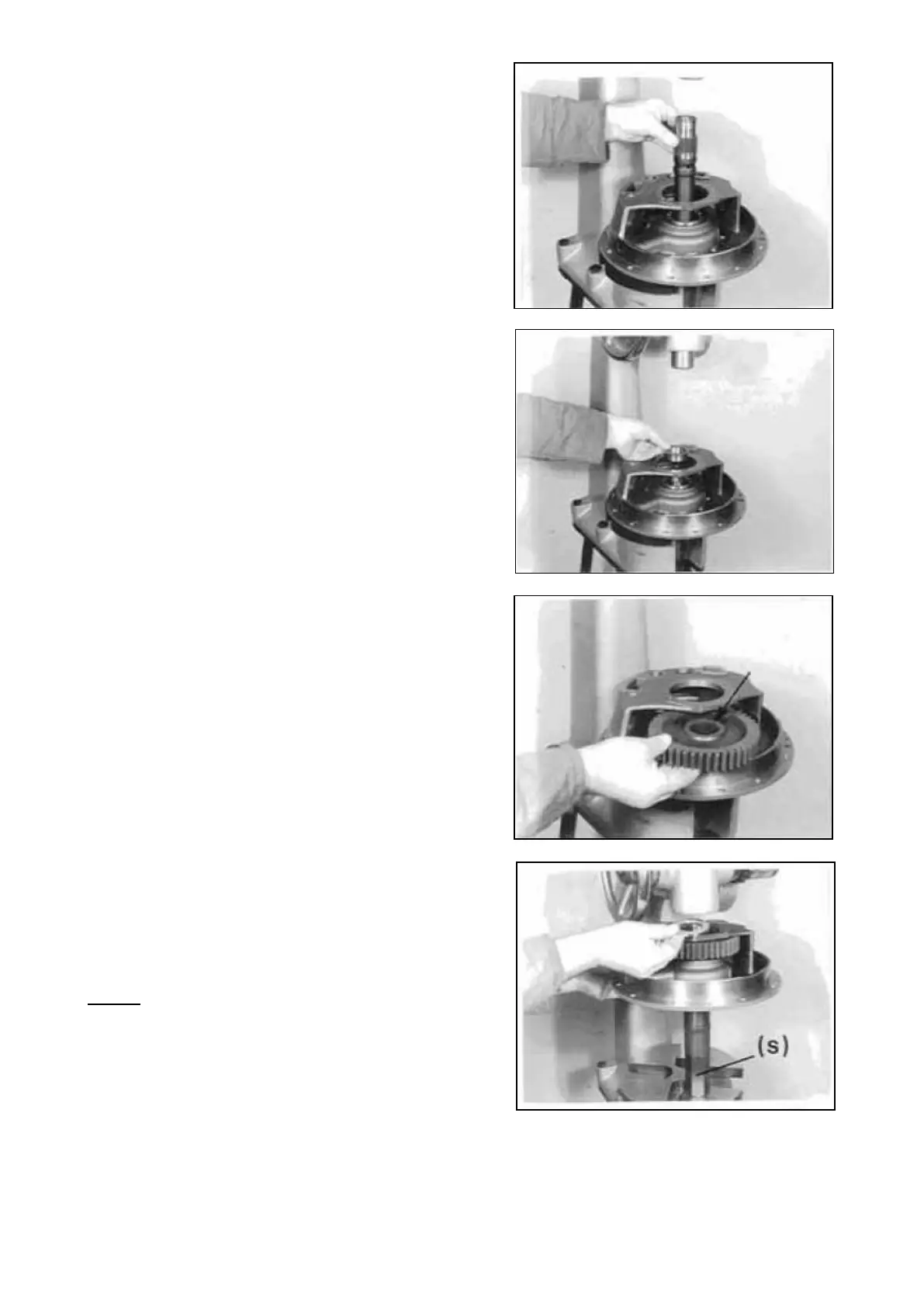

Thread up drive shaft.
Install bearing inner race.
Position spur gear with the long hub side (Arrow)
showing upwards (facing the ball bearing).
Back up drive shaft and oil supply flange by means
of Assembly aid ( S ).
Assemble disk (according to the Version with or
without).
NOTE :
The exact installation position of the drive shaft is
determined by means of the Assembly aid !
( S ) Assembly aid 5870 345 032
SPC000007 Transmission and Torque Converter
Page 152
