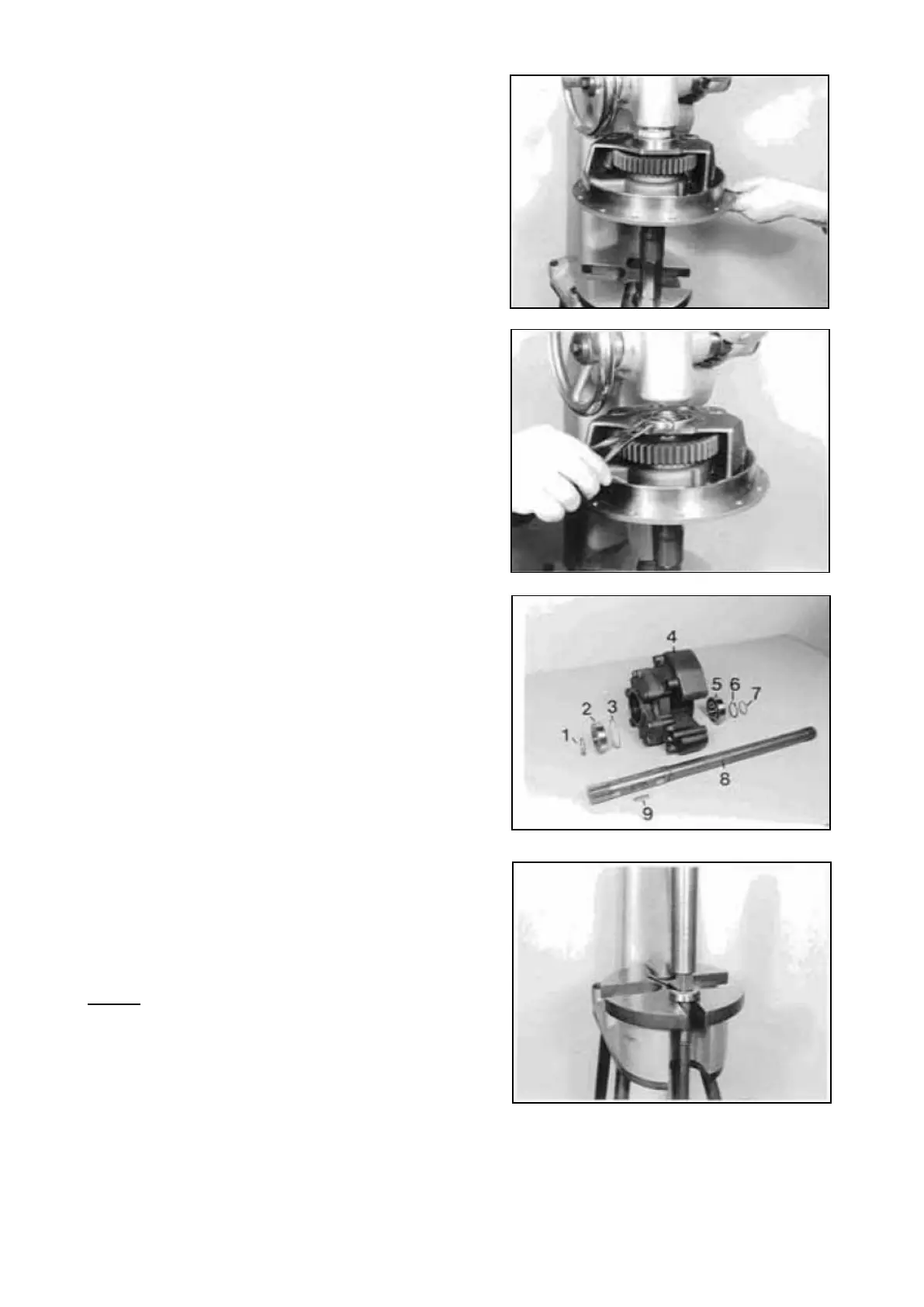

Press ball bearing against shoulder.
Squeeze circlip into the annular groove of the drive
shaft.
The Illustration on the right shows the output shaft
along with bearing as well as the pump.
1 = Circlip
2 = Ball bearing
3 = Shim (optional)
4 = Pump
5 = Ball bearing
6 = Circlip
7 =Rectangular ring
8 = Output shaft
9 = Adjusting spring
Squeeze in circlip (Arrow).
Press ball bearing against circlip until contact is
obtained.
NOTE ;
Pay attention to the installation position of the ball
bearing, closed bearing side is facing the circlip
(upwards) !
Transmission and Torque Converter SPC000007
Page 153
