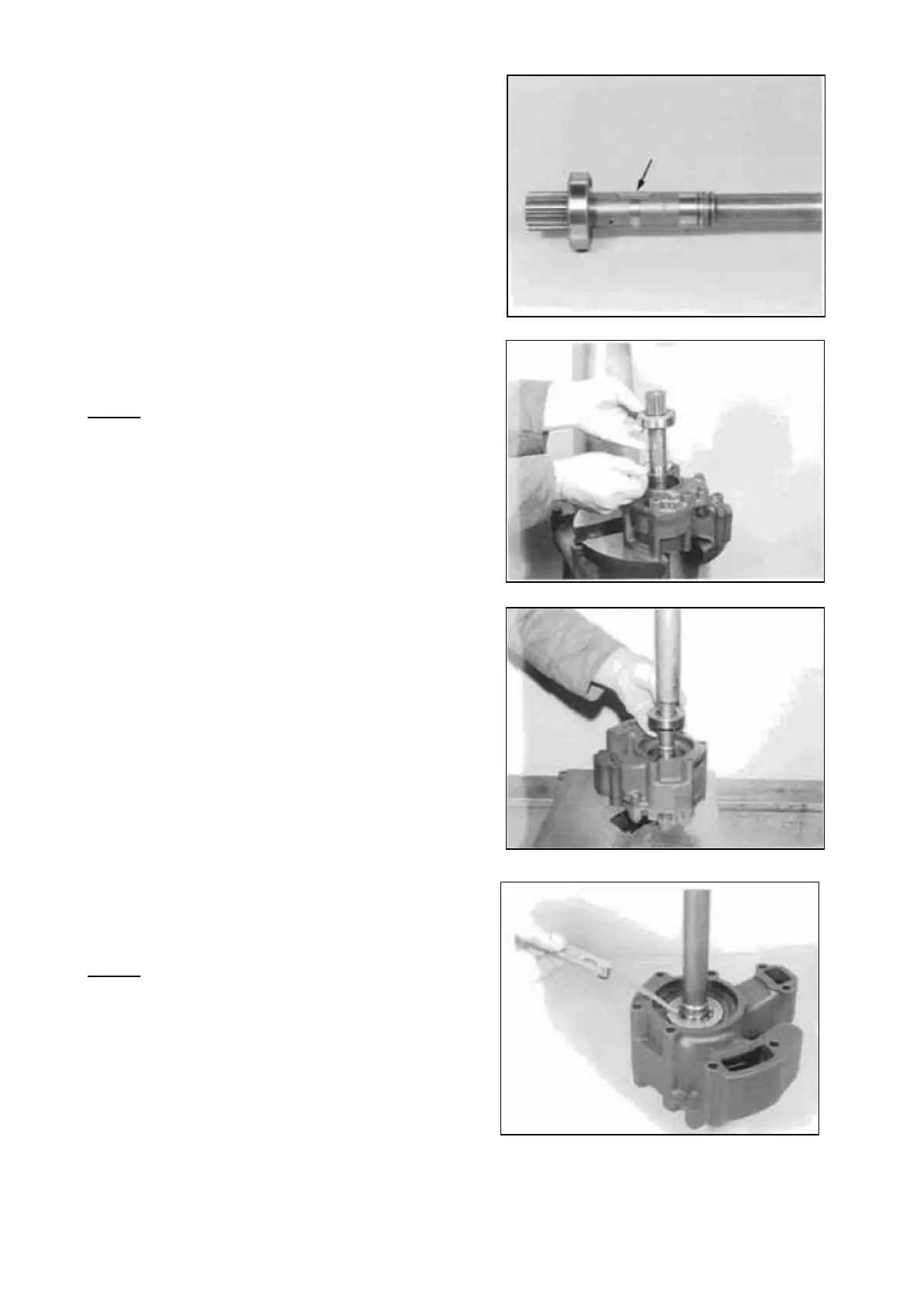

Install adjusting spring (Arrow).
Install shim s = 0,8 mm (empirical value) and press
output shaft against shoulder.
NOTE :
The end play of the output shaft of 0,2…0,4 mm is
adjusted by means of shim (e.g.s = 0,8 mm) !
Press ball bearing against shoulder, with the closed
side showing upwards.
Squeeze in circlip.
Check end play 0,2 ... 0,4 mm between circlip and
bearing inner race, using feeler gauge.
NOTE :
In case of deviations from the required end play,
correct by means of shim (Figure 245).
SPC000007 Transmission and Torque Converter
Page 154
