Relax the output shaft bearing by tapping.
NOTE ;
Use plastic hammer !
Squeeze in rectangular ring (Arrow) and engage it.
Now, grease rectangular ring and align it centrically.
Adjust the end play of the drive shaft bearing 0,2 ...
0,4 mm (Figure 250 ... Example ―M‖)
Determine Dimension from the flange-mounted
surface to the contact area/ball bearing.
Dimension e.g. 7,10 mm
Replace gasket and measure Dimension II from the
end face/ball bearing to the gasket (flange-mounted
surface).
Dimension 11 e.g. 6,05 mm
Transmission and Torque Converter SPC000007
Page 155

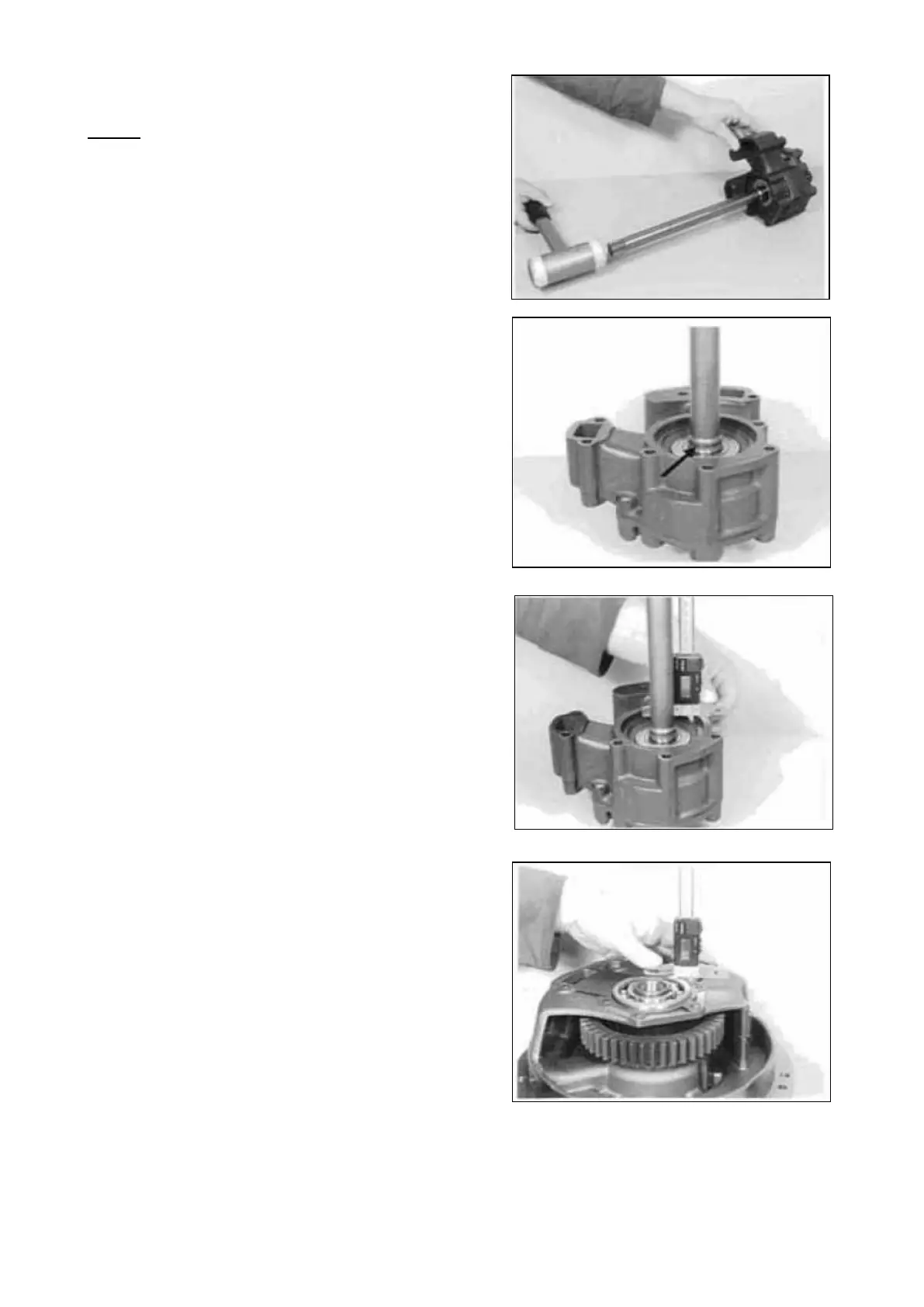

Figure 248
Figure 249
Figure 250
Figure 251
