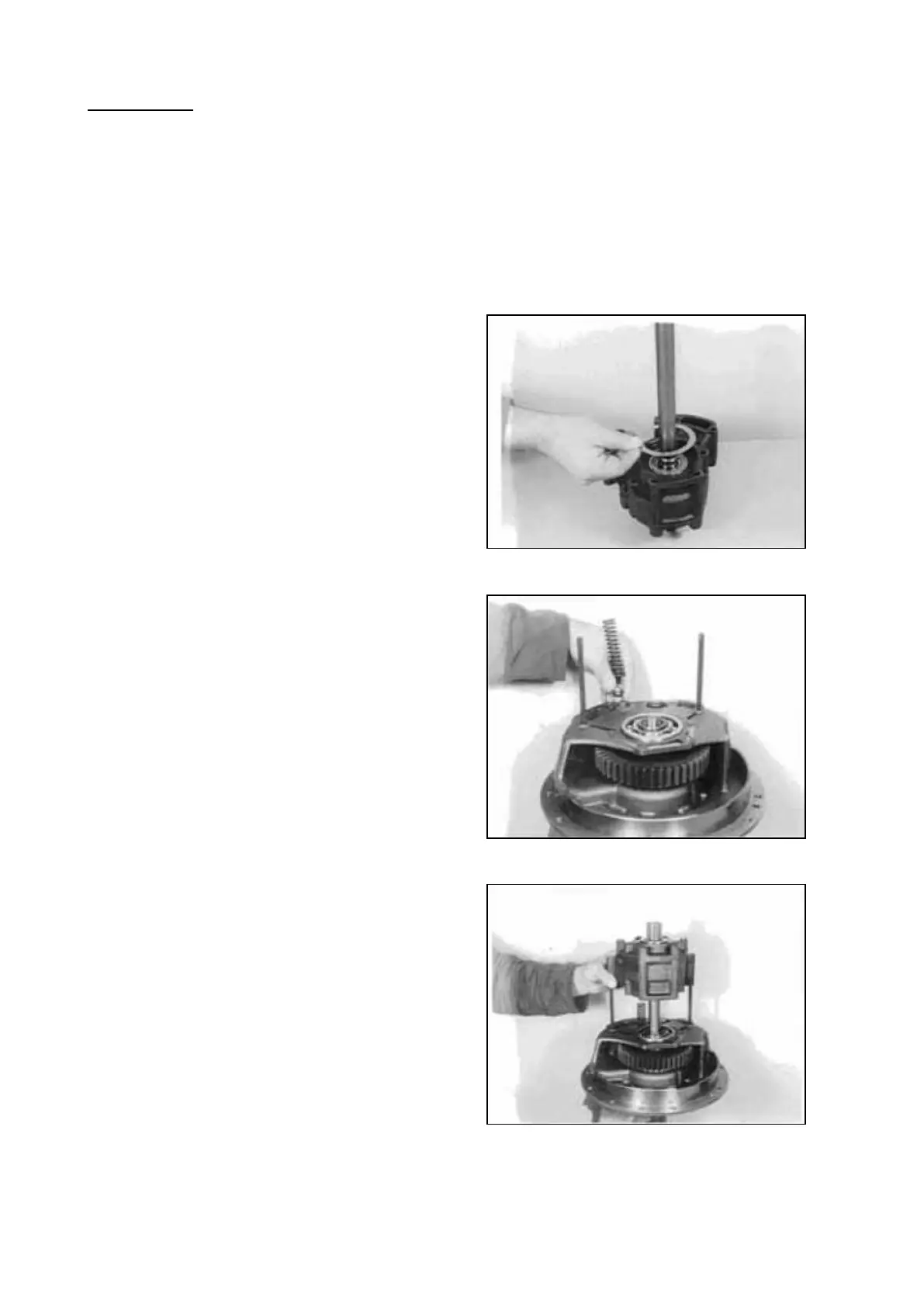

Example "M" ;
Dimension I 7,10 mm
Dimension II - 6,05 mm
Difference 1,05 mm
Required end play e.g. - 0,30 mm
gives Shim e.g. s = 0,75 mm
Make shim (e.g. s = 0,75 mm) adhere with grease.
Install two adjusting screws, mount flat gasket and
install converter relief valve (ball and spring).
( S ) Adjusting screws (M8) 5870 204 011
Place pre-assembled pump against oil supply flange
and fasten it by means of hex. Head screws.
Torque limit (M8/8.8) 23 Nm
SPC000007 Transmission and Torque Converter
Page 156
