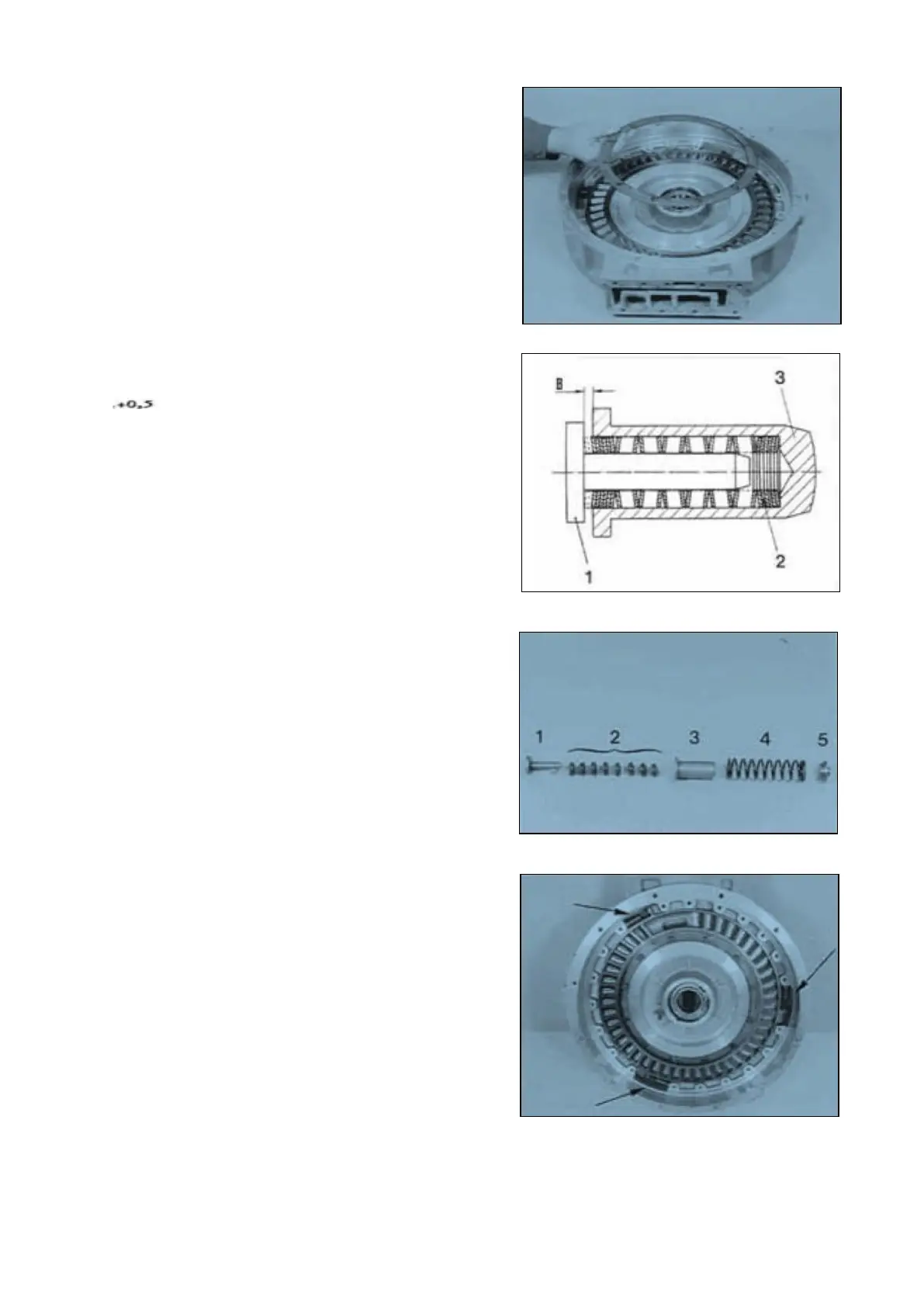

Fasten thrust ring by means of hex. Head screws.
Torque limit (M8/8.8) 23 Nm
NOTE :
Secure hex. head screws with Loctite (Type-No.
241) !
Pre-assemble dampers (3 pieces) according to
Figure 25 and 26.
NOTE ;
Pay attention to the installation dimension B
= l,6 mm !
Ref. Figure 23 and 26 :
1 = Guide pin
2 = Cup spring packs (8 packs with 6 cup springs
each)
3 = Spring guide
4 = Compression spring
5 = Spring guide
Install pre-assembled dampers, see Arrows !
SPC000007 Transmission and Torque Converter
Page 172
