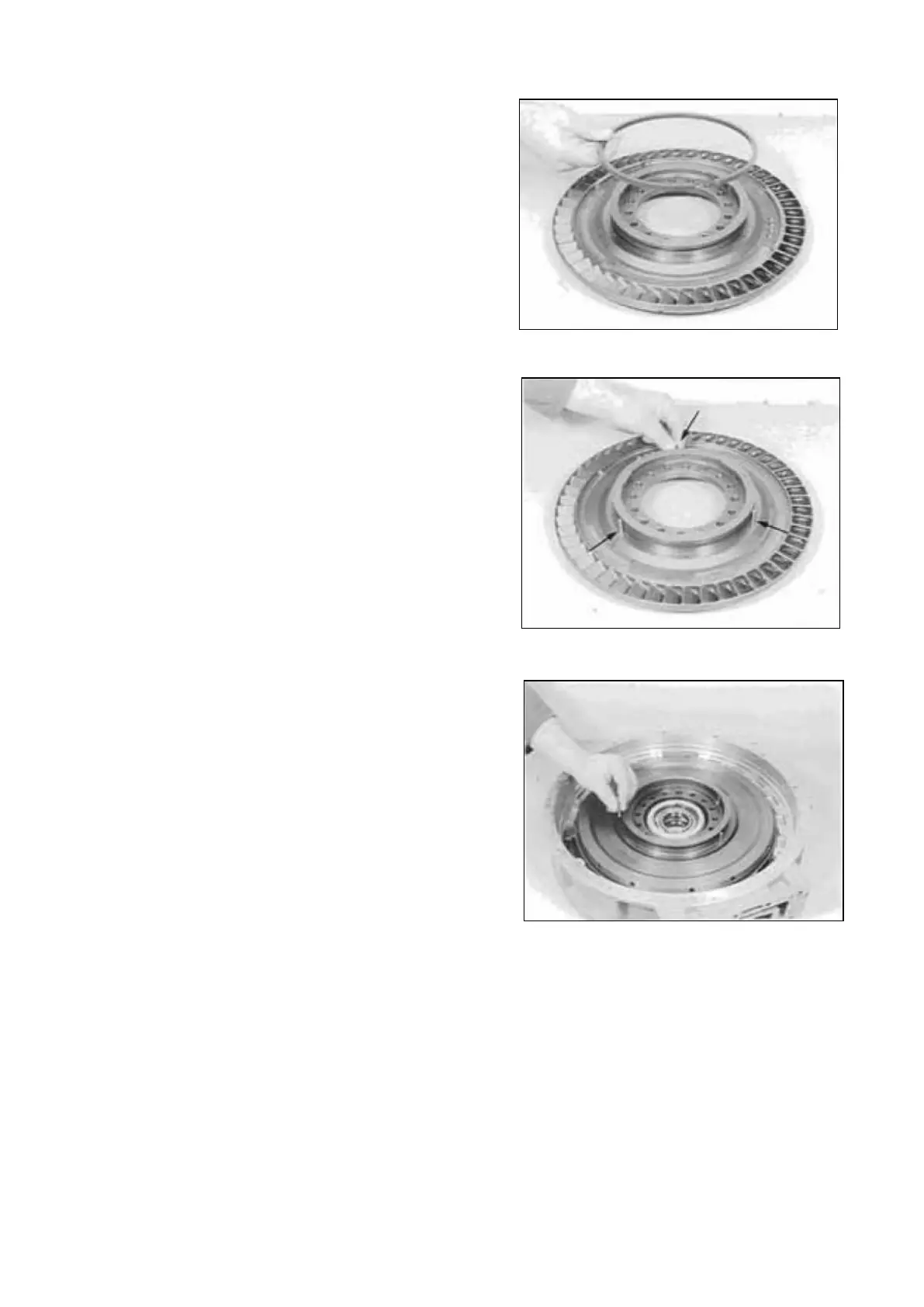

Slide rectangular ring into the recess of the rotor
and preload it by means of 3 straight pinsΦ 6 mm
(Assembly aid) (Figure 28 and29).
(3x) Straight pin 0631 306 178
Oil rectangular ring, slide rotor into the stator case
until contact is obtained and remove straight pins
again.
Transmission and Torque Converter SPC000007
Page 173
