Slide second rectangular ring into the recess (Figure
31).
Make the bore of the rectangular ring as well as of
the rotor overlap and fix rectangular ring by means
of suitable pin (Φ 1 mm) (Figure 32).
Insert O-Ring in the annular groove of the cover
(Arrow) and grease it.
Install two adjusting screws and insert cover until
contact: is obtained.
NOTE :
Pay attention to the radial installation position (oil
duct, see Arrow 2) !
( S ) Adjusting screws (M8) 5870 204 011
Now, remove guide pin (Assembly aid) again and
fasten cover by means of socket head screws
(mount flat washers).
NOTE :
Secure socket head screws with Loctite (Type-No.
640) !
Torque limit (M8/I0.9) 34 Nm
SPC000007 Transmission and Torque Converter
Page 174

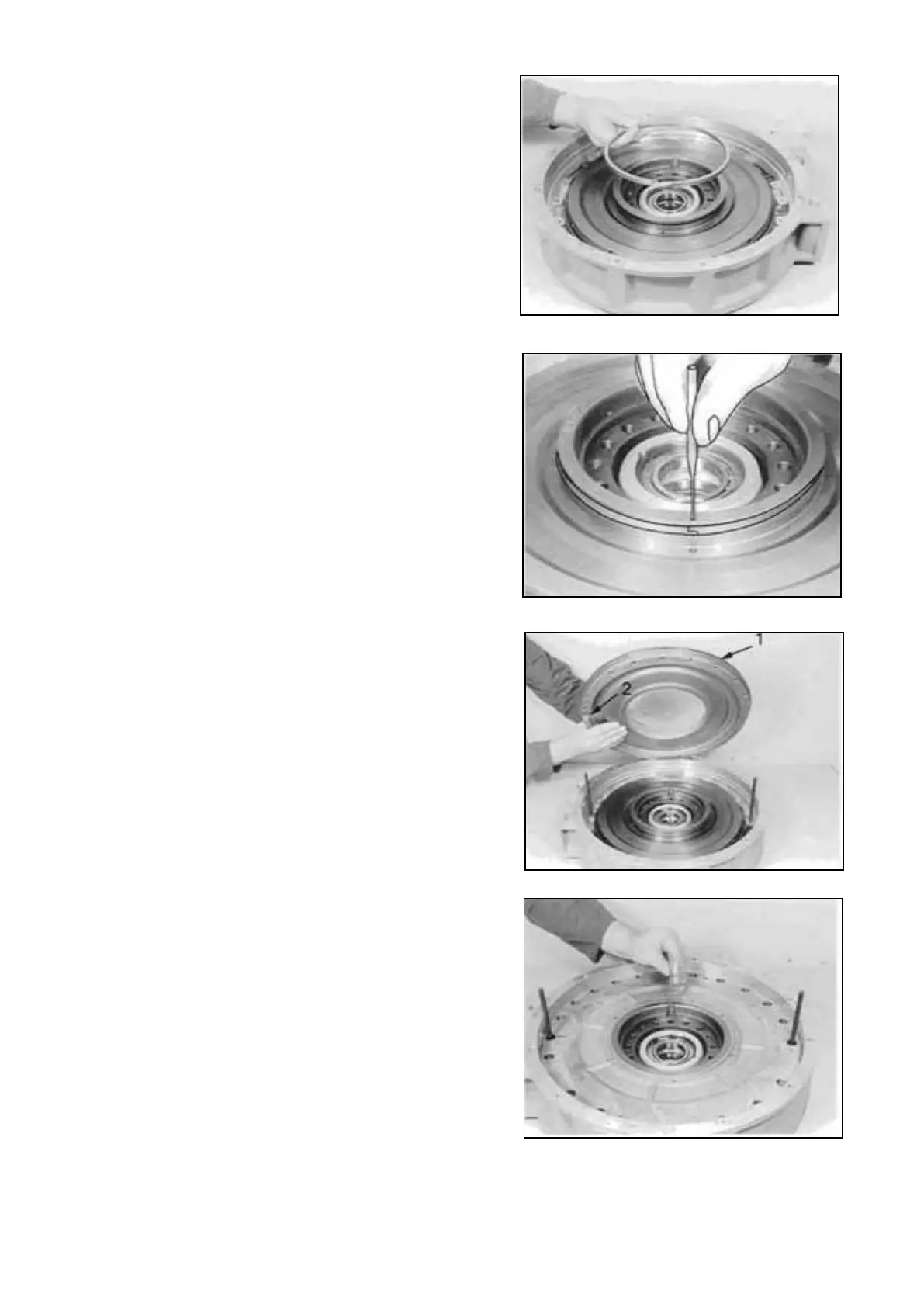

Figure 31
Figure 32
Figure 33
Figure 34
