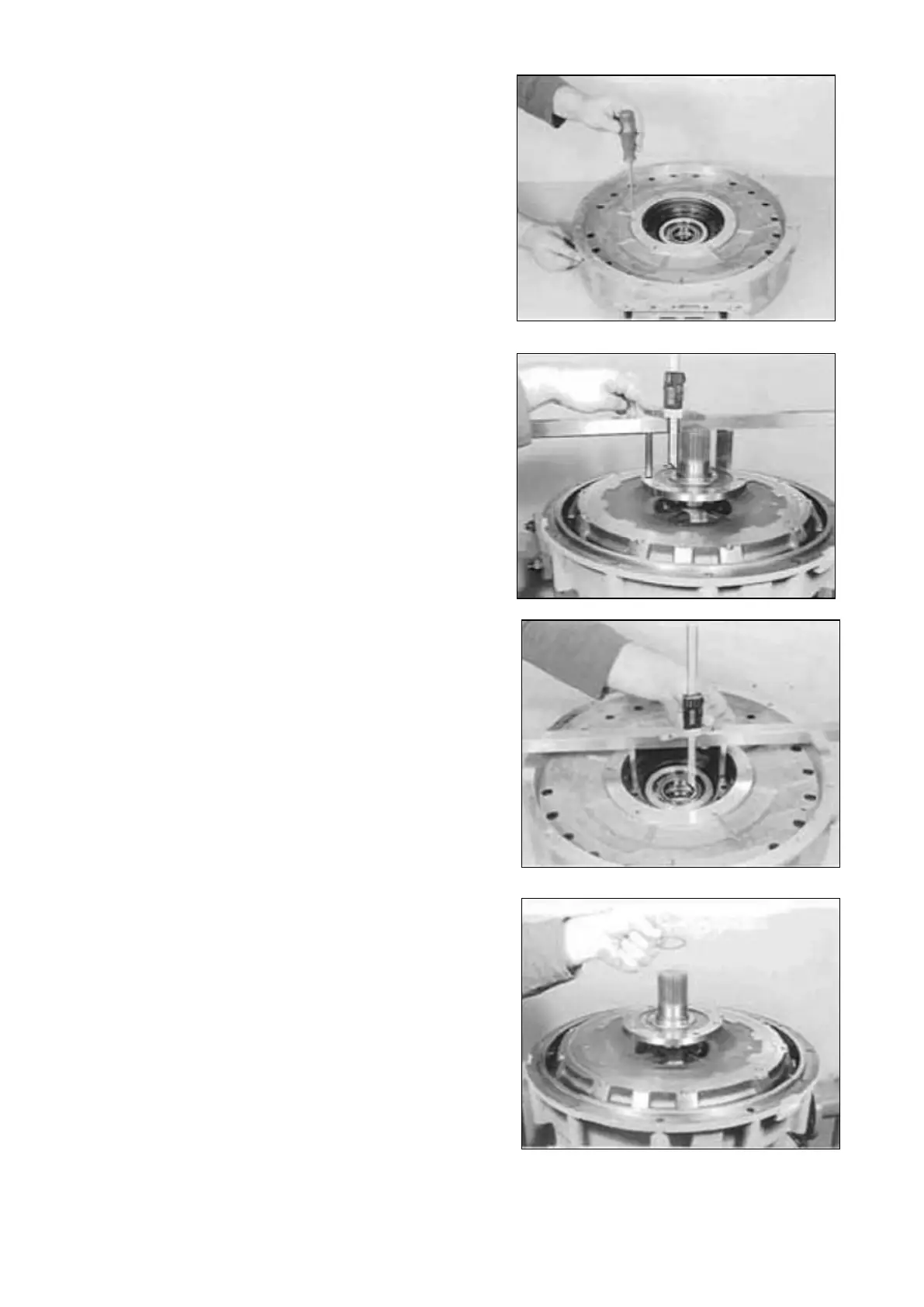

Fasten oil slinger by means of countersunk screws.
NOTE ;
Wet thread of countersunk screws with Loctite
(Type-No. 640) !
Adjust gap between Rotor and Stator ring = 0,8 …
1,6 mm (Figure 36 ... 38) :
Measure Dimension from the contact surface (4-
point bearing) to the flange-mounted surface.
Dimension e.g. 12,00 mm
( S ) Straightedge 5870 200 022
( S ) Gauge blocks 5870 200 046
( S ) Digital depth gauge 5870 200 072
Determine Dimension from the flange mounted
surface (drive flange) to the bearing inner race.
Dimension e.g. 10,65 mm
EXAMPLE "A" ;
Dimension 12,00 mm
Dimension -10,65 mm
Difference 1,35 mm
Required gap
Rotor-Stator ring e.g. - 1,20 mm
gives Shim s = 0,15 mm
Assemble shim (e.g. s = 0,15 mm).
Transmission and Torque Converter SPC000007
Page 175
