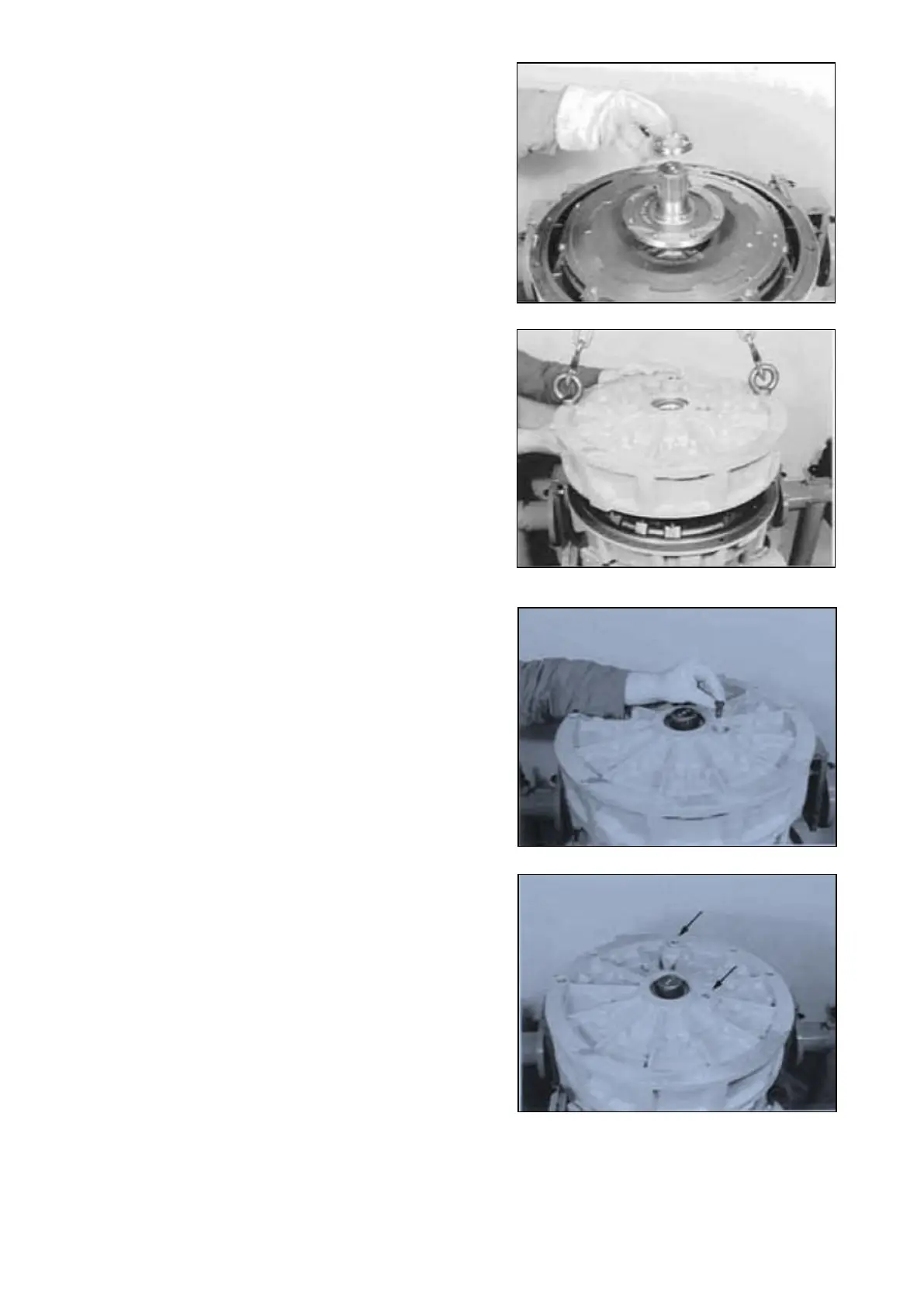

Heat bearing inner race and place it against
shoulder.
NOTE ;
Pay attention to the installation position, ball running
surface is showing upwards !
Mount flat gasket, assemble the retarder until
contact is obtained and fasten it by means of hex.
head screws.
Torque limit (M10/8.8) 46 Nm
Fasten rotor at the drive flange.
NOTE :
Tighten hex. head screws uniformly (180° displaced)
and secure them with Loctite (Type-No. 241) !
Torque limit (M10/8.8) 46 Nm
Install the two screw plugs, see Arrows !
NOTE ;
Install new O-Rings !
