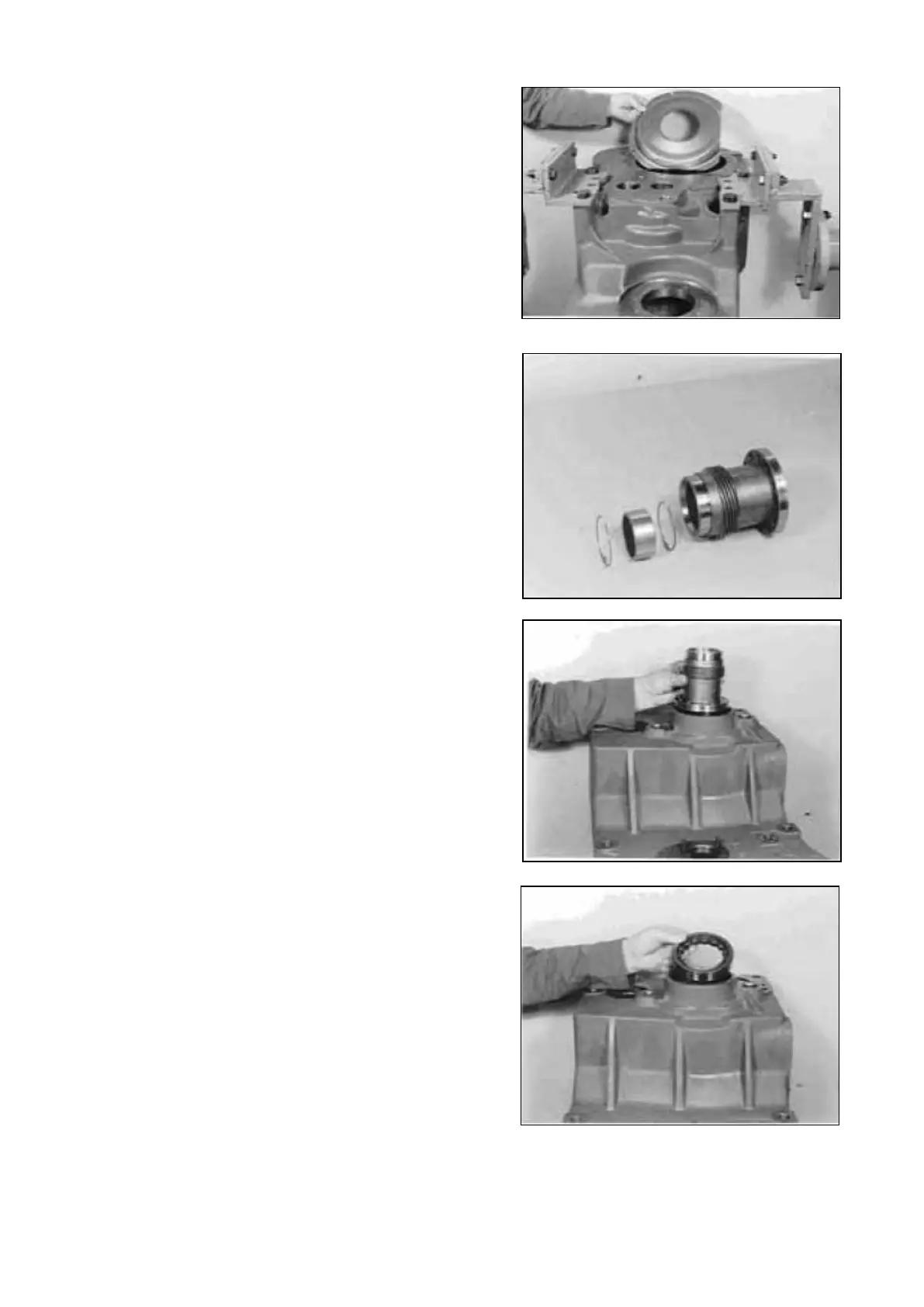

Lay cover plate upon the supporting plate (Figure
63).
Now, tilt gear case 180.
ATTENTION:
Differential is not fixed!
Squeeze in the first snap ring, press needle bearing
against shoulder and fix it by means of second snap
ring.
NOTE
Install the needle bearing with the reinforced shell
facing the pressing tool!
( S ) Pressure piece 5870 100 035
Introduce supporting tube and fasten it by means of
socket head screws.
Torque limit (Ml0/10.9) 68 Nm
NOTE :
Secure socket head screws with Loctite (Type-No.
241)!
( S ) Allen screw A/F-8 5870 290 00I
Insert roller bearing until the supporting tube is
received.
NOTE:
In order to ensure a possible disassembly, the roller
bearing must be installed with the open cage side
showing outwards (on top)!
The exact fixing is carried out later!
Transmission and Torque Converter SPC000007
Page 205
