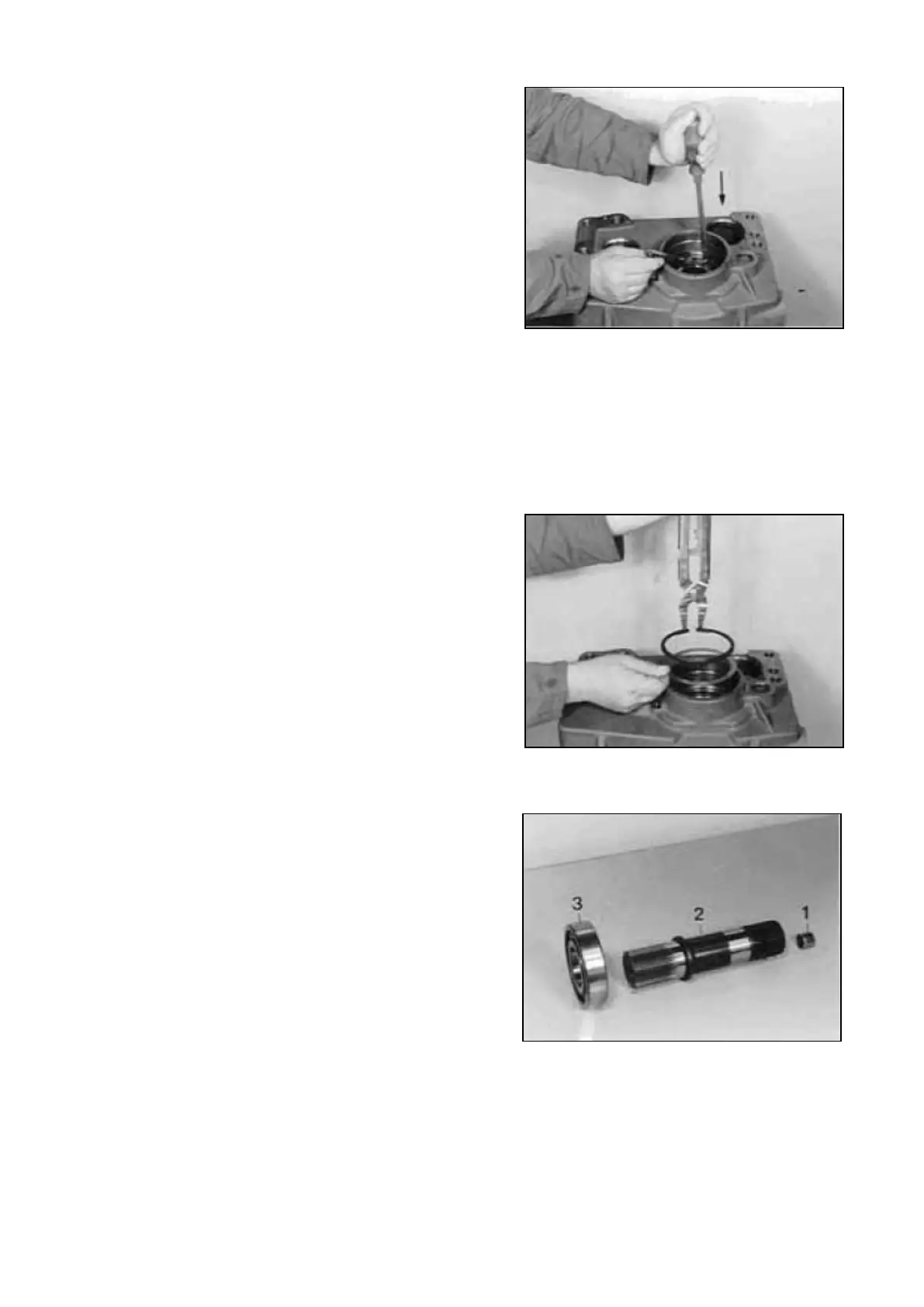

Push circlip in direction of Arrow against shoulder
and determine play between circlip and end
face/bearing outer race, using feeler gauge.
Dimension e.g. 1,50 mm
EXAMPLE "A" :
Dimension I e.g. 1,50 mm
required end play (0,4 ... 0,6 mm)
e.g. – 0,50 mm
Difference = Shim e.g. s = 1,00 mm
Install shim e.g. 1,00 mm (see Example "A") and
squeeze circlip in.
Insert needle bush 1 flush-mounted in the bore of
the output shaft 2.
Press ball bearing 3 against shoulder until contact is
obtained.
NOTE :
Install needle bush with the reinforced shell facing
the pressing tool!
( S ) Driver 5870 058 023
( S ) Handle 5870 260 002
SPC000007 Transmission and Torque Converter
Page 208
