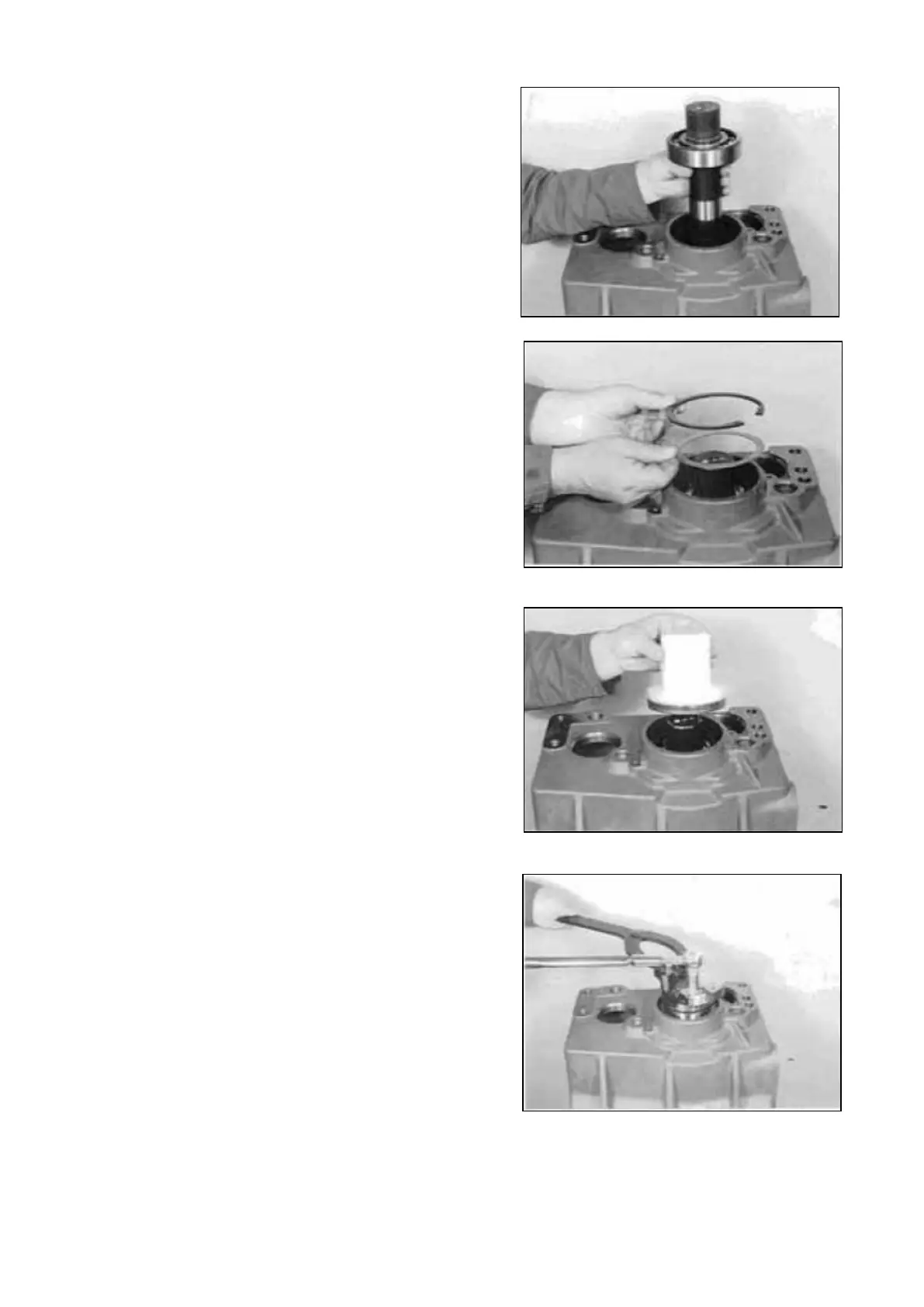

Introduce pre-assembled output shaft until contact is
obtained.
NOTE:
Pay attention to the exact contact of the ball bearing!
Fix ball bearing free of play by means of shim and
circlip.
Install shaft seal with the sealing lip facing the oil
chamber.
NOTE:
By application of the prescribed driver, the exact
installation position is obtained!
If the outer diameter of the shaft seal is rubberized,
wet the sealing surface with spirit!
If not, use a sealing compound!
Grease sealing lip!
( S ) Driver 5870 048 150
Assemble up output flange and fasten it by means
of disk and hex. head screws.
NOTE:
Wet contact surface of disk and screw heads with
sealing compound !
Torque limit (M10/8.8) 46 Nm
Now, fix hex. head screws with lock plate.
( S ) Clamping yoke 5870 240 025
( S ) Driver 5870 057 009
( S ) Handle 5870 260 002
Transmission and Torque Converter SPC000007
Page 209
