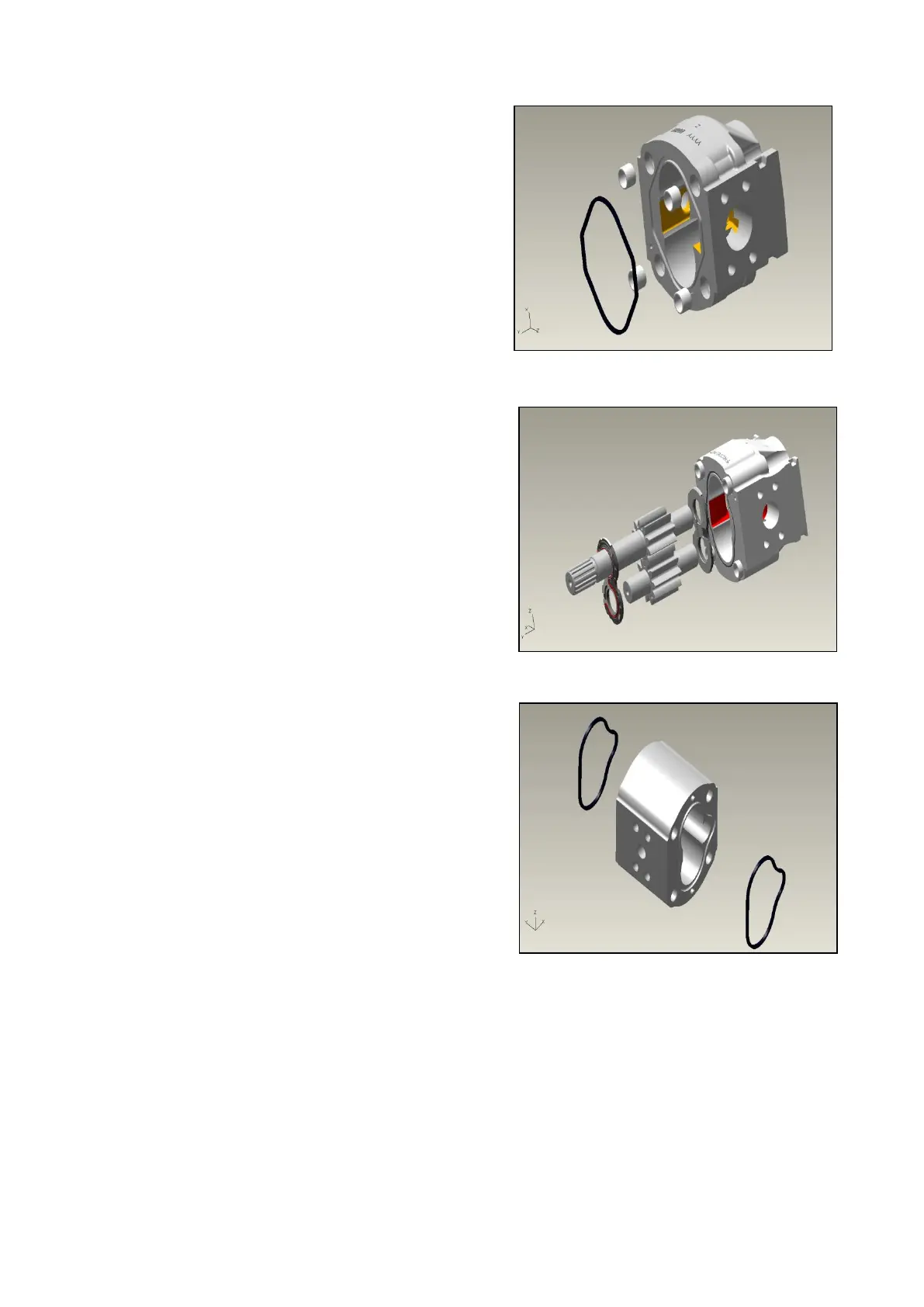

3. ①Smear clean grease on the square groove
②Insert square rings into the groove and 4 alignment pins.
4. ①put one of preassembled pressure plates into
the body and locate two gears, then load another
plate upon the gears.
☞ pay attention the positions of gears and
directions of pressure plates
5. Smear clean grease on the square grooves
②insert square rings into the grooves.
Steer Pump SPC000013
Page 11
