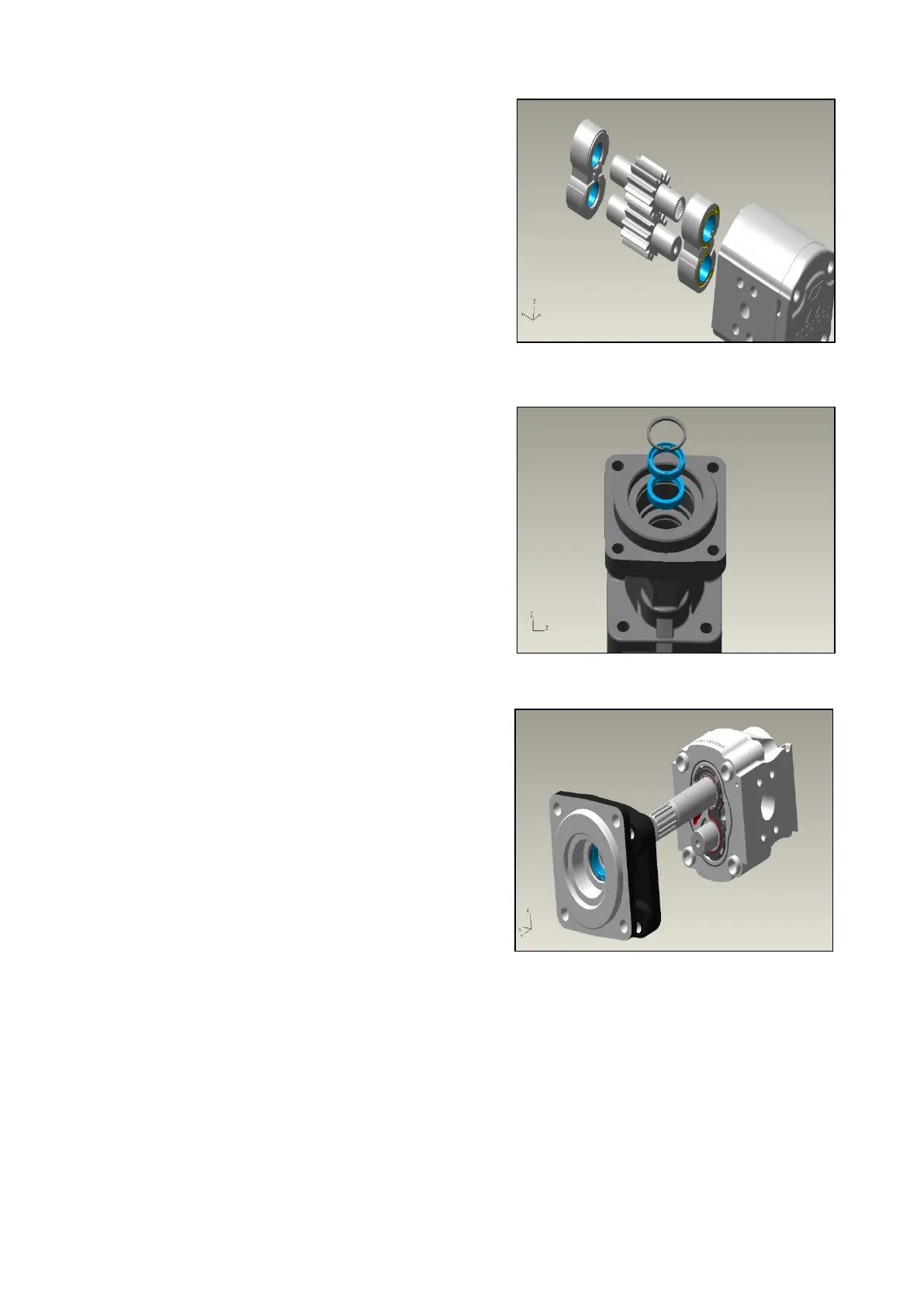

6. ①put one of preassembled pressure plates into
the body and locate two gears, then load another
plate upon the gears.
☞ pay attention the positions of gears and
directions of pressure plates.
7. ① Locate shaft seal inside shaft hole to the end.
② insert snap ring and locate it into the groove
prearranged.
8. ① Assemble mounting flange to the body, use
proper tools in order to avoid any damage on the
shaft seals by sharp edge of shaft
☞ Smear clean grease on the lips of shaft seals
before assembling.
SPC000013 Steer Pump
Page 12
