Cleaning, disinfection and sterilization
172 Instructions for use Fabius plus SW 3.n
Removing the compact breathing system
Before removing the compact breathing system,
the following hoses and cables must be removed:
– Flow sensor cable
–O
2 sensor cable and O2 sensor capsule
– Pressure measurement hose
– APL bypass hose
– PEEP/PMAX hose

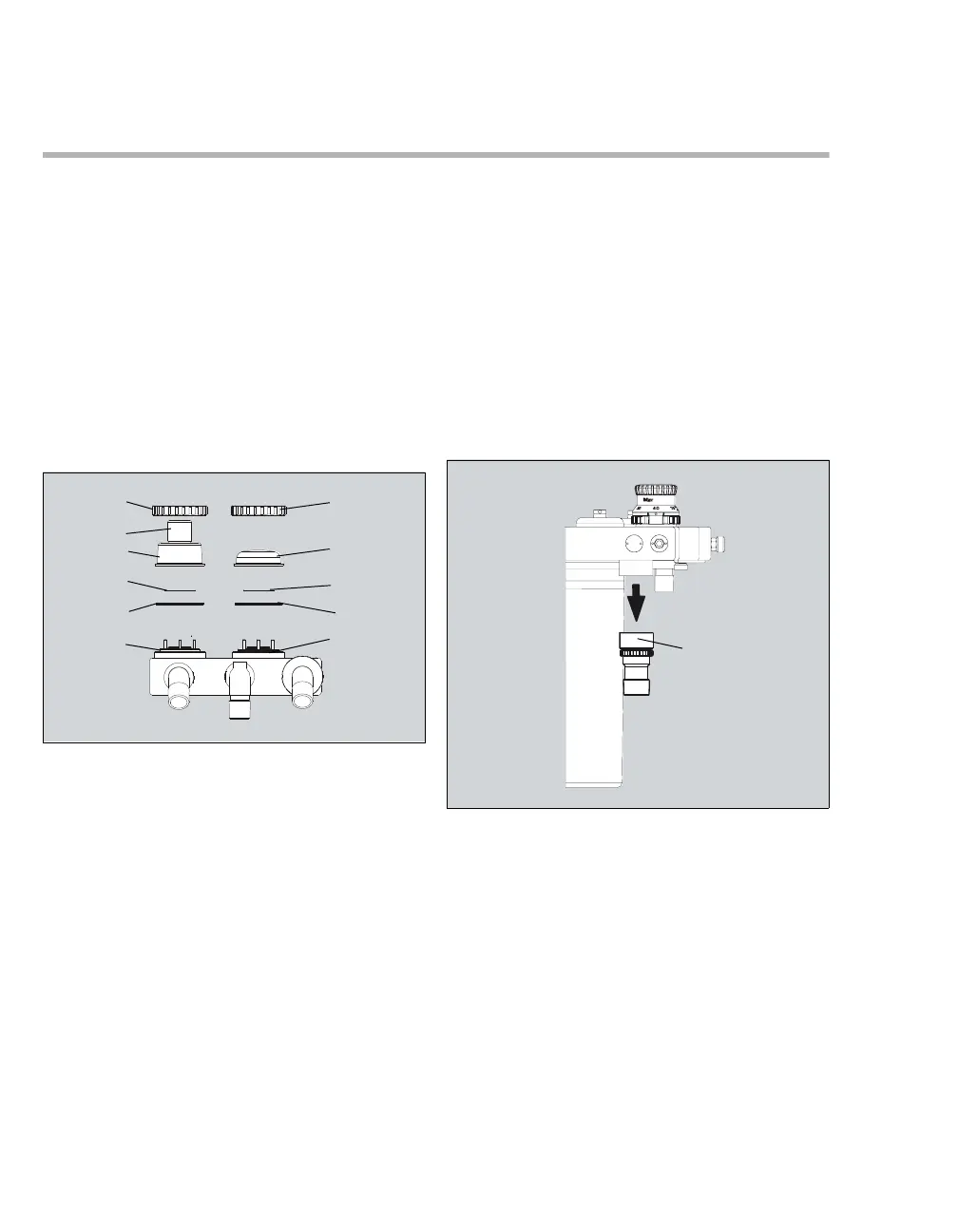

Removing the inspiratory valve
1 Remove the valve cover plug (B) or the O2
sensor from the dome (C) of the inspiratory
valve.
2 Screw off the cap nut (A).
3 Remove the dome (C).
4 Take out the valve plate (D).
5 Remove the sealing ring (E) from the socket
(F).
Removing the expiratory valve
1 Screw off the cap nut (G).
2 Remove the sight glass (H).
3 Take out the valve plate (I).
4 Remove the sealing ring (J) from the socket
(K).
Removing the exhaust port
 Screw off the exhaust port (A).
20980
A
B
C
D
E
F
G
H
I
J
K
20994
A
