Instruments/Controls
Locations - Instruments and controls

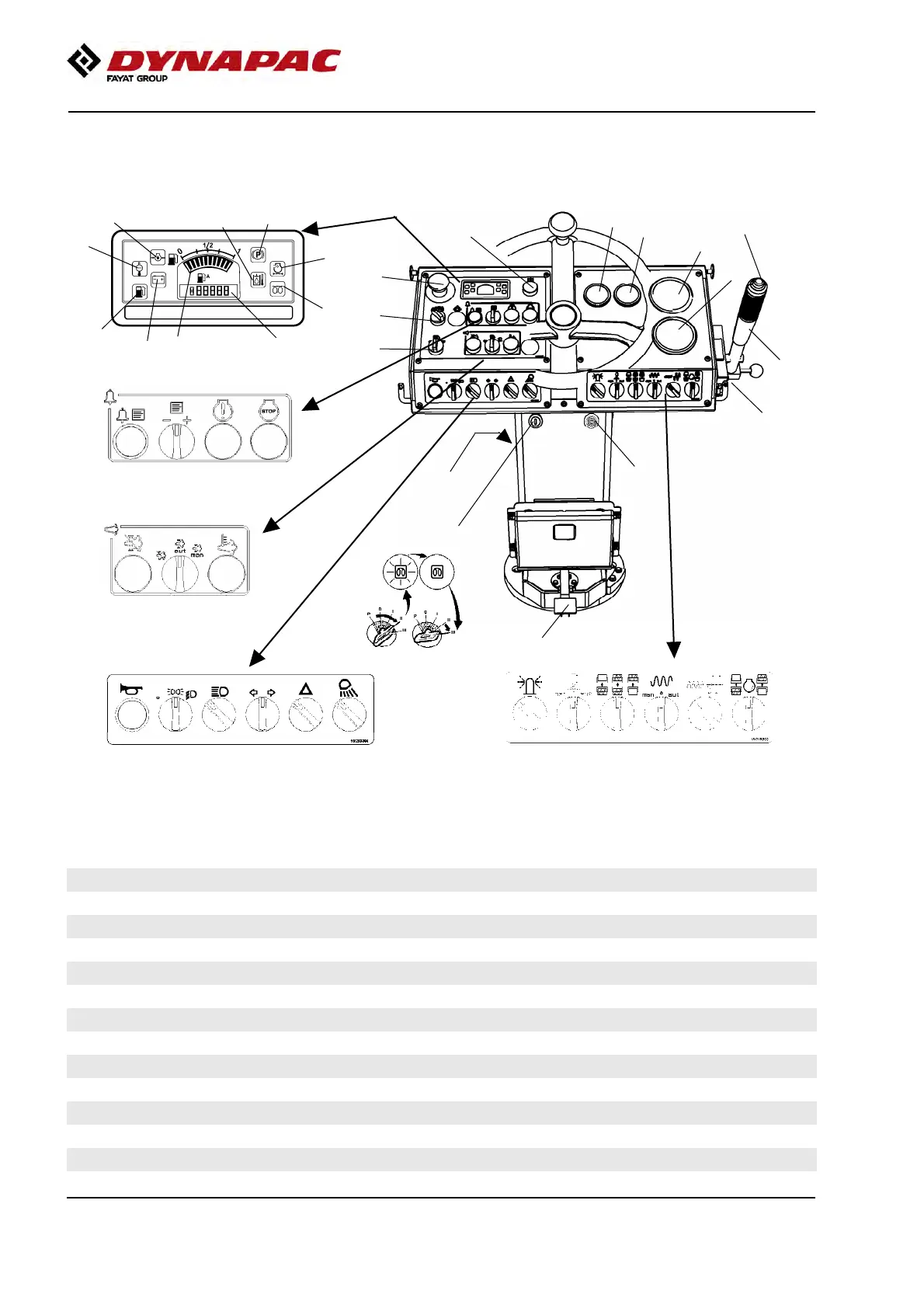

Fig. Instruments and control panel
40 41
42 43 44
16 17 18 19 20 21 22 23 24 25 26 27
1
2
3
4
5
6
7
8
9
10
11 12 13
14
15
28
29
30
31
32
33
34
35
36
37
38 39
1 Ignition lock 24 Vibration, front/rear drum1 Ignition lock 24 Vibration, front/rear drum
2 Emergency stop 25 Vibration switch, Man/Off/Auto2 Emergency stop 25 Vibration switch, Man/Off/Auto
3 Parking brake 26 Amplitude selector3 Parking brake 26 Amplitude selector
4 Speed switch 27 Speed/Frequency meter switch4 Speed switch 27 Speed/Frequency meter switch
5 Electric heater, Diesel engine 28 Beeper5 Electric heater, Diesel engine 28 Beeper
6 Hourmeter 29 Speed limiter6 Hourmeter 29 Speed limiter
7 Fuel level indicator 30 Forward/reverse lever7 Fuel level indicator 30 Forward/reverse lever
8 Warning lamp, charge 31 Vibration8 Warning lamp, charge 31 Vibration
9 Warning lamp, fuel level 32 Speed/Frequency meter9 Warning lamp, fuel level 32 Speed/Frequency meter
10 Warning lamp, engine temperature 33 Speedometer10 Warning lamp, engine temperature 33 Speedometer
11 Warning lamp, engine oil pressure 34 Temperature gauge - Hydraulic fluid11 Warning lamp, engine oil pressure 34 Temperature gauge - Hydraulic fluid
12 Warning lamp, hydraulic fluid temperature 35 Temperature gauge - Engine12 Warning lamp, hydraulic fluid temperature 35 Temperature gauge - Engine
13 Warning lamp, brakes 36 Lock pedal13 Warning lamp, brakes 36 Lock pedal
