Maintenance measures - 250 h
4812158801_E.pdf
2018-04-03

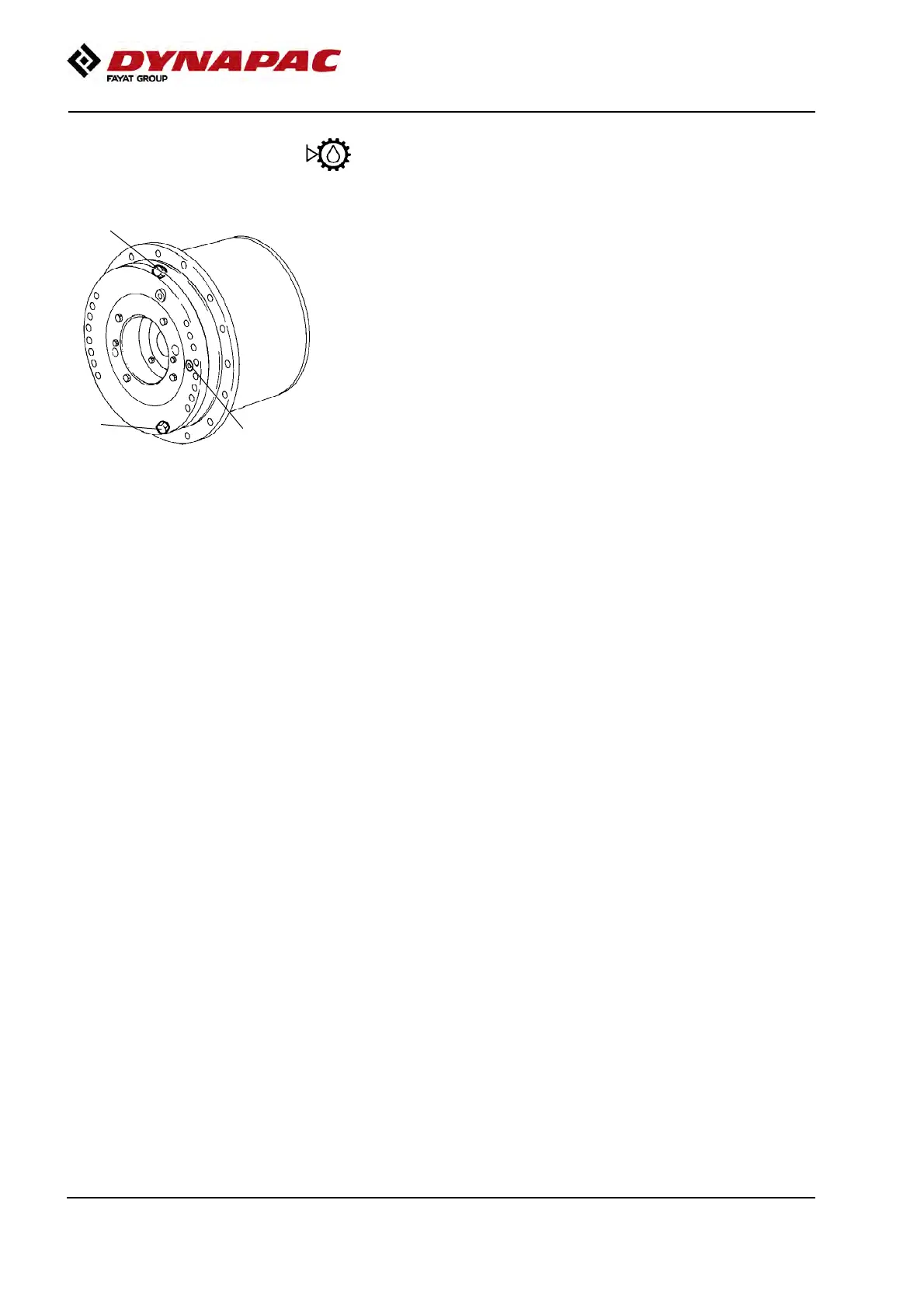

Drum drive - Checking the oil level
Fig. Drum drive
1. Filler plug
2. Drain plug
3. Level plug
1
2
3
Place the roller on a level surface so that filler plug (1)
is at the top. Wipe around the plugs.
The oil level must reach the level plug (3).
If necessary, remove the filler plug and fill with oil in
accordance with the lubricant specification, although
not more than up to the level plug.
82
89
91
Table of Contents
Table of Contents
3
Introduction
9
The Machine
9
Intended Use
9
Warning Symbols
9
Safety Information
9
General
10
CE Marking and Declaration of Conformity
11
Safety - General Instructions
13
Safety - When Operating
15
Work Driving
15
Driving Near Edges
16
Safety (Optional)
17
Air Conditioning (Optional)
17
Special Instructions
19
Standard Lubricants and Other Recommended Oils and Fluids
19
Higher Ambient Temperatures, above +40°C (104°F)
19
Lower Ambient Temperature - Freeze Risk
19
Temperatures
19
High Pressure Cleaning
19
Fire Fighting
20
Roll over Protective Structure (ROPS), ROPS Approved Cab
20
Battery Handling
20
Jump Starting
21
Technical Specifications
23
Vibrations - Operator Station
23
Noise Level
23
Slopes
23
Dimensions, Side View
24
Dimensions, Top View
25
Weights and Volumes
26
Working Capacity
26
General
27
Hydraulic System
27
ROPS - Bolts
27
Tightening Torque
28
Machine Description
29
Identification
29
Product Identification Number on the Frame
29
Explanation of 17PIN Serial Number
29
Machine Plate
30
Engine Plates
30
Decals
31
Safety Decals
32
Info Decals
33
Instruments/Controls
34
Locations - Instruments and Controls
34
Function Descriptions
35
Display/Regeneration of Diesel Particle Filter (DPF Filter)
39
Locations - Instruments and Controls, Cab
41
Function Description of Instruments and Controls in the Cab
42
Control Panel, Air Conditioning (Optional)
43
Fuses
44
Fuses in Cab
45
Relays in Engine Compartment
46
Relays in Control Column
46
Operation
47
Before Starting
47
Master Switch - Switching on
47
Water Tanks - Level
47
Control Table - Setting
47
Operator's Seat - Adjusting
48
Interlock
48
Parking Brake
49
Instruments and Lamps - Checking
49
Speed Limiter
50
View
50
Operator's Station
51
Starting
52
Starting the Engine
52
Driving
53
Operating the Roller
53
Interlock/Emergency Stop/Parking Brake - Check
54
Vibration
55
Manual/Automatic Vibration
55
Manual Vibration - Switching on
55
Amplitude - Changeover
56
Braking
56
Reserve Brake
56
Switching off
57
Parking
57
Chocking the Drums
57
Master Switch
58
Long-Term Parking
59
Engine
59
Battery
59
Air Cleaner, Exhaust Pipe
59
Sprinkler System
59
Fuel Tank
59
Hydraulic Reservoir
60
Steering Cylinder, Hinges, Etc
60
Hoods, Tarpaulin
60
Miscellaneous
61
Lifting
61
Locking the Articulation
61
Lifting the Roller
61
Unlocking the Articulation
62
Towing/Recovering
62
Short Distance Towing with the Engine Running
62
Towing Short Distances When the Engine Is Inoperative
63
Towing the Roller
64
Roller Prepared for Transport
64
Operating Instructions - Summary
65
Preventive Maintenance
67
Acceptance and Delivery Inspection
67
Warranty
67
Maintenance - Lubricants and Symbols
69
Maintenance Symbols
70
Maintenance - Maintenance Schedule
71
Service and Maintenance Points
71
General
72
Every 10 Hours of Operation (Daily)
72
After the FIRST 50 Hours of Operation
73
Every 50 Hours of Operation (Weekly)
73
Every 250 / 750 / 1250 / 1750 Hours of Operation
73
Every 500 / 1500 Hours of Operation
74
Every 1000 Hours of Operation
74
Every 2000 Hours of Operation
75
Maintenance, 10H
77
Diesel Engine Check Oil Level
77
Coolant Level - Check
78
Water Separator - Drainage
78
Brakes - Check
79
Sprinkler System - Check, Cleaning
79
Nozzle - Dismantling/Cleaning
80
Scrapers - Check, Adjustment
80
Hydraulic Reservoir, Level Check - Filling
81
Water Tanks - Filling
81
Fuel Tank - Filling
82
Maintenance - 50H
83
Air Cleaner
83
Checking - Change the Main Air Filter
83
Backup Filter - Change
84
Air Cleaner - Cleaning
84
Rubber Elements and Fastening Screws - Check
85
Articulation and Steering Cylinder - Lubrication
85
Hydraulic Reservoir - Check/Venting
86
Battery
86
Checking the Electrolyte Level
86
Battery Cell
87
Maintenance Measures - 250 H
89
Pump Drive - Oil Level, Check - Filling
89
Drum Drive - Checking the Oil Level
90
Maintenance Measures - 500 H
91
Drum - Checking the Oil Level
91
Controls and Moving Joints - Lubrication
92
Maintenance - 1000H
93
Hydraulic Fluid Filter - Replacement
93
Air Filter - Change
94
Backup Filter - Change
94
Fuel Tank - Drainage
95
Hydraulic Fluid Reservoir - Draining
96
Maintenance - 2000H
97
Hydraulic Reservoir - Replacing the Fluid/Filters
97
Drum - Changing the Oil
98
Drum Drive - Changing the Oil
99
Pump Drive - Changing the Oil
100
