Machine description
4812158801_E.pdf 2018-04-03

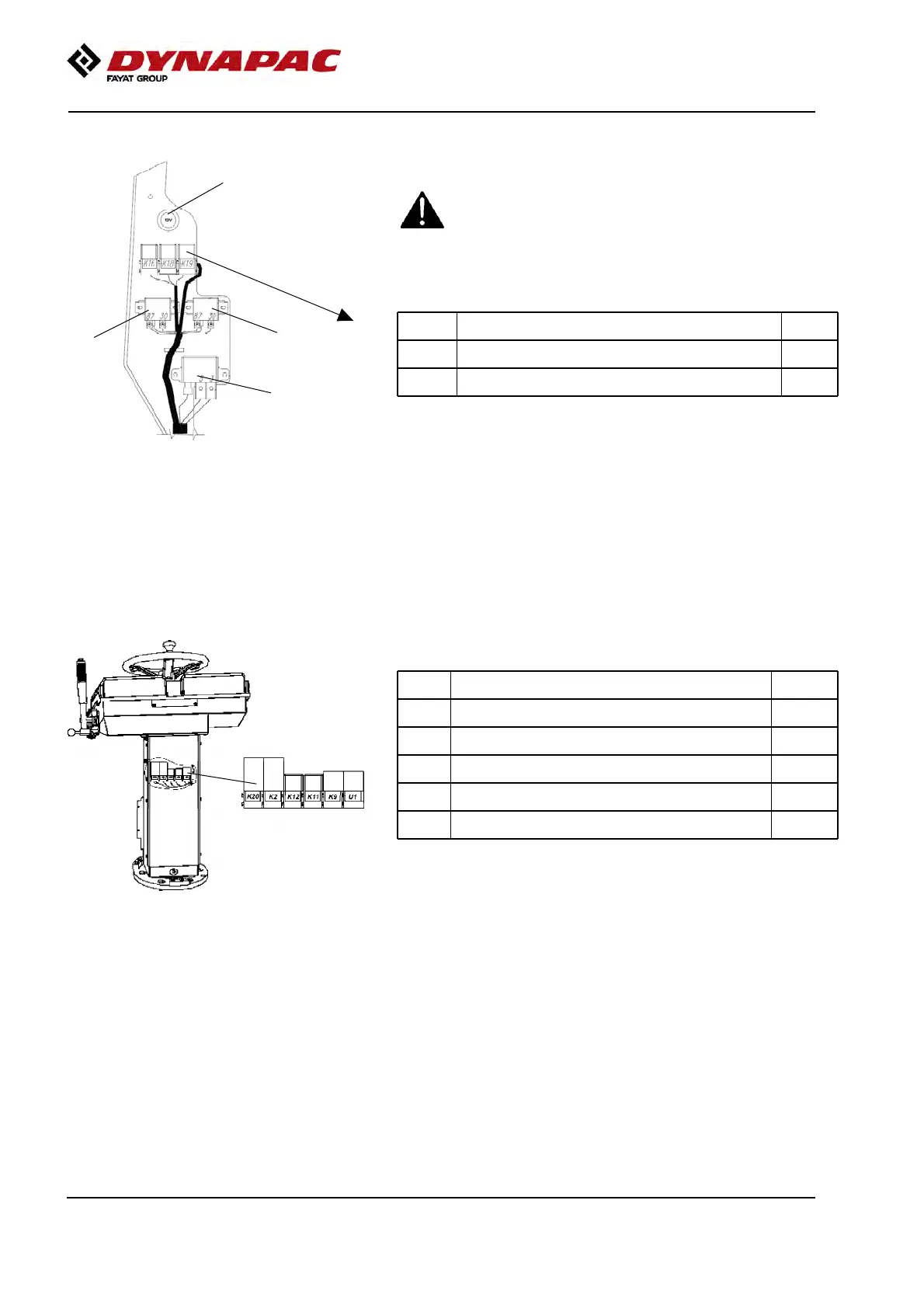

Relays in engine compartment
Fig. Engine compartment
1. Relay, preheating diesel engine (100A)
2. Relay, preheating diesel engine (100A)
3. Starter relay (120A)
4. Power socket 12V (Fuse 10A)
5. Relays (K16, K18, K19)
1
5
2
3
4
Connect the correct polarities (ground) to the
battery. The cable between the battery and the
alternator must not be disconnected when the
engine is running.
Connect the correct polarities (ground) to the
battery. The cable between the battery and the
alternator must not be disconnected when the
engine is running.
K16 Overspeed relay, diesel engine 30AK16 Overspeed relay, diesel engine 30A
K18 Shut-off relay, burnout 30AK18 Shut-off relay, burnout 30A
K19 Shut-off relay, starter motor 30AK19 Shut-off relay, starter motor 30A
Relays in control column
Fig. Control column
K20 Interlock relay 4 sec.K20 Interlock relay 4 sec.
K2 VBS relayK2 VBS relay
K12 Sprinkler relay 30AK12 Sprinkler relay 30A
K11 Neutral start 30AK11 Neutral start 30A
K9 Indicator relayK9 Indicator relay
U1 Tachograph (accessory)U1 Tachograph (accessory)
38
