Maintenance - 2000h
4812158801_E.pdf 2018-04-03

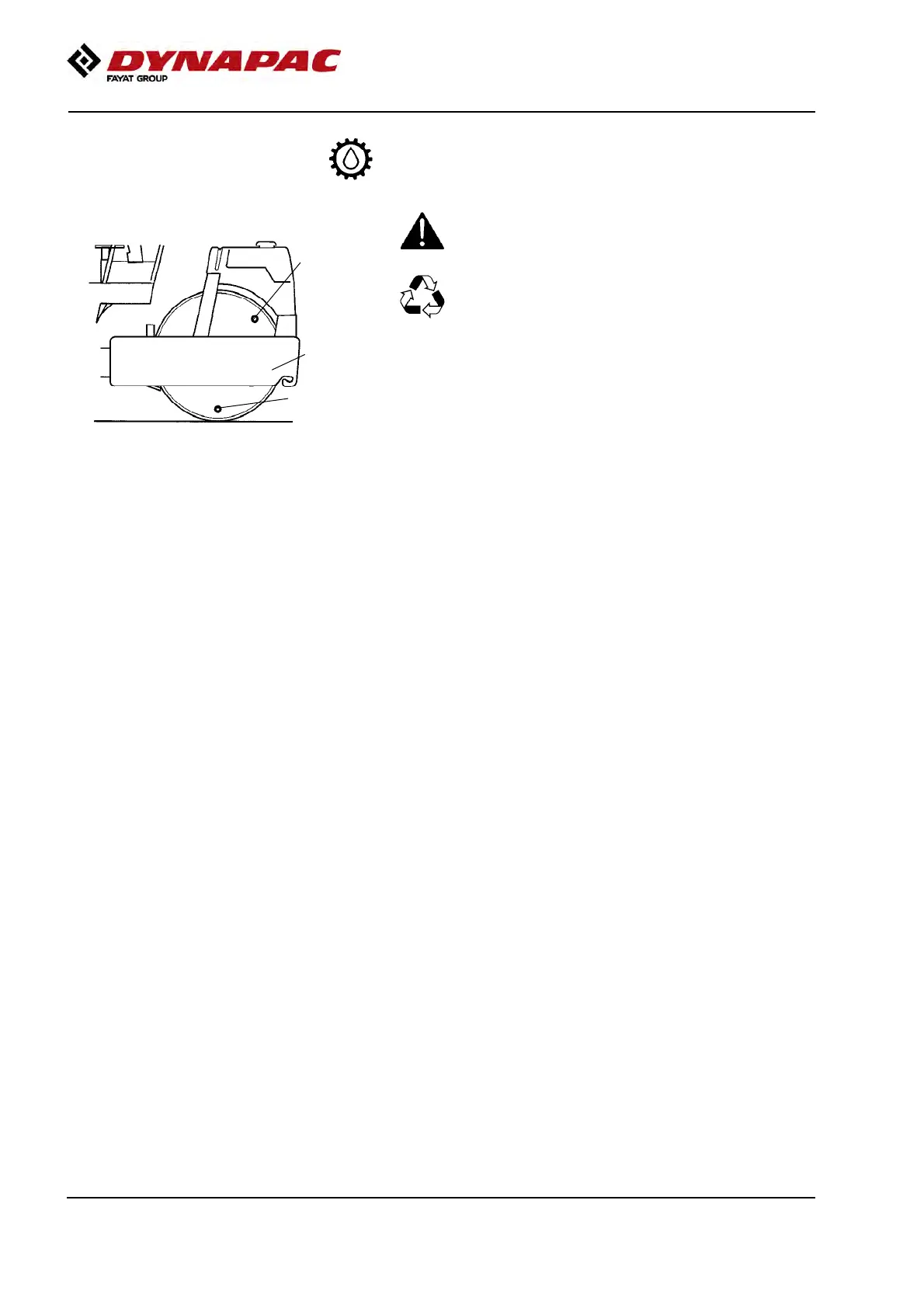

Drum - Changing the oil
Fig. Drum
1. Level pin
2. Drain/filler plug, M30
3. Level plug, M12
1
2
3
Switch off the engine, activate the parking brake
and disconnect the power.
Switch off the engine, activate the parking brake
and disconnect the power.
Collect and dispose of the drained oil for
environmentally correct handling.
Collect and dispose of the drained oil for
environmentally correct handling.
Applies to both sides of the drum:
After warming up, place the roller on a flat surface so
that the plugs (2) are at the bottom. Wipe around the
plugs.
Remove the plug (2) on one side and drain the oil,
approximately 27 liters, into a suitable receptacle.
Drain the oil in the same way on the other side. Clean
the plugs and wait until all the oil has run out. Wipe up
any spilled oil.
Drive the roller until the plugs (2) are at the top and the
level pin is level with the top of the front frame member.
Fill with oil in accordance with the Lubricant
specification until the level reaches the plug (3). Refit
the plugs and wipe up any spilled oil.
90
