Maintenance measures - 500 h
4812158801_E.pdf
2018-04-03
Controls and moving joints - Lubrication

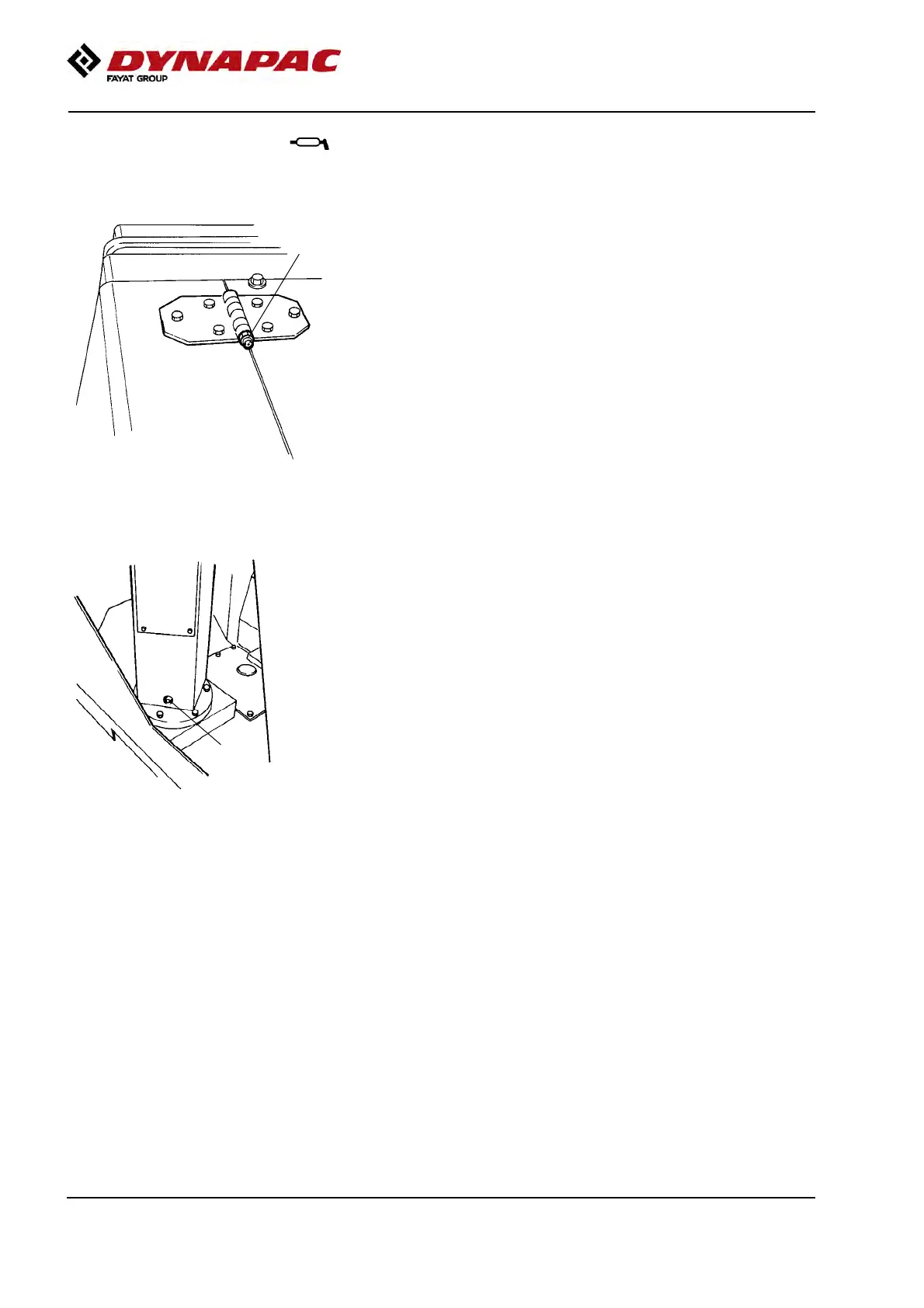

Fig. Hinge on hood
1. Grease nipple
1
Lubricate the hinges for the hood, side windows and
any cab doors with grease. Also lubricate the slide
rails for the operator's seat and the control table's
bearing with grease; lubricate other joints and controls
with oil. See the lubricant specification..
Fig. Control column
1. Grease nipple
1
84
91
93
