Machine description
4812158801_E.pdf2018-04-03

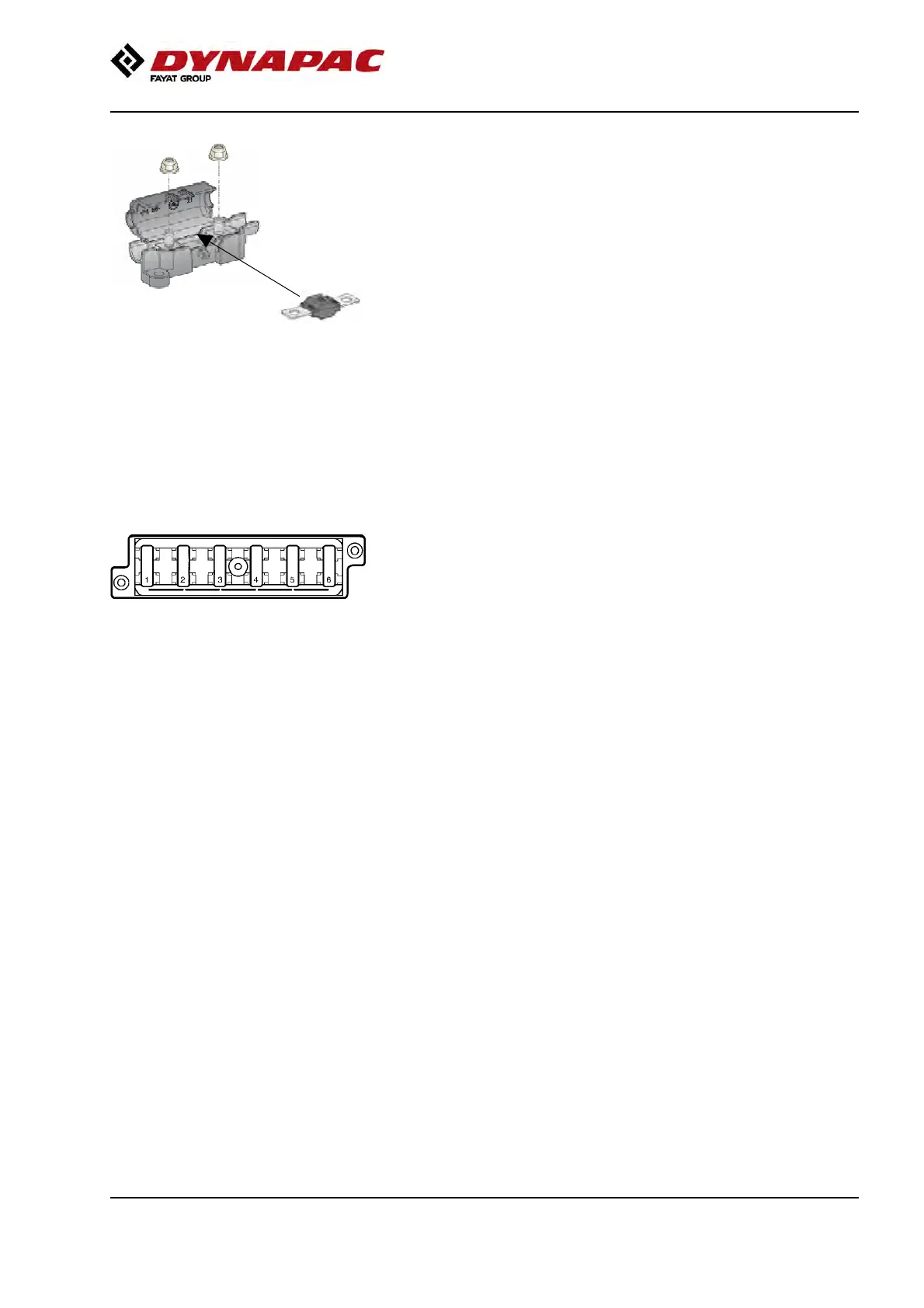

Fig. Fuses for the diesel engine's preheating.
Under the platform, close the battery disconnector
switch, there are also two fuse holders for the diesel
engine's preheating (F20, F21).
These are "screw connection" fuses, and both are 80A
fuses.
Fuses in cab
Fig. Fuse box in cab (optional)
1. Cab lighting/washers1. Cab lighting/washers
2. Ventilation fan2. Ventilation fan
3. Lights, rear3. Lights, rear
4. Lights, front4. Lights, front
5. Wipers, front and sides5. Wipers, front and sides
6. Cab heater6. Cab heater
The electrical system in the cab has a separate fuse
box located on the front right side of the cab roof.
The figure shows fuse amperage and function.
All fuses are flat pin fuses.
