Miscellaneous
Lifting
Locking the articulation
2
3

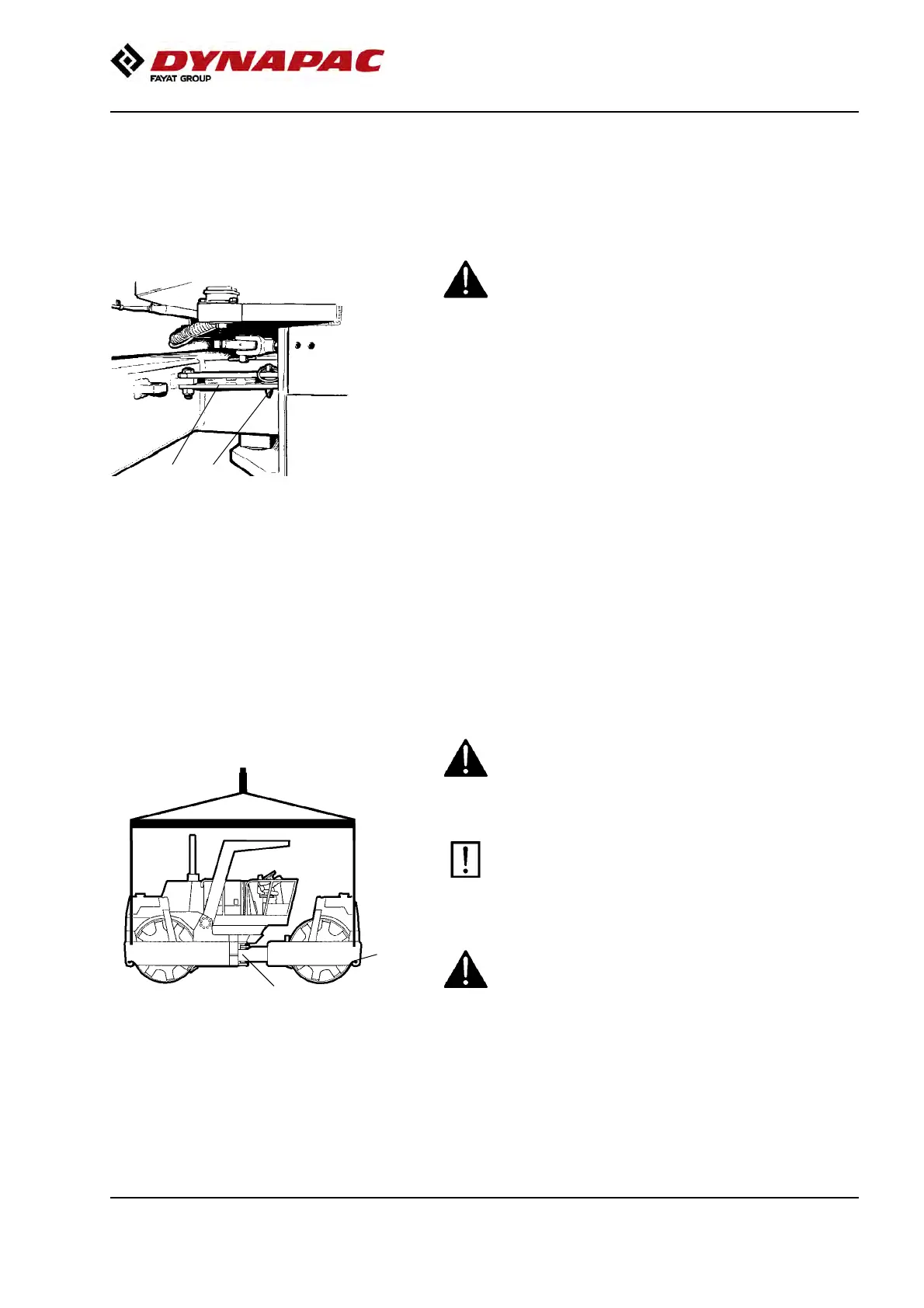

Fig. Articulation lock in the locked
position
2. Locking dowel
3. Locking arm
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Turn the steering wheel to the straight ahead position.
Activate the parking brake.
Pull out the lowermost locking pin, which has a a wire
attached. Pull up the locking dowel (2), which also has
a wire attached.
Fold out the locking arm (3) and position it over the
locking lug on the rear machine frame.
Fit the locking dowel in the holes through the locking
arm and locking lug and secure the dowel in position
with the locking pin.
Lifting the roller
Weight: refer to the hoisting plate on
the roller
1
2
Fig. Roller prepared for lifting
1. Hoisting plate
2. Articulation lock
The machine's gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The machine's gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
Lifting gear such as chains, steel wires, straps,
and lifting hooks must conform with current
regulations.
Lifting gear such as chains, steel wires, straps,
and lifting hooks must conform with current
regulations.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
53
