Maintenance measures - 500 h
4812158801_E.pdf2018-04-03
Maintenance measures - 500 h
Every 500/1500..... hours of operation (every six
months)
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.

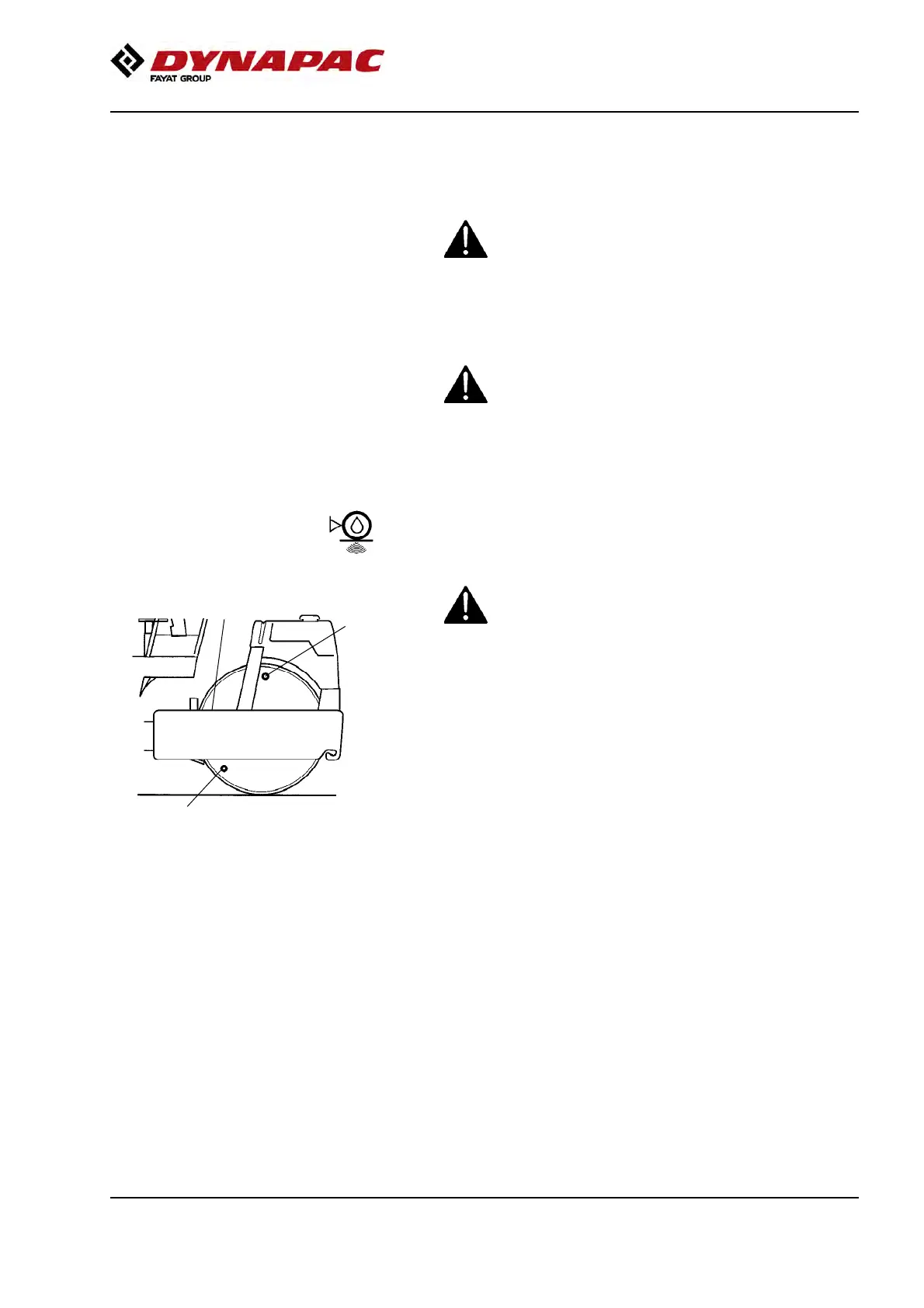

Drum - Checking the oil level
Fig. Drum
1. Level pin
2. Filler plug, M30
3. Level plug, M12
1
2
3
Switch off the engine, activate the parking brake
and disconnect the power.
Switch off the engine, activate the parking brake
and disconnect the power.
Place the roller on a level surface so that level pin (1)
is level with the top of the front frame member. Wipe
around the plugs.
The oil level must reach the level plug (3).
If necessary, remove the filler plug (2) and fill with oil
in accordance with the oil specification, although not
more than up to the level plug.
83
