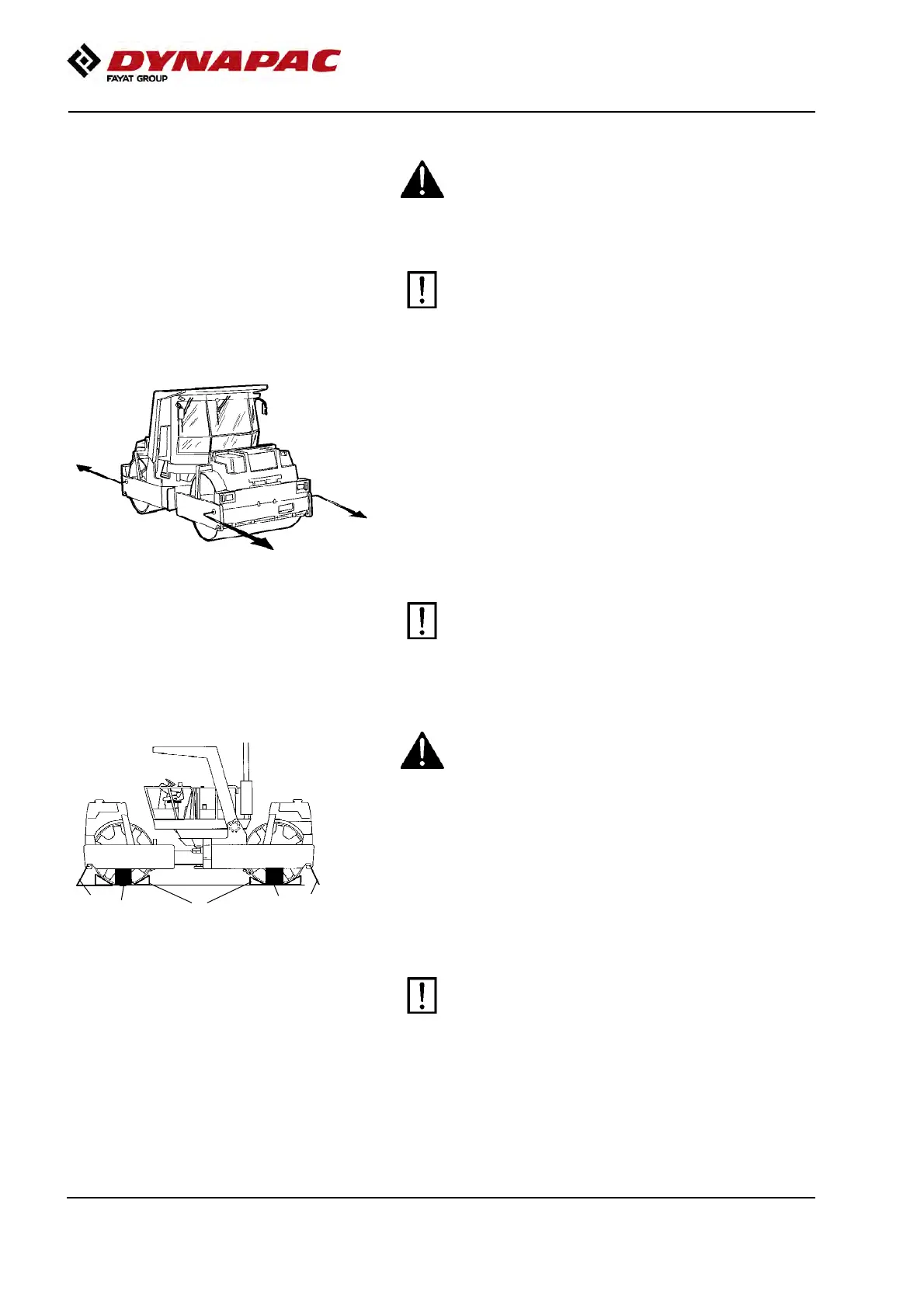

Towing the roller
When towing/recovering, the roller must be braked
by the towing vehicle. A towing bar must be used
as the roller has no brakes.
When towing/recovering, the roller must be braked
by the towing vehicle. A towing bar must be used
as the roller has no brakes.
The roller must be towed slowly, max. 3 km/h (2
mph) and only towed short distances, max. 300 m
(330 yards).
The roller must be towed slowly, max. 3 km/h (2
mph) and only towed short distances, max. 300 m
(330 yards).
Fig. Towing
When towing/retrieving a machine, the towing device
must be connected to both lifting holes. The pulling
force must act longitudinally on the machine as shown
in the figure. Maximum gross pulling force 265 kN
(59575 lbf).
Reverse the towing preparations.Reverse the towing preparations.
Roller prepared for transport
Fig. Positioning
1. Chocks
2. Blocks
3. Straps
1
2
3
3
2
Lock the articulation before lifting and
transporting. Follow the instructions under the
relevant heading.
Lock the articulation before lifting and
transporting. Follow the instructions under the
relevant heading.
Chock the drums (1) and secure the chocks to the
transport vehicle.
Block up under the drum frame (2), to avoid overload
on the rubber suspension of the drum when lashing.
Clamp down the roller with lashing strap (3) at all four
corners; decals indicate the fixing points.
Remember to return the articulation to its
unlocked position before starting the roller.
Remember to return the articulation to its
unlocked position before starting the roller.
56
