Maintenance - Maintenance schedule
4812158801_E.pdf2018-04-03
Maintenance - Maintenance schedule
Service and maintenance points
7
17
13
20
5
1
2
9
6
3
2
1
14
15
8
19
10
11
4
18
16
12

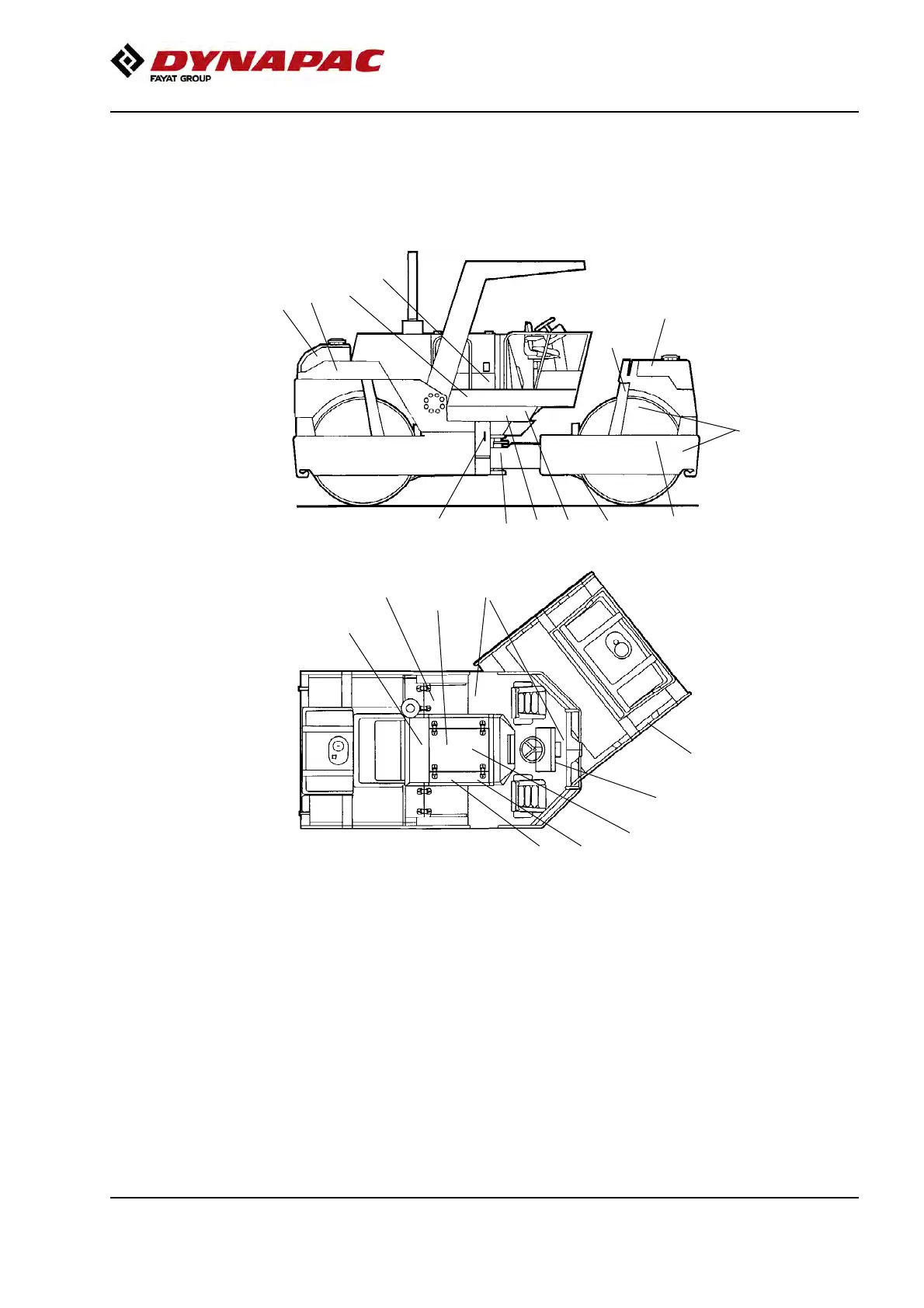

Fig. Service and maintenance points
1. Water tanks 8. Rubber elements 15. Driving belts1. Water tanks 8. Rubber elements 15. Driving belts
2. Sprinkler system 9. Hydraulic pump operation 16. Drum drive2. Sprinkler system 9. Hydraulic pump operation 16. Drum drive
3. Fuel tank 10. Hydraulic fluid filter 17. Control table3. Fuel tank 10. Hydraulic fluid filter 17. Control table
4. Engine mounting 11. Articulation/steering
cylinder
18. Air filter4. Engine mounting 11. Articulation/steering
cylinder
18. Air filter
5. Fuses 12. Hydraulic fluid reservoir 19. Engine oil level5. Fuses 12. Hydraulic fluid reservoir 19. Engine oil level
6. Drum oil filling/level 13. Battery 20. Fuel filter6. Drum oil filling/level 13. Battery 20. Fuel filter
7. Scrapers 14. Radiator7. Scrapers 14. Radiator
