Maintenance - 2000h
4812158801_E.pdf2018-04-03
Drum drive - Changing the oil

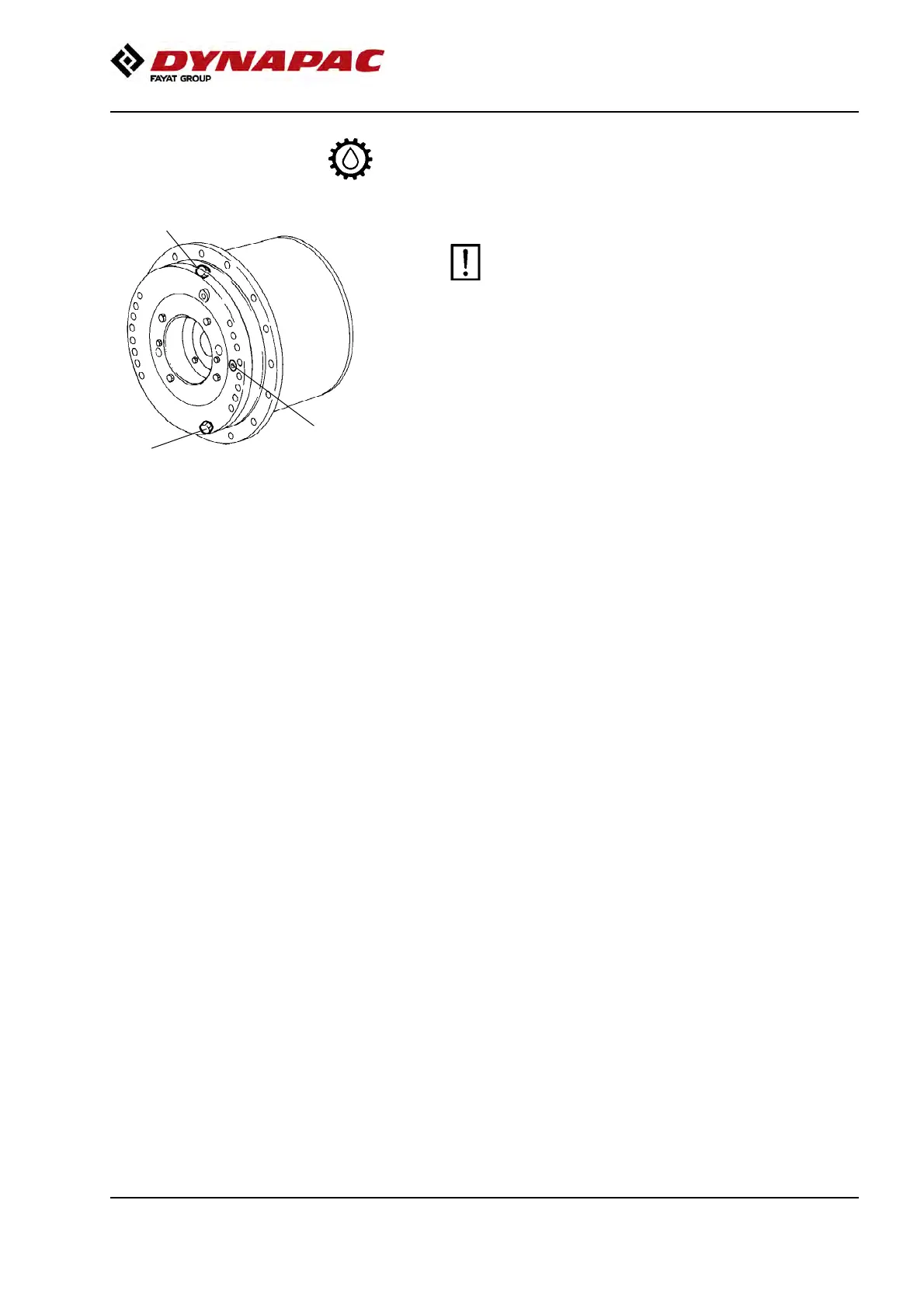

Fig. Drum drive
1. Filler plug
2. Drain plug
3. Level plug
3
1
2
Applies to both drums:
Before replacing the oil, it is important that the
roller has been warmed up for a sufficient length
of time in order for the oil to have warmed up
and thinned prior to draining. This makes it
easier for any contaminants to leave the
reservoir with the fluid. Bear cleanliness in mind
when working with hydraulic components.
Before replacing the oil, it is important that the
roller has been warmed up for a sufficient length
of time in order for the oil to have warmed up
and thinned prior to draining. This makes it
easier for any contaminants to leave the
reservoir with the fluid. Bear cleanliness in mind
when working with hydraulic components.
Take great care when draining warm fluids and
oils. Wear protective gloves and goggles.
Take great care when draining warm fluids and
oils. Wear protective gloves and goggles.
Place the roller on a level surface so that drain plug (2)
is at the bottom. Wipe around the plugs.
Place a receptacle under the drain plug and drain the
oil. The receptacle must hold at least 4 liters.
Remove the filler plug (1) and the level plug (3). Wait
until all the oil has run out. Clean any metal residue
from the plugs. Refit the drain plug and fill with oil in
accordance with the lubricant specification, although
not more than up to the level plug. Refit the plugs.
Wipe up any spilled oil.
