Maintenance, 10h
4812158801_E.pdf2018-04-03
Hydraulic reservoir, Level check - Filling

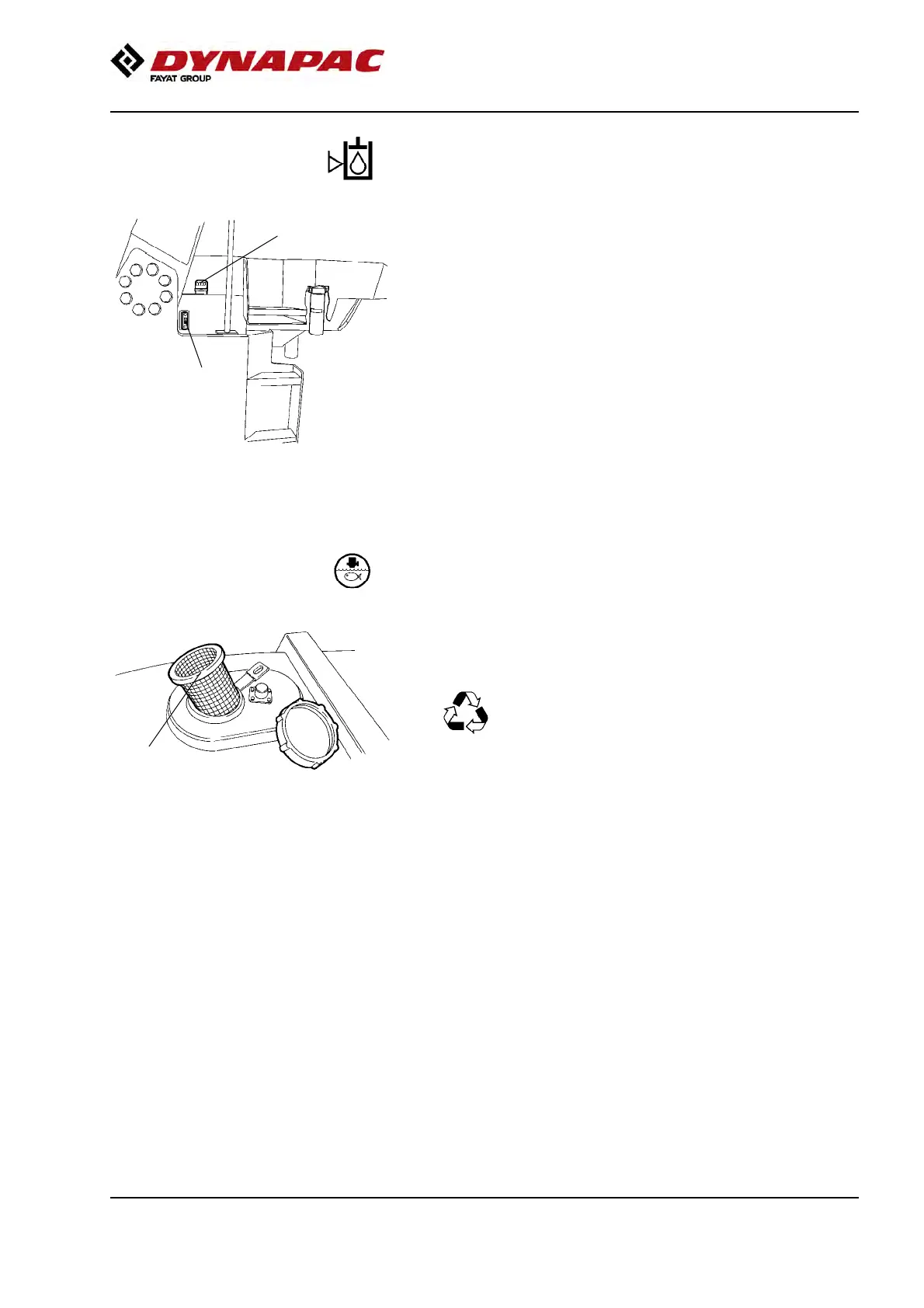

Fig. Hydraulic reservoir
1. Sight glass
5. Filler cap
1
5
Place the roller on a level surface and check the fluid
level in the sight glass (1).
Top up with new hydraulic fluid if the level is more than
19 mm from the upper edge of the sight glass.
Clean around the filler cap (5) before the cap is
removed. Check that the strainer in the filler pipe is
intact.
Fill with fresh hydraulic fluid of the grade indicated in
the Lubricant specification.
Water tanks - Filling
Fig. Water tank
1. Strainer
1
Unscrew the tank cap, check that the strainer (1) is
intact. If necessary life out the strainer for cleaning.
Use clean water when filling.
Only additive: A small amount of environmentally
friendly antifreeze.
Only additive: A small amount of environmentally
friendly antifreeze.
73
