ACCESSORIES
High Pressure Blower
Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
3-39
INSTALLING THE BLOWER ARM ASSEMBLIES
Repeat the following steps for each blower arm assembly.
1 Place a 1/4-inch thick poly washer around the pin on the blower arm assembly.
2 Insert the pin on the blower arm assembly into the dyno.
3 Secure the clamp lever to the dyno.

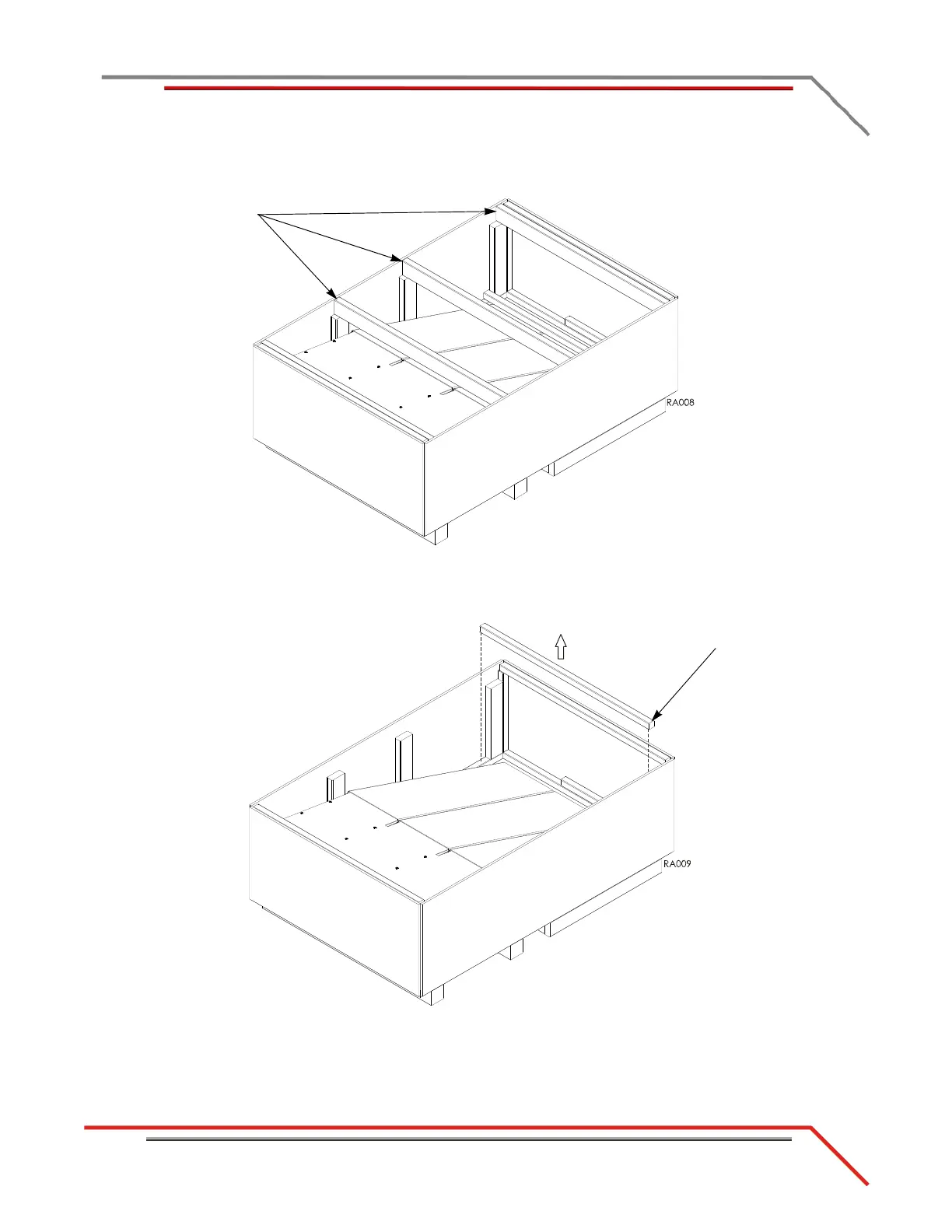

Figure 3-44: Install the Blower Arm Assemblies
clamp lever
1/4-inch thick
poly washer
blower arm
assembly
blower arm
assembly
clamp lever
lower arm has
longer pin
upper arm has
longer arm
