CHAPTER 2
Tire Carriage Installation
Above Ground Model 250i Motorcycle Dynamometer Installation Guide
2-40
6 Starting from the back of the dyno, slide the carriage under the carriage clamps.
7 Slide the hand wheel onto the end of the carriage screw.
8 Secure the hand wheel to the screw shaft by tightening the set screw using a
5/32-inch allen wrench.
9 Slide the carriage screw and the bearing bracket toward the nut block until the
carriage screw is touching the nut block.
10 Using the hand wheel, screw the carriage through the nut block and into the screw
support bracket.
Note: If you ordered the power carriage accessory, you will not have the hand
wheel. Carefully turn the carriage screw using pliers.
11 Secure the bearing bracket to the carriage using four 1/4-20 x 1/2-inch
button-head flange bolts removed earlier.
Note: If you ordered the power carriage accessory, refer to “Power Carriage” on
page 3-35 for installation instructions.

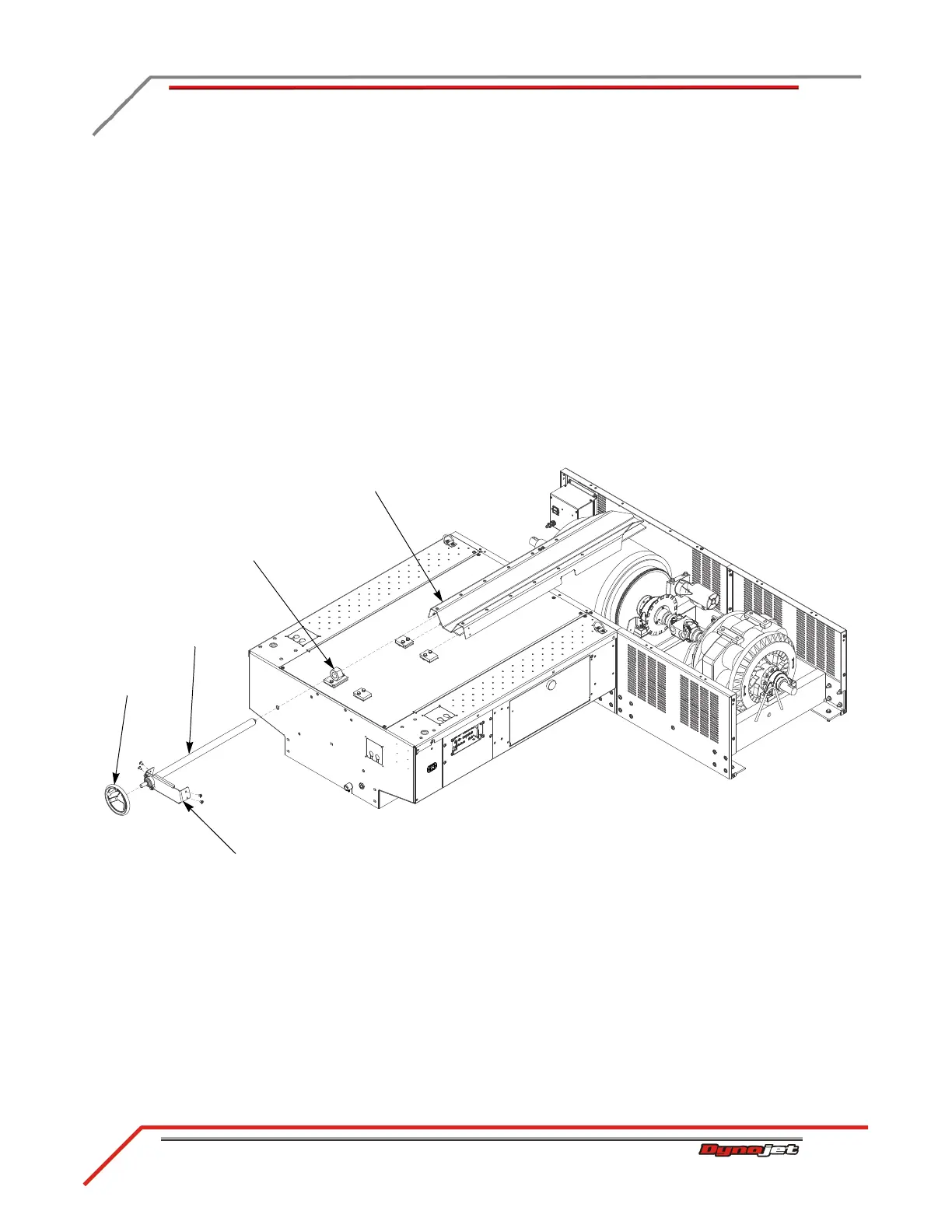

Figure 2-36: Install the Tire Carriage and Secure the Hand Wheel
hand wheel
carriage
bearing bracket
carriage screw
nut block
