Above Ground Model 250i Motorcycle Dynamometer Installation Guide
3-40
4 Bring the wheel clamp cable (three-pin connector) from the front of the dyno over
to the wheel clamp. Refer to “Cable Routing” on page 2-28 for more information.
5 Install the wheel clamp cable strain relief to the side of the wheel clamp.
6 Plug the wheel clamp cable into the connector on the wheel clamp motor.

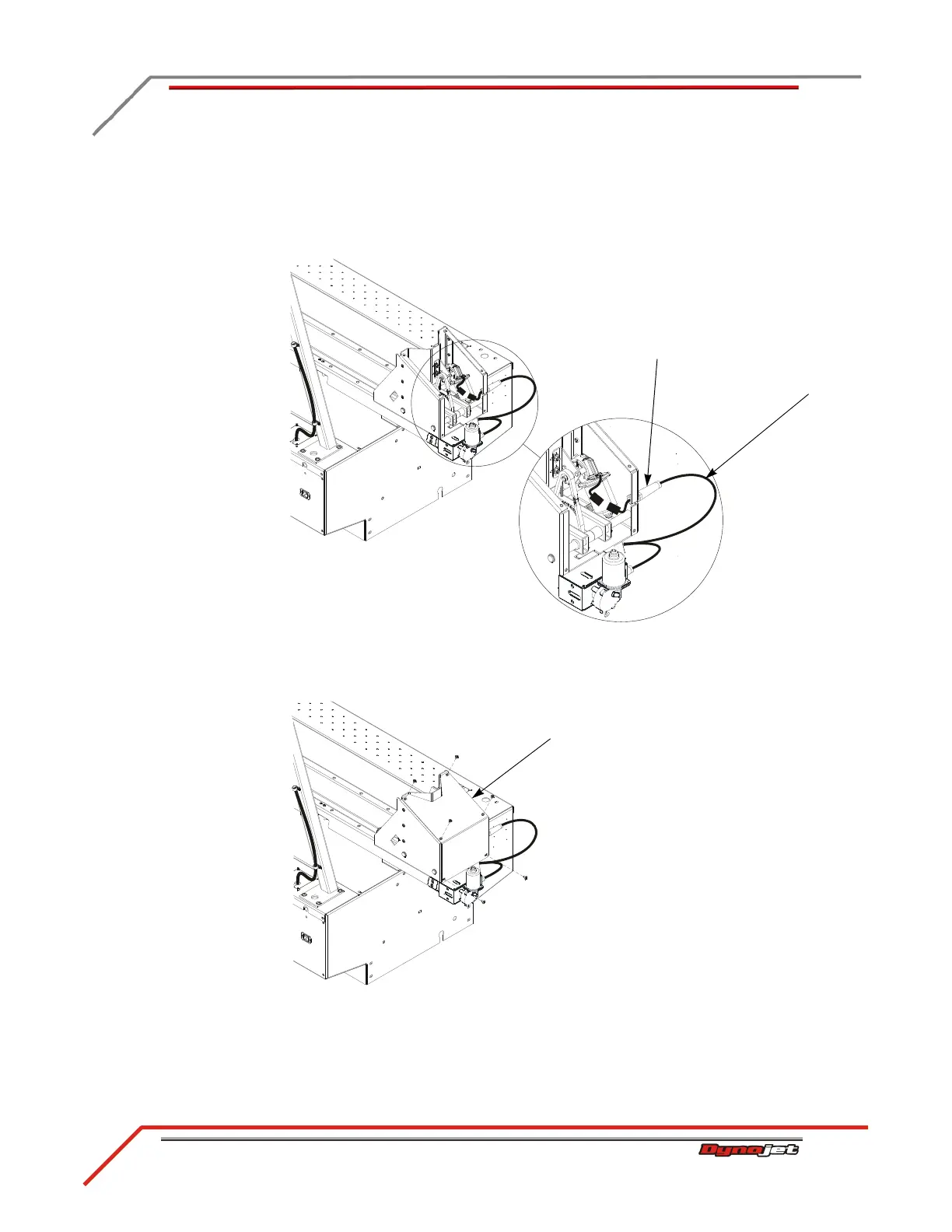

Figure 3-41: Install Wheel Clamp Strain Relief
7 Replace the wheel clamp cover.
Figure 3-42: Replace the Wheel Clamp Cover
strain relief
wheel clamp cable
