Model 200i and 250i Motorcycle Dynamometer Installation Guide
CHAPTER 3
High Pressure Blower
3-40
INSTALLING THE HIGH PRESSURE BLOWER ASSEMBLIES
Repeat the following steps for each blower assembly.
Note: Make sure the motor on each blower is facing out (away from the dyno)
and that the intake is facing in.
1 Place a 1/8-inch thick poly washer around the pin on the blower assembly.
2 Insert the pin on the blower assembly into the blower arm.

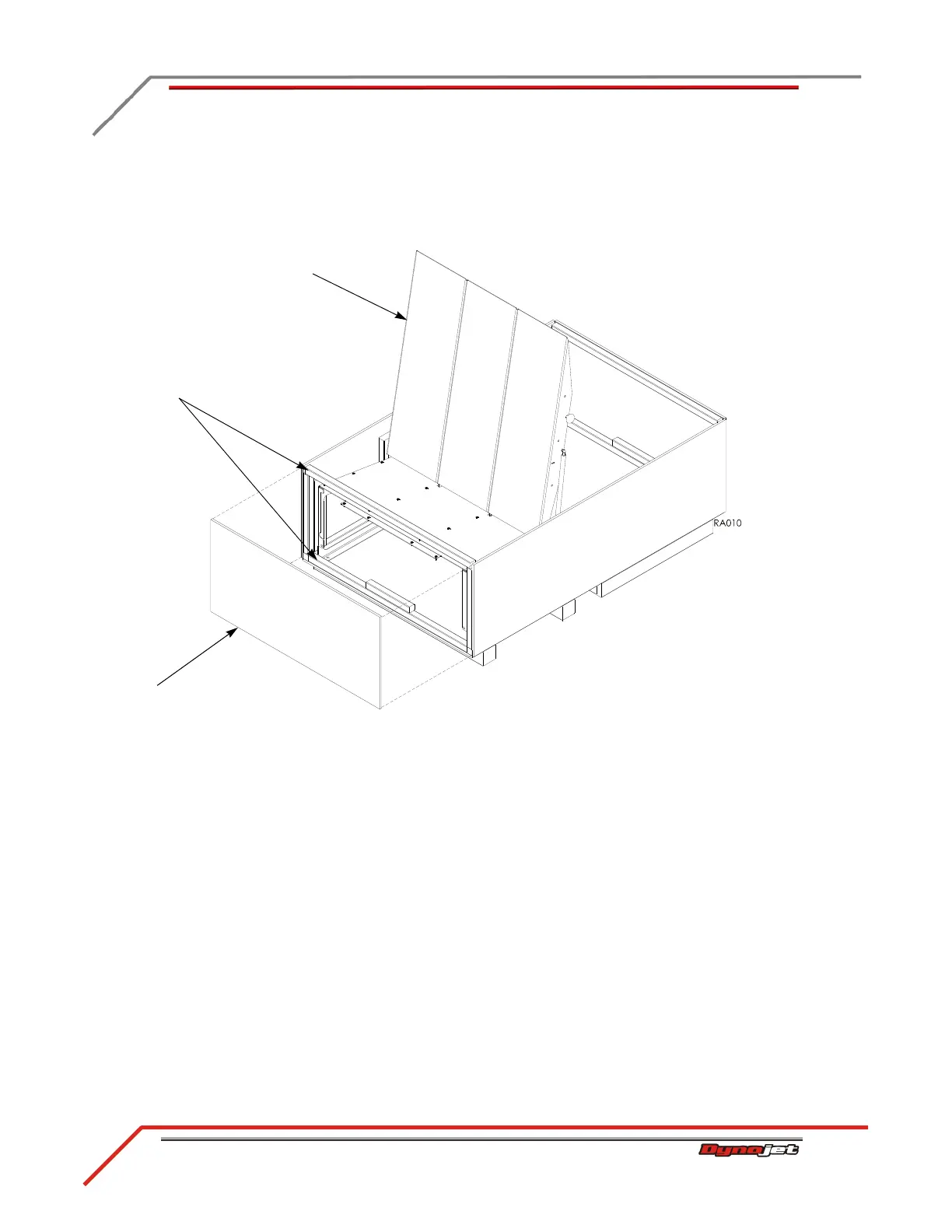

Figure 3-45: Install the Blower Assemblies
blower assembly
1/8-inch thick
poly washer
blower arm
motor facing out
intake facing in
