DYNO INSTALLATION
Eddy Current Brake Installation
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
6 Remove the side drum cover, if not already removed, from the dyno.
Refer to Figure 2-4 on page 2-5.
7 Place the nylon loop strap through the lifting eyes on either side of the brake.
8 Using a forklift, lift the eddy current brake from the crate and place the brake near
the dyno making sure the panels on the brake and dyno are parallel.
9 Remove the eight bolts, washers, and nuts from the dyno frame where the
connector plates will attach.

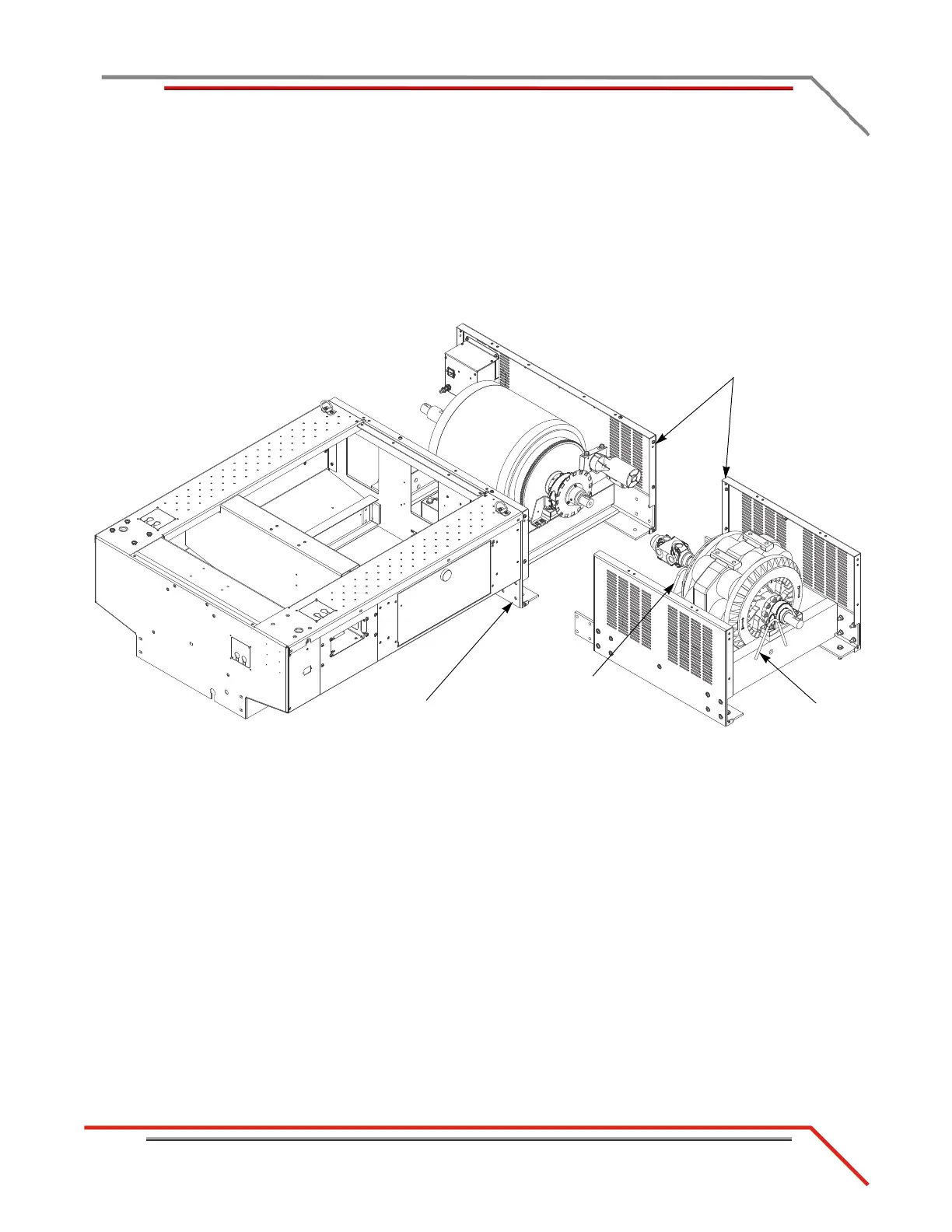

Figure 2-15: Move the Brake Next to the Dyno
lifting eye
lifting eye
line up panels
remove bolts, washers, and
nuts from dyno frame
