Above Ground Model 250i Motorcycle Dynamometer Installation Guide
2-36
ROUTING THE POWER CARRIAGE AND WHEEL CLAMP CABLES
The power carriage and wheel clamp are optional accessories. These cables will only
be used if you ordered the accessories.
For installation instructions refer to “Power Carriage” on page 3-35 and “Wheel
Clamp” on page 3-39 for more information.
1 Remove the two screws securing the cable pass through cover on the front of the
dyno and set aside.
2 Locate the cables bundled inside the dyno.
3 Route the power carriage and wheel clamp cables through the opening in the front
of the dyno.

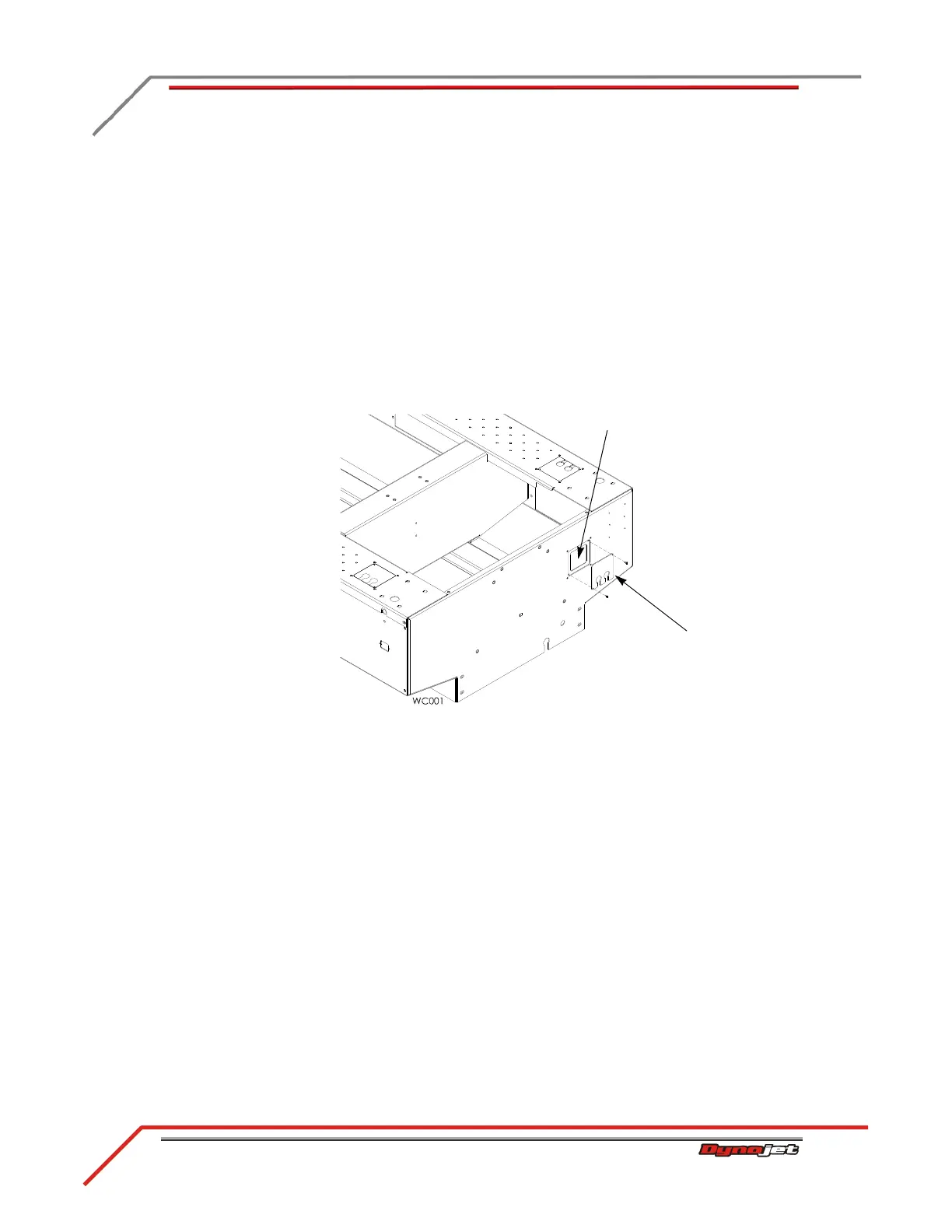

Figure 2-32: Remove the Cable Pass Through Cover
route cables
through
cable pass through
cover
