2-35
DYNO INSTALLATION
Cable Routing
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
5 Secure the control panel to the monitor tray using two 8-32-inch screws.
Note: If you did not order a monitor tray, install the control panel spindle to the
back of your control panel using four 8-32 screws. Once installed, place the
spindle on the control panel into the support arm where the monitor tray is shown
in Figure 2-31.
6 Place the pendant in the slot provided on the control panel and route the cable
bundle along the support arms with service loops to allow movement.
7 If you plan to route your cables through a zip tube refer to “Zip Tube” on page 2-54
and skip the following steps.
8 Attach the cable bundle with the cable clamps that are provided using 8-32-inch
screws. Adjust the service loops to allow for easy movement of the monitor arms
without pulling on the cables.

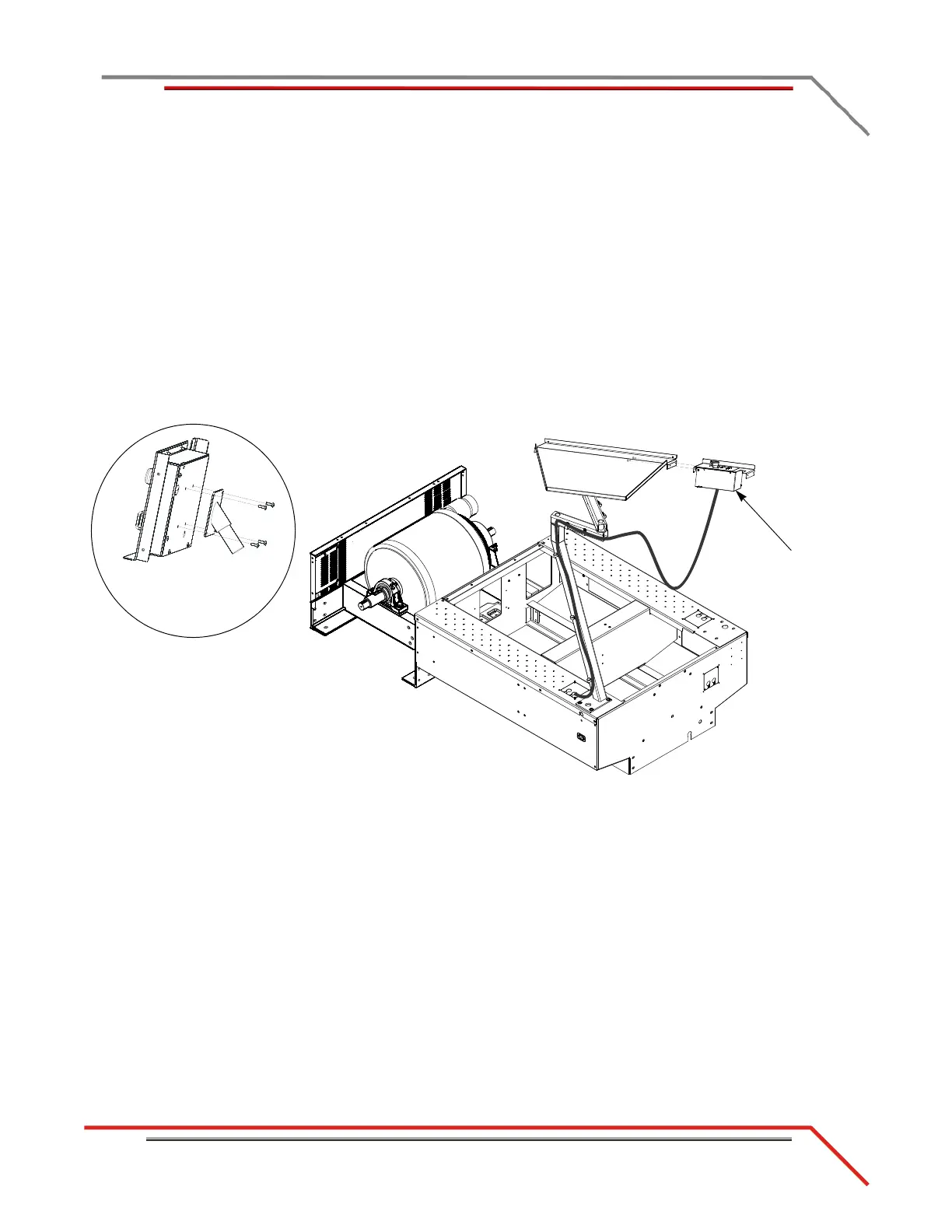

Figure 2-31: Install the Control Panel
CP035
CP023
control panel
install control panel
spindle if you did not
purchase the monitor
tray
