C-5
EEC KIT
EEC Finger Guards Installation
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
ADJUSTING THE EEC FINGER GUARDS
Once the drum module hood is installed, the EEC finger guards will need to be
adjusted.
1 Loosen the 1/4-20-inch pan-head torx screws and adjust the EEC finger guards so
they are 0.16 cm to 0.64 cm (0.0625 in. to 0.25 in.) from the drum. Tighten the
screws.
2 Check the EEC finger guards regularly to verify the clearance has not changed.
Note: For clarity, the eddy current brake and dyno carriage are not shown.
Do not operate the dynamometer without the EEC finger guards properly
installed. The gap between the finger guards and the drum must be less
than 0.64 centimeters (0.25 inches).

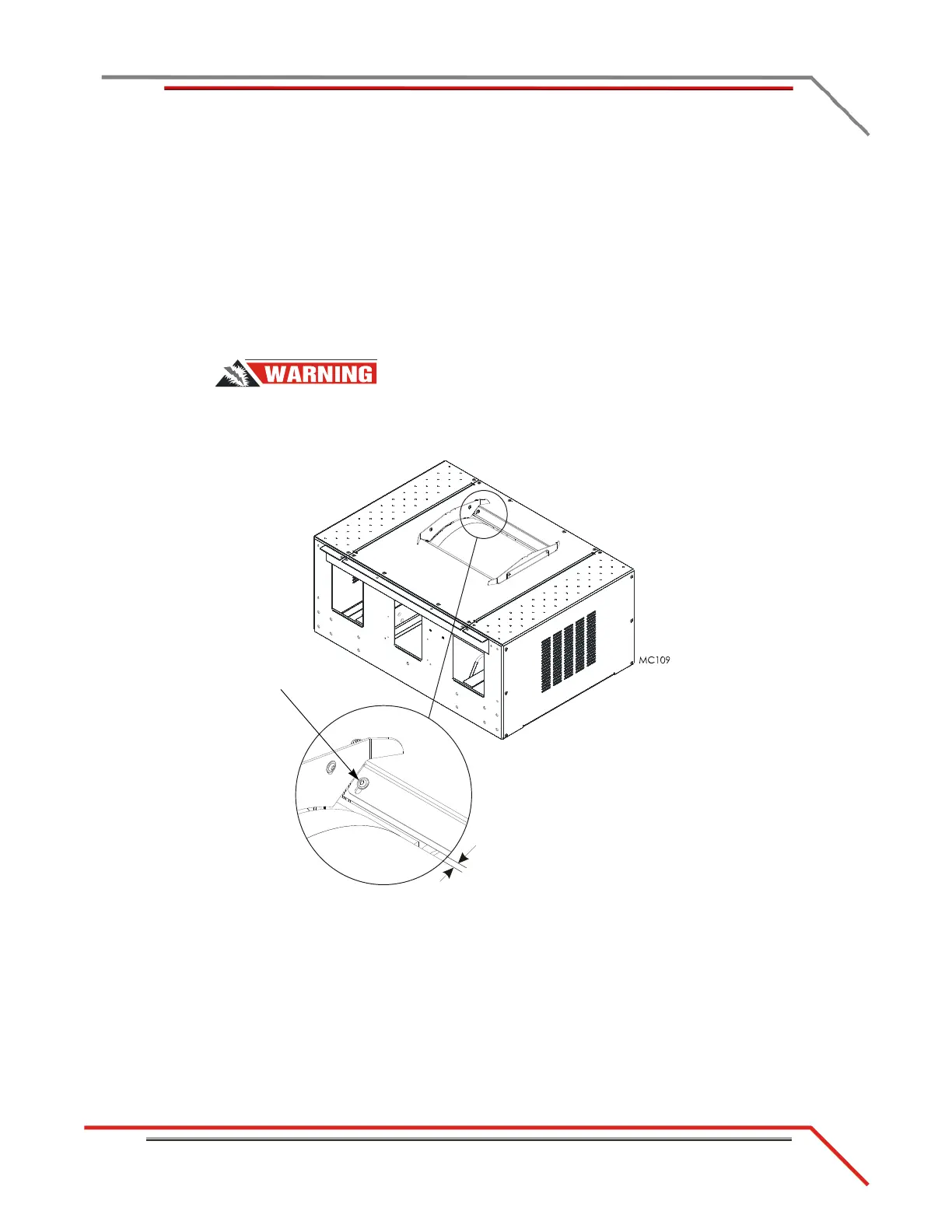

Figure C-3: Adjust the EEC Finger Guard Clearance
adjust clearance
adjust screw
