ACCESSORIES
Air Brake
Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR BRAKE
The air brake comes installed and ready to use. You will need to provide an air hose
nipple (1/4-inch NPT) to connect your clean, dry shop air supply (60 psi, 415
kilopascal, max constant line pressure) to the dynamometer. Once air pressure is
connected and the air brake cable is routed, the air brake is ready to use.

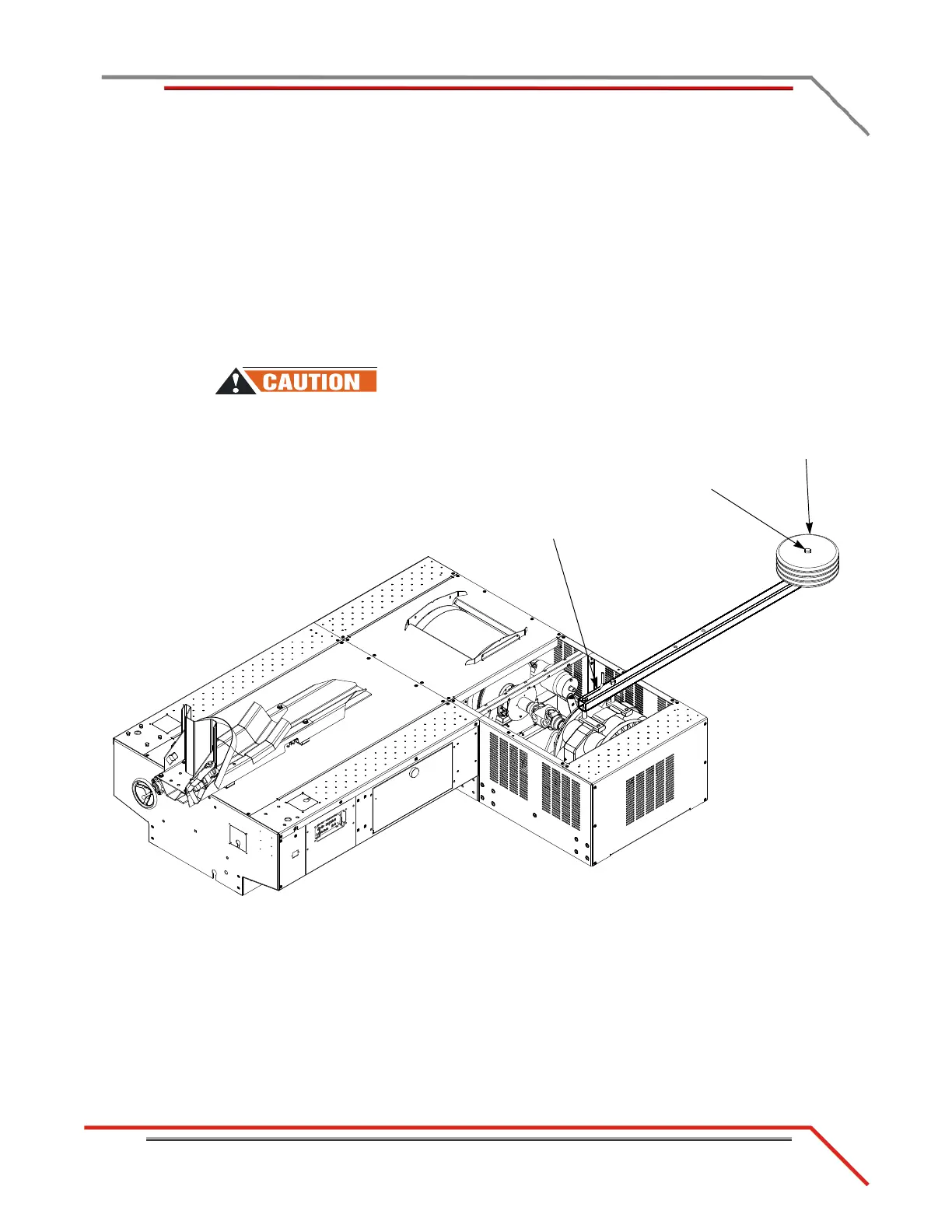

Figure 3-6: Connect Your Shop Air Supply
PARTS LIST
The following table lists all of the parts included in the Air Brake (P/N 63920005)
Installation kit. Check your kit against the parts listed to make sure you have received
all of the parts. If any part is missing, contact Dynojet Technical Support.
part number description quantity
21222201 Brake Caliper Stop 1
21222601 Brake Adjusting Shim 1
21622201 Brake Bracket 1
32904080 Hairpin Cotter, 7/16-3/4” shaft size 3
32920128 Clevis Pin, 5/8 x 4” 2
36488100 Nut, 3/8-16, Nylock 1
36581270 Bolt, 3/8-16 x 3/4”, with Taper lock 2
36585670 Bolt, 3/8-16 x 3-1/2”, Hex 1
36820840 Bolt, 5/8-11 x 1, Hex 2
36952100 Washer, 5/8”, splitlock, stl 2
37620844 Woodruff Key, 1/2 x 2-3/4”, #1622-1 1
63920004 Air Brake Assembly 1
63990002 Rotor/Taper Lock Assembly with Hub and Key 1
BR102-055 Brake Spring 1
DM150-002-007 Washer, 5/16”, Flat 3
connect shop air supply
