ACCESSORIES
Extended Carriage
Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
3-31

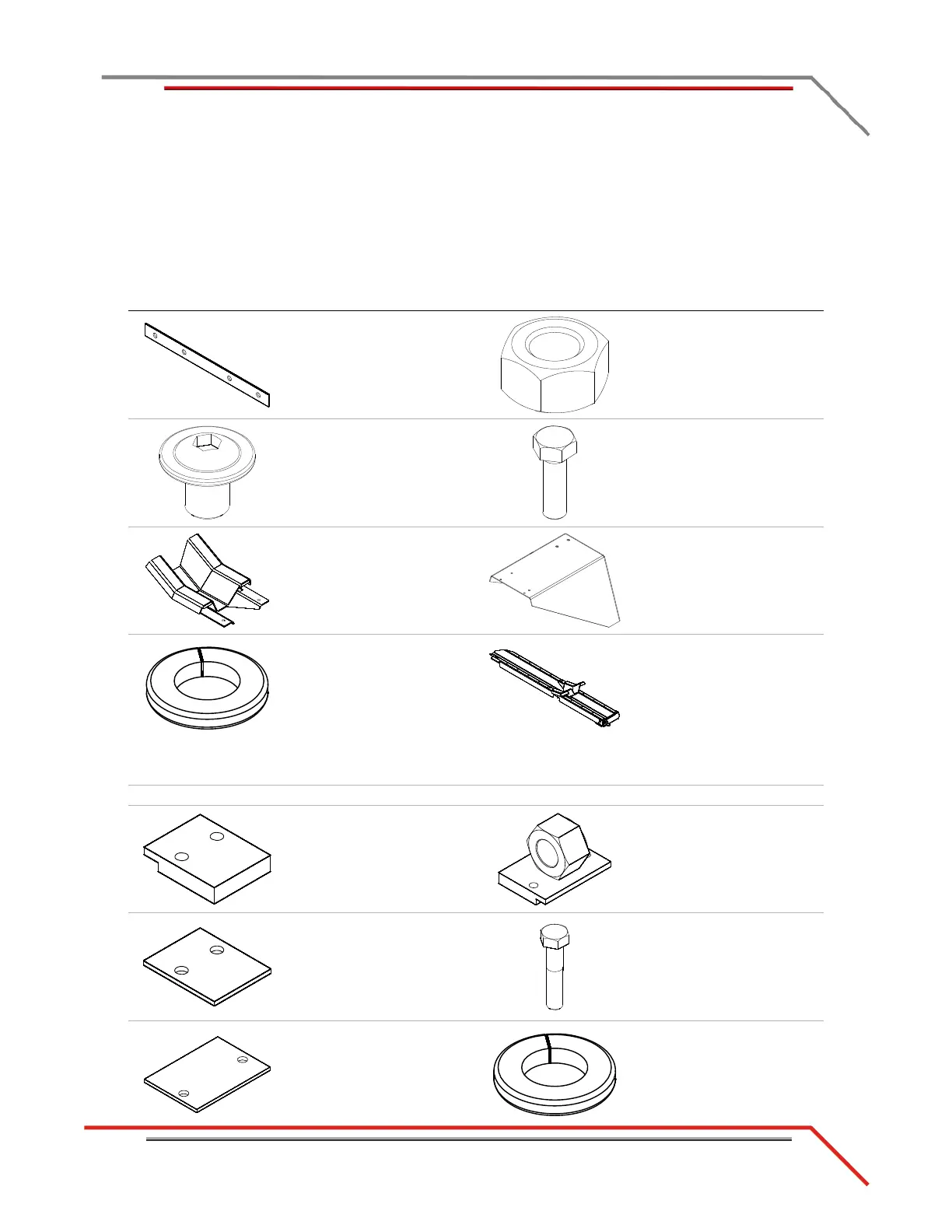

INSTALLING THE EXTENDED CARRIAGE SUPPORT BRACKET
1 Loosely attach the extended carriage support bracket to the front of the dyno
using six 3/8-16 x 1/2-inch button-head flange allen bolts.
2 Using a straight edge, line the top of the support bracket with the top of the dyno
chassis.
3 Tighten all six screws.
Figure 3-36: Install the Extended Carriage Support Bracket
extended carriage
support bracket
